Каталог запасных частей к технике: DongFeng 504G3. Rear Axle (A)
1
1
2
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31

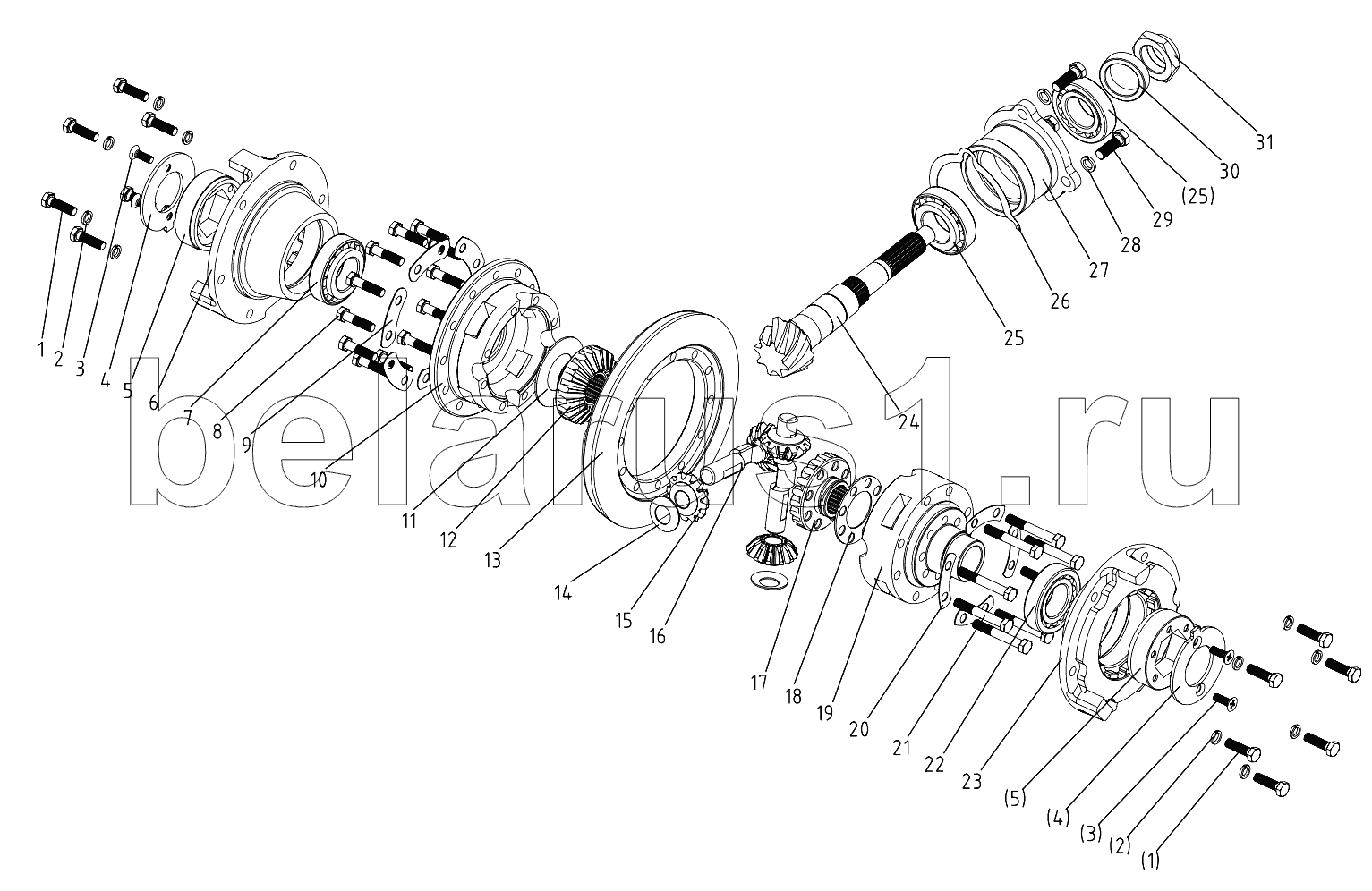

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T5783-2000-M10x35 | Hex. head bolt M10x35 | |
| 2 | GB/T93-1987-10 | Spring lock washer 10 | |
| 3 | GB/T819-2000-M8x25 | Countersunk screw M8x25 | |
| 4 | 450.38.121 | Fixing plate | |
| 5 | 450.38.122 | Adjusting nut | |
| 6 | 504G3.38.105 | Differential case cover 1 | |
| 7 | GB/T297-1994-32011 | Tapered roller bearing 32011 | |
| 8 | GB/T5785-2000-M10x1x30 | Fine pitch hex. head bolt M10x1x30 | |
| 9 | 450.38.148 | Lock piece | |
| 10 | 650.38.168 | Differential right housing | |
| 11 | 650.38.162 | Shim,half shaft gear I | |
| 12 | 650.38.169 | Right half shaft gear | |
| 13 | 504G3.38.113 | Spiral-bevel gear | |
| 14 | 650.38.164 | Planet gear shim | |
| 15 | 650.38.166 | Planet gear | |
| 16 | 650.38.165 | Planet gear shaft | |
| 17 | 650.38.161 | Left half shaft gear | |
| 18 | 650.38.170 | Shim,half shaft gear II | |
| 19 | 650.38.163 | Differential left housing | |
| 20 | 450.38.140 | Lock piece | |
| 21 | GB/T5782-2000-M10x70 | Bolt M10x70 | |
| 22 | GB/T297-1994-32210 | Ball bearing 32210 | |
| 23 | 504G3.38.107 | Differential case cover 2 | |
| 24 | 504G3.38.114-3 | Spiral-bevel pinion | |
| 25 | GB/T297-1994-32208 | Ball bearing 32208 | |
| 26 | 504G3.38.102 | Adjust shims | |
| 27 | 504G3.38.115-1 | Bearing seat spiral bevel pinion | |
| 28 | GB/T93-1987-12 | Spring lock washer 12 | |
| 29 | GB/T5783-2000-M12x35 | Hex. head bolt M12x35 | |
| 30 | 504G3.38.118 | Clapboard | |
| 31 | 504G3.38.116 | Lock nut |
