Каталог запасных частей к технике: DongFeng 504G3. Hydraulic Power Lift (D)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53

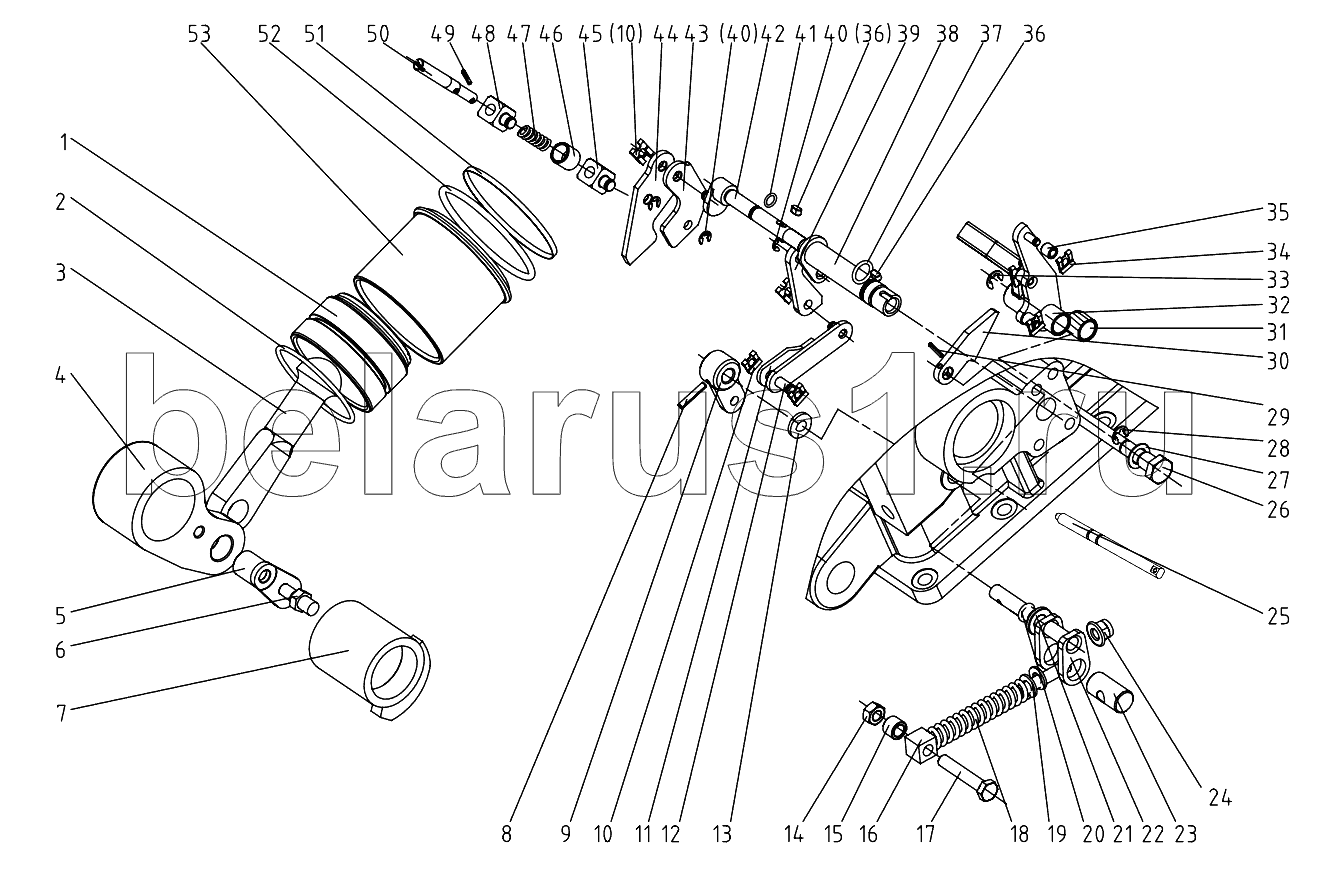

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 504G3.55.039 | Piston | |
| 2 | 504G3.55.168 | Piston seal 90x75x11.4 | |
| 3 | 504G3.55.170 | Piston push rod | |
| 4 | 504G3.55.172-1 | Inner lift arm | |
| 5 | 504G3.55.132 | Pin assembly | |
| 6 | 504G3.55.133 | Hex. head bolt | |
| 7 | 504G3.55.026 | Cam | |
| 8 | GB/T879.1-2000-5x28 | Pin5x28 | |
| 9 | 504G3.55.035 | Rocker | |
| 10 | 504G3.55.104 | Baffle 8 | |
| 11 | 504G3.55.012 | Linking pole | |
| 12 | 504G3.55.160 | Pin shaft | |
| 13 | 504G3.55.143 | Plain washer 12 | |
| 14 | GB/T6171-2000-M10x1.25 | Hex. nut M10x1.25 | |
| 15 | 504G3.55.116 | Spacer sleeve | |
| 16 | 504G3.55.235 | Sping seat | |
| 17 | GB/T5785-2000-M10x1.25x55 | Hex. head bolt M10x1.25x55 | |
| 18 | 504G3.55.236 | Spring | |
| 19 | GB/T97.1-2002-10 | Plain washer 10 | |
| 20 | GB/T3452.1-1996-11.2x2.65 | O-ring seal 11.2x2.65 | |
| 21 | 504G3.55.152 | Spacer sleeve | |
| 22 | 504G3.55.055 | Transfer pole | |
| 23 | 504G3.55.237 | Pin shaft | |
| 24 | GB/T6183.1-2000-M10 | Hex. nut M10 | |
| 25 | 504G3.55.276-1 | Joy stick shaft | |
| 26 | 504G3.55.150 | Joy stick shaft | |
| 27 | JB-FT-CU-14 | Combination washer 14 | |
| 28 | GB/T896-1986 | Split circlip 9 | |
| 29 | GB/T879-2000 | Pin3x20 | |
| 30 | 504G3.55.108-1 | Hydraulic power lift control handle | |
| 31 | 504G3.55.204 | needle bearingHK1210 | |
| 32 | 504G3.55.057 | Joy stick assembly | |
| 33 | GB/T896-1986-8 | Openings Circlip 8 | |
| 34 | 504G3.55.290 | Baffle 6 | |
| 35 | 504G3.55.291 | Idler wheel | |
| 36 | GB/T1096-1979-5x10 | Key 5x10 | |
| 37 | GB/T3452.1-1996-15.5x2.65 | O-ring seal 15.5x2.65 | |
| 38 | 504G3.55.028 | Joy stick assembly | |
| 39 | 504G3.55.106 | Administer | |
| 40 | GB/T896-1986-6 | Split circlip 6 | |
| 41 | GB/T3452.1-1996-8.75x1.80 | O-ring seal 8.75x1.80 | |
| 42 | 504G3.55.136 | Joy stick | |
| 43 | 504G3.55.051 | Linkage plate assembly | |
| 44 | 504G3.55.212 | Linkage plate | |
| 45 | 504G3.55.210 | Link | |
| 46 | 504G3.55.211 | Spring seat | |
| 47 | 504G3.55.213 | Spring | |
| 48 | 504G3.55.214 | Link | |
| 49 | GB/T897.1-2000-2.5x12 | Pin2.5x12 | |
| 50 | 504G3.55.215 | Linking shaft | |
| 51 | 504G3.55.162 | Support ring | |
| 52 | GB/T3452.1-1996-95x5.30 | O-ring seal 95x5.30 | |
| 53 | 504G3.55.163 | Cylinder |
