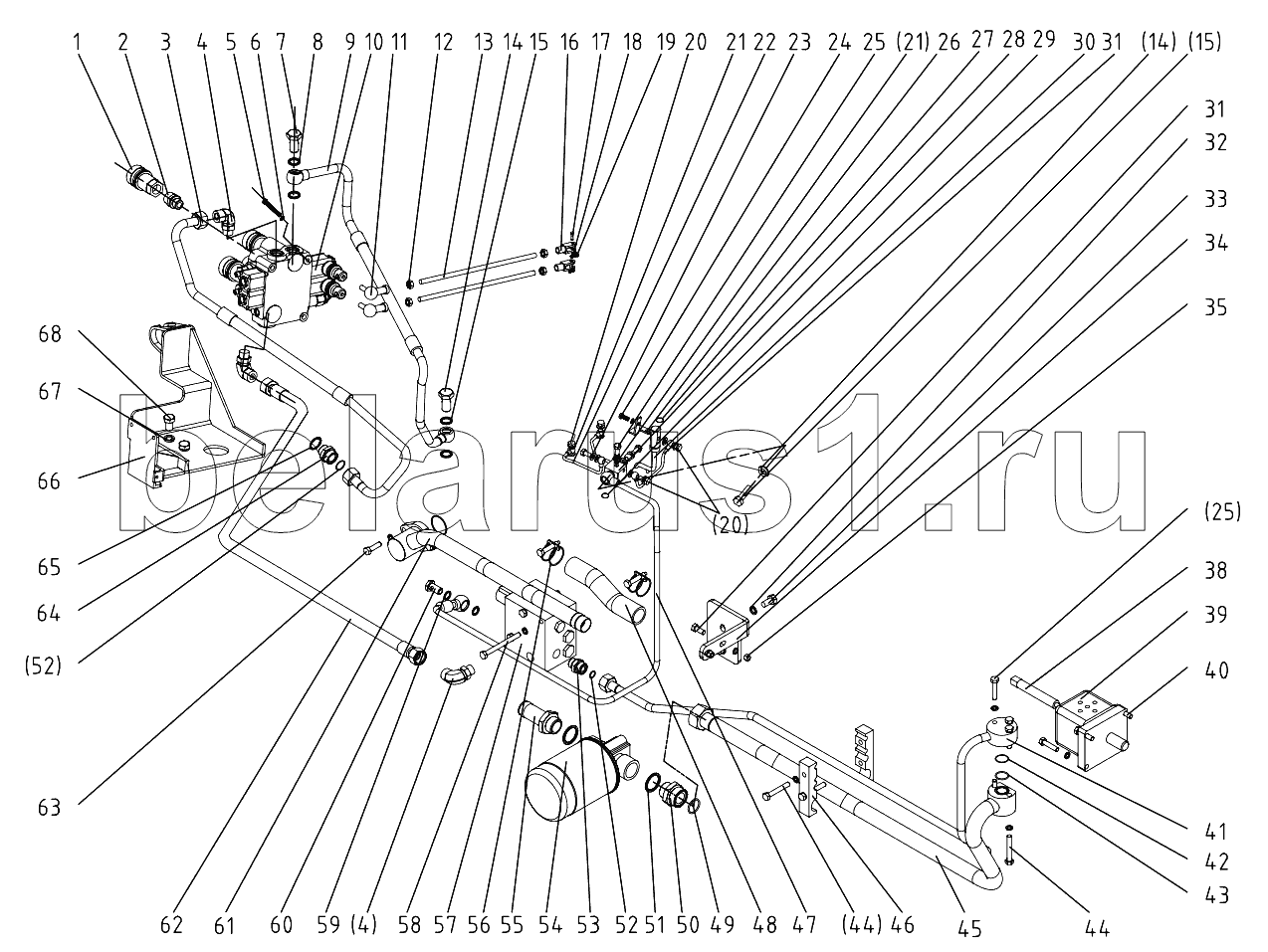

Каталог запасных частей к технике: DongFeng 504G3. Hydraulic Lifting Pipeline Assembly
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
20
21
21
22
23
24
25
25
26
27
28
29
29
29
29
30
31
31
32
33
34
35
38
39
40
41
41
42
43
44
44
45
46
47
48
49
50
51
52
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Quick change NPT1/2'' | Quick change NPT1/2'' | |
| 2 | 504G3-3.58A.101 | Straight joint | |
| 3 | 504G3-3.58A.016 | Inlet pipe hose | |
| 4 | 554-3.58Е.035 | Direction adjust Right-angle joint | |
| 5 | GB/T5782-2000-М6х55 | Hex. head bolt М6х55 | |
| 6 | GB/T93-1987-6 | Spring lock washer 6 | |
| 7 | JB/T6013-2000-М16х1.5 | Hollow bolt M16x1.5 | |
| 8 | JB-FT-CU-16 | Copper washer 16 | |
| 9 | 504G3-3.58A.015 | Return pipe hose | |
| 10 | ZDa4a-F15L-T/00-1 | Sandwich Multiole Control Valve | |
| 11 | GB/T304.2-2002 | Knuckle bearing SQ8-RS | |
| 12 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 13 | 504G3-3.58.102 | Connecting rod | |
| 14 | JB/T6013-2000-M18x1.5 | Hollow bolt M18x1.5 | |
| 15 | JB-FT-CU-18 | Combination washer 18 | |
| 16 | 504G3.55A.141 | Fork | |
| 17 | GB/T882-1986-B5x22 | Clevis pin with head B5x22 | |
| 18 | GB/T91-2000-2x16 | Split pin 2x16 | |
| 19 | GB/T97.1-2002-5 | Plain washer 5 | |
| 20 | JB/T6013-2000-M8x1 | Hollow bolt M8x1 | |
| 21 | JB-FT-CU-8 | Combination washer 8 | |
| 22 | 504G3.58.033-1 | The first pipe weldment | |
| 23 | 504G3.58.034-1 | The second pipe weldment | |
| 24 | GB/T5783-2000-M6x16 | Hex.head bolt M6x16 | |
| 25 | GB/T5783-2000-M8x45 | Hex. head bolt M8x45 | |
| 26 | 504G3.58.161 | Support board | |
| 27 | GB/T3452.1-1992-15.5x2.65 | O-ring seal 15.5x2.65 | |
| 28 | 504G3.58.170-1 | diffluent block | |
| 29 | GB/T3452.1-1992-14x1.8 | O-ring seal 14x1.8 | |
| 29 | 504G3.58.032-1 | Lubricating pipe weldment | |
| 30 | 504G3.58.035-1 | The third pipe weldment | |
| 31 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 32 | GB/T93-1987-10 | Spring lock washer 10 | |
| 33 | GB/T5783-2000-M10x20 | Hex.head bolt M10x20 | |
| 34 | 504G3.58.105 | Fix plank | |
| 35 | GB/T93-1987-8 | Spring lock washer 8 | |
| 38 | 550.58.101 | Fixup bolt | |
| 39 | CBN-F314 | Gear pump | |
| 40 | GB/T5783-2000-M8x35 | Hex. Head bolt M8x35 | |
| 41 | 504G3.58.023 | Outlet pipe assy of gear pump | |
| 41 | 504G3.58.023A | Outlet pipe assy of gear pump | |
| 42 | GB/T3452.1-1992-22.4x1.8 | O-ring seal 22.4x1.8 | |
| 43 | GB/T3452.1-1992-21.2x2.65 | O-ring seal 21.2x2.65 | |
| 44 | GB/T5783-2000-M8x55 | Hex. head bolt M8x55 | |
| 45 | 504G3.58.020 | Head inlet pipe assy of gear pump | |
| 46 | 504G3.58.106 | Pipe clamp | |
| 47 | 504G3.58.011-1 | Return hose | |
| 48 | 504G3.58.104-1 | Hose | |
| 49 | GB/T3452.1-1992-25x2.65 | O-ring seal 25x2.65 | |
| 50 | 804-6.58.109 | Filter tie-in(2) | |
| 51 | JB-FT-CU-30 | Copper washer 30 | |
| 52 | GB/T3452.1-1992-12.5x1.8 | O-ring seal 12.5x1.8 | |
| 53 | 504G3.58.108 | union nut(1) | |
| 54 | 804-6.58.025 | Filter | |
| 55 | 804-6.58.022 | Short linking pipe weldment | |
| 56 | JB/T8870-1999-(25-40) | Hoop (25-40) | |
| 57 | SL-DFLH-00 | Electrical control diverging valve | |
| 58 | GB/T5782-2000-M8x90 | Hex. head bolt M8x90 | |
| 59 | JB-FT-CU-10 | Washer 10 | |
| 60 | 320-3.80A.105 | Hollow bolt M10x1 | |
| 61 | 504G3.58.022 | Tail inlet pipe assy of gear pump | |
| 62 | 504G3-3.58A.014 | Inlet pipe hose | |
| 63 | GB/T5783-2000-M8x30 | Hex. head bolt M8x30 | |
| 64 | 504G3.58.109 | Union nut(2) | |
| 65 | JB-FT-CU-22 | Combination washer 22 | |
| 66 | 504G3-3.58.013A | Support board | |
| 67 | GB/T93-1987-12 | Spring lock washer 12 | |
| 68 | GB/T5783-2000-M12x20 | Hex. head bolt M12x20 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
