Каталог запасных частей к технике: DongFeng 504G3. Hood and Panel (B)
1
1
2
2
2
3
3
4
4
5
5
5
6
6
6
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

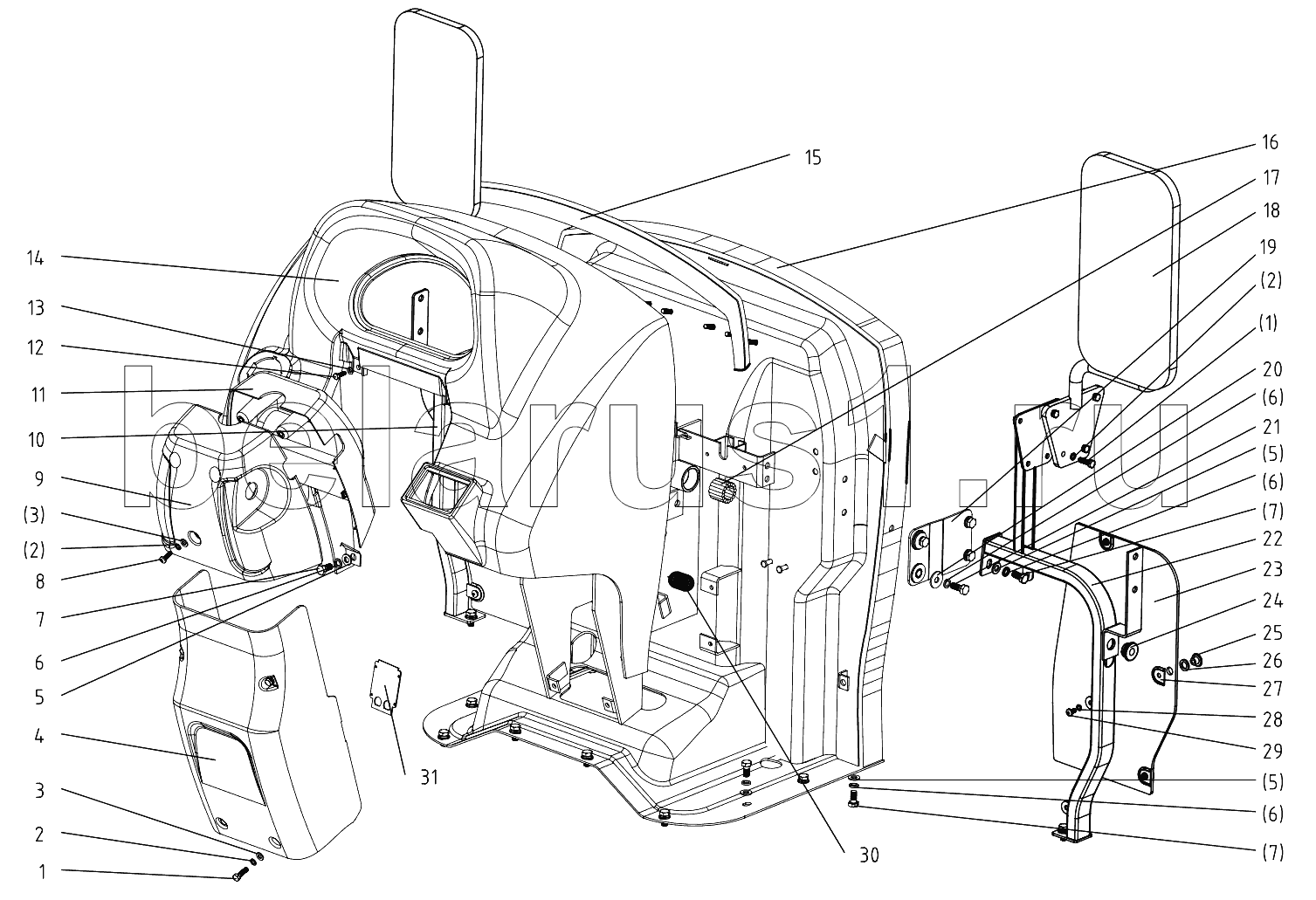

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T5783-2000-M6x20 | Hex.head bolt M6x20 | |
| 2 | GB/T93-1987-6 | Spring lock washer 6 | |
| 3 | GB/T97.1-2002-6 | Plain washer 6 | |
| 4 | 504G3.47.103 | Redirector pedestal mantle | |
| 4 | 504G3-E.45.103 | Redirector pedestal mantle | |
| 5 | GB/T97.1-2002-8 | Plain washer 8 | |
| 6 | GB/T93-1987-8 | Spring lock washer 8 | |
| 7 | GB/T5783-2000-M8x16 | Hex. head bolt M8x16 | |
| 8 | GB/T818-2000-M6x16 | Philips pan head screw M6x16 | |
| 9 | 504G3-3.47.103 | Redirector back mantle | |
| 10 | 504G3.47.016-2 | Left frame clsss weldment | |
| 11 | 504G3.47.014 | Redirector forward mantle | |
| 12 | GB/T818-2000-M5x16 | Hex. head bolt M12x40 | |
| 13 | GB/T97.1-2002-5 | Plain washer 5 | |
| 14 | 504G3.47.101 | Engine Hood | |
| 15 | YC0542020442 | Stamping steel ribbon | |
| 16 | 504G3-3.47.011-1 | Hood frame clsss weldment | |
| 17 | GB/T5846-1989-K25x31x25 | Needle bearing K25x31x25 | |
| 18 | A3-1 | Rearview mirror | |
| 19 | 504G3.47.025 | Joint plate | |
| 20 | GB/T96-1985-8 | Plain washer 8 | |
| 21 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 22 | 504G3.47.022-2 | Right frame clsss weldment | |
| 23 | 504G3.47.228 | Windshield | |
| 24 | 504G3.51.102 | Rubber sheath | |
| 25 | 504G3.47.225 | Hex. Nut M5 | |
| 26 | 504G3.47.226 | Rubber washer 5 | |
| 27 | 504G3.47.227 | Plastic washer 5 | |
| 28 | GB/T93-1987-5 | Spring lock washer 5 | |
| 29 | GB/T818-2000-M5x8 | Philips pan head screw M5x8 | |
| 30 | 504G3.47.108 | wiring harness rubber cover | |
| 31 | 504G3-E.45.029 | Rear sealplate |
