Каталог запасных частей к технике: DongFeng 504G3. Front Wheel Drive Axle (Middle)
1
1
2
3
4
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
23
24
25
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

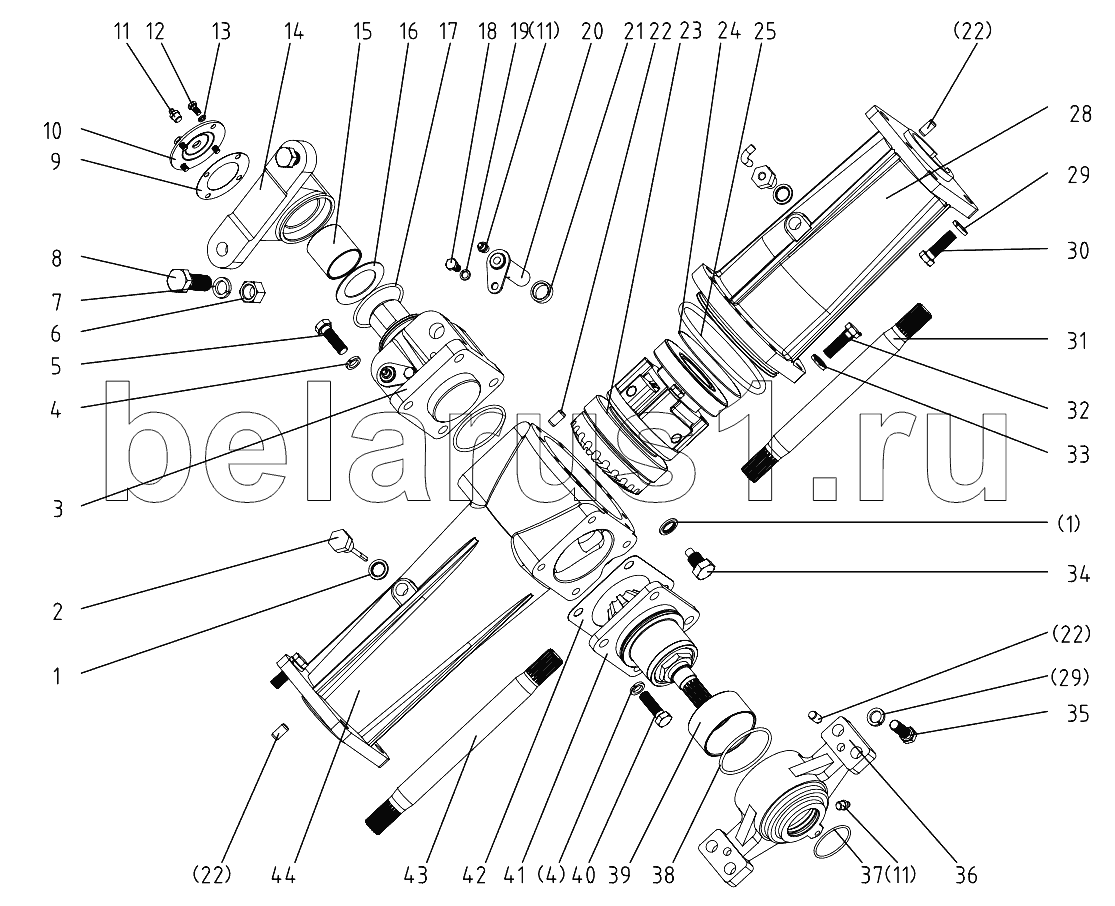

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | JB-FT-CU-16 | Copper washer 16 | |
| 2 | 304.31.013-1 | Oil dipstick | |
| 3 | 504G3.31.121 | Cylinder pedestal | |
| 4 | GB/T93-1987-12 | Spring lock washer 12 | |
| 5 | GB/T5786-2000-M12x1.5x40 | Hex. head bolt М12х1.5x40 | |
| 6 | GB/T6170-2000-M16 | Hex .nut M16 | |
| 7 | GB/T93-1987-16 | Spring Lock washer16 | |
| 8 | GB/T27-1988-M16x65 | Hex. head bolt M16x65 | |
| 9 | 304.31.122 | End cover gasket | |
| 10 | 304.31.019 | End cover of front pedestal | |
| 11 | JB/T7940.1-1995-M10x1 | Grease cup M10x1 | |
| 12 | GB/T5783-2000-M6x12 | Hex. head bolt M6x12 | |
| 13 | GB/T93-1987-6 | Spring lock washer 6 | |
| 14 | 504G3.31.207 | Front pedestal | |
| 15 | 304.31.219-1 | Front pedestal bush | |
| 16 | 304.31.123-1 | Shims for front swing axle | |
| 17 | GB/T3452.1-1992-65x2.65 | O-ring seal 65x2.65 | |
| 18 | GB/T5783-2000-M8x16 | Hex. head bolt M8x16 | |
| 19 | GB/T93-1987-8 | Spring lock washer 8 | |
| 20 | 504G3.31.013 | Pin shaft | |
| 21 | 504G3.31.125 | Spacer | |
| 22 | GB/T119.1-2000-B10x20 | Straight pin В 10x20 | |
| 23 | 504G3.31.012 | Differential assembly | |
| 24 | 504G3.31.130/131/132 | Tab for driven bevel gear | |
| 25 | GB/T3452.1-1992-132x2.65 | O-ring seal 132x2.65 | |
| 26 | 304.31.119-1 | Vent pipe | |
| 27 | 304.31.118-1 | Vent plug | |
| 28 | 504G3.31.112 | Right half shaft housing | |
| 29 | GB/T93-1987-14 | Spring lock washer 14 | |
| 30 | GB/T5786-2000-M14x1.5x40 | Hex. Head bolt М14х1.5x40 | |
| 31 | 504G3.31.114 | Right half shaft | |
| 32 | GB/T5783-2000-M10x40 | Hex. head bolt M10x40 | |
| 33 | GB/T93-1987-10 | Spring lock washer 10 | |
| 34 | 200.38.024 | Oil drain plug | |
| 35 | GB/T5783-2000-M14x45 | Hex.bolt M14x45 | |
| 36 | 504G3.31.212 | Rear pedestal | |
| 37 | GB/T3452.1-1992-45x2.65 | O-ring seal 45x2.65 | |
| 38 | GB/T3452.1-1992-69x2.65 | O-ring seal 69x2.65 | |
| 39 | 304.31.221-1 | Rear pedestal bush | |
| 40 | GB/T5786-2000-M12x1.5x30 | Hex. head bolt M12x1.5x30 | |
| 41 | 504G3.31.016 | Bevel drive pinion assembly | |
| 42 | 504G3.31.140/141/142 | Shims for bearing seat | |
| 43 | 504G3.31.111 | Left half shaft | |
| 44 | 504G3.31.110 | Left half shaft housing |
