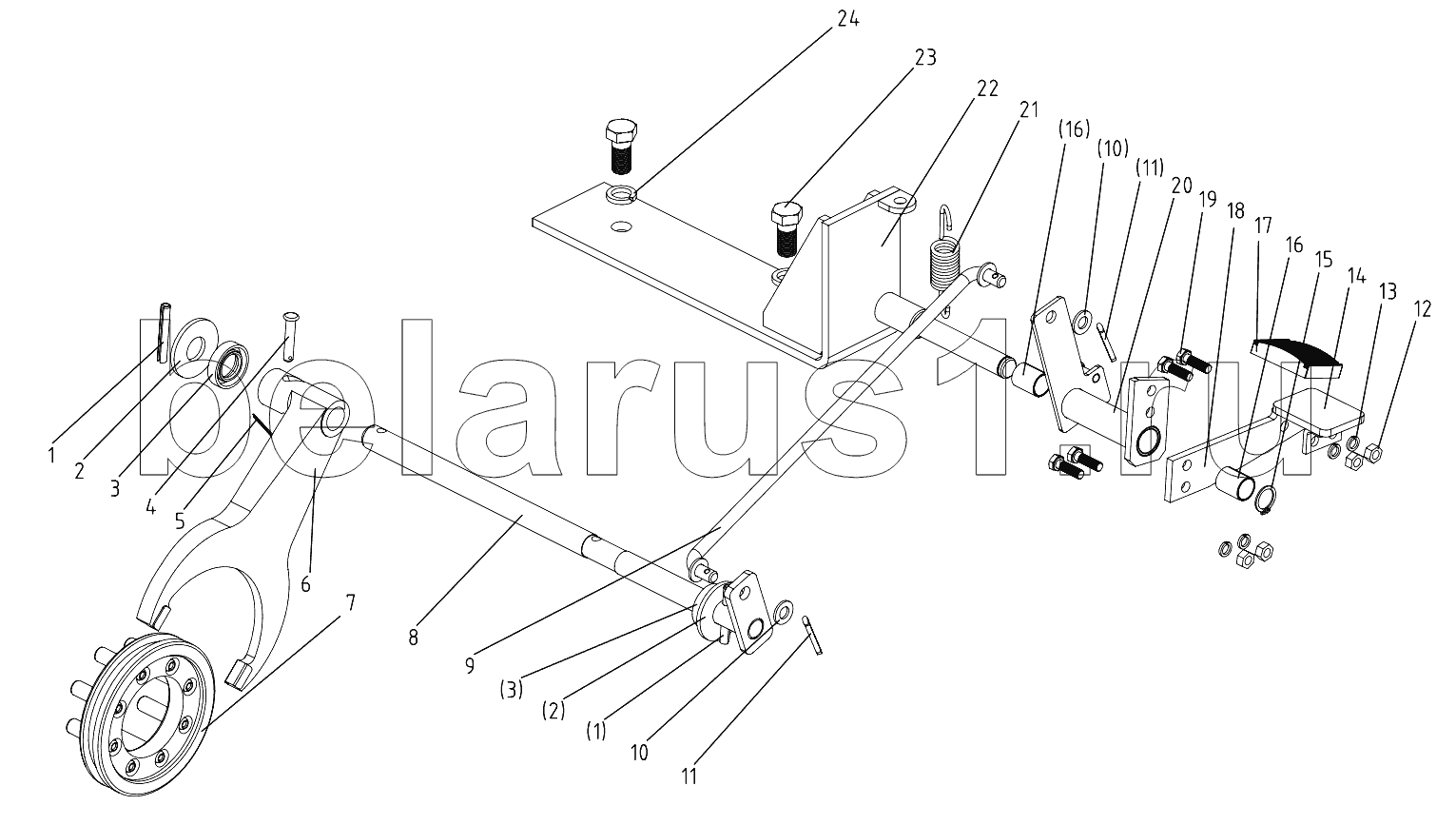

Каталог запасных частей к технике: DongFeng 504G3. Differential Lock
1
1
2
2
3
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
16
17
18
18
18
18
19
20
21
22
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T879.1-2000-6x40 | Round pin 6x40 | |
| 2 | 504G3.38.104 | Bead flange | |
| 3 | GB/T9877.1-1988-FB16x30x7 | Oil seal FB 16x30x7 | |
| 4 | GB/T882-1986-6x30 | Clevis pin with head В6х30 | |
| 5 | GB/T4329-2001-1.8x30 | Pin 1.8x30 | |
| 6 | 504G3.38.106 | Shift folk,differential lock | |
| 7 | 450.38.022 | Differential lock | |
| 8 | 504G3.38.010 | Shift folk shaft,differential lock | |
| 9 | 504G3.38.011 | Pole | |
| 10 | GB/T97.1-2002-8 | Plain washer 8 | |
| 11 | GB/T91-2000-3.2x18 | Split pin 3.2x25 | |
| 12 | GB/T6170-2000-M6 | Hex. Nut M6 | |
| 13 | GB/T93-1987-6 | Spring lock washer 6 | |
| 14 | 504G3.38.017 | Control pedal,differential lock | |
| 15 | GB/T894.1-1986-14 | Circlip 14 | |
| 16 | 504G3.38.132 | Bush (1420) | |
| 17 | 504G3.38.103 | Rubber coating for control step | |
| 18 | 504G3-3.38.101 | Control pedal,differential lock | |
| 18 | 504G3-E.38.101 | Control pedal,differential lock | |
| 19 | GB/T5783-2000-M6x20 | Hex.head bolt M6x20 | |
| 20 | 504G3-3.38.018 | Control lever,differential lock | |
| 21 | 504G3.38.108 | Return spring | |
| 22 | 504G3-3.38.015 | Mounting bracket | |
| 23 | GB/T5783-2000-M12x25 | Hex. head bolt M12x25 | |
| 24 | GB/T93-1987-12 | Spring lock washer 12 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
