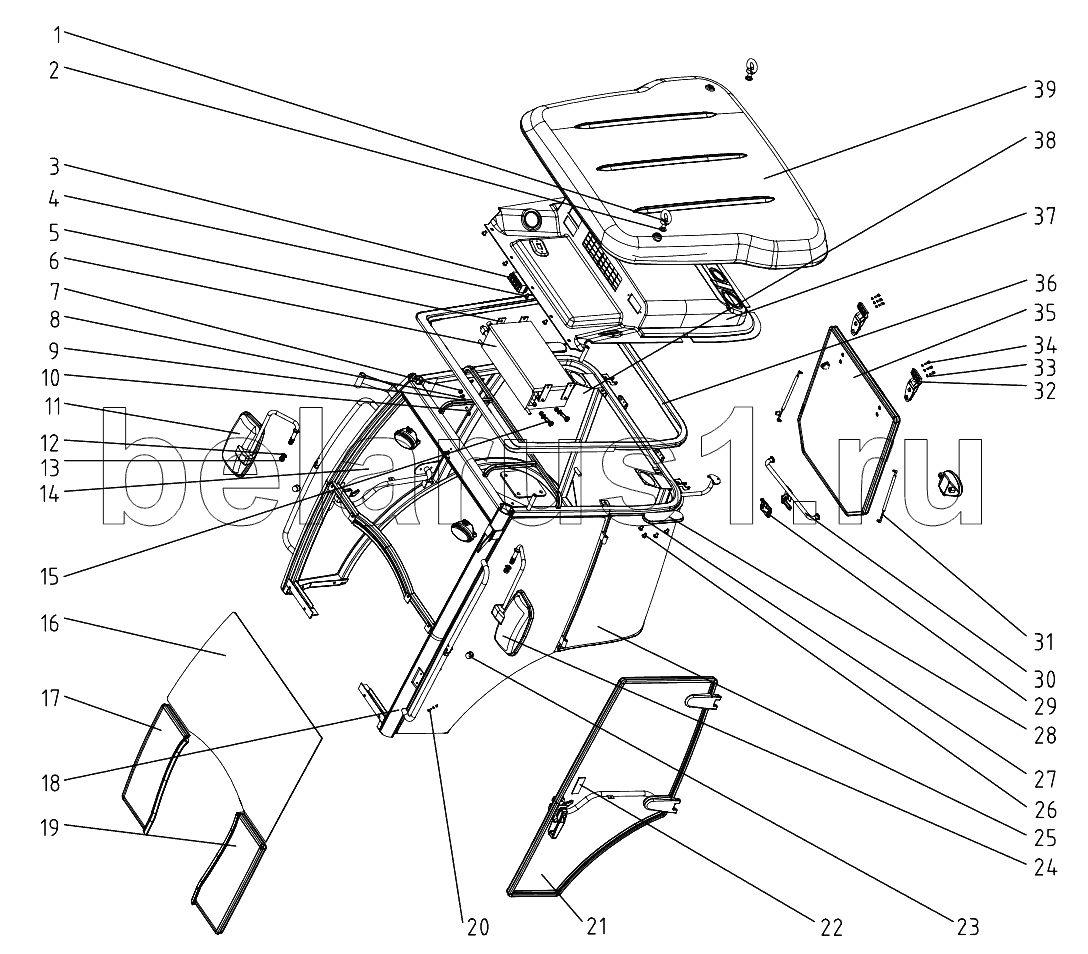

Каталог запасных частей к технике: DongFeng 504G3. Cab Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 504G3.45.223 | Washer | |
| 2 | GB/T825-1988 | Lifting eye bolt M12 | |
| 3 | 504G3.48A.102 | Light switch | |
| 4 | Set screw | Set screw | |
| 5 | 550-1.45A.220 | The steel plate fixed air conditioning | |
| 6 | 550-1.45A.059 | Air conditioning | |
| 7 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 8 | GB/T93-1987-8 | Spring lock washer 8 | |
| 9 | GB/T97.1-2002-8 | Plain washer 8 | |
| 10 | GB/T5783-2000-M8x35 | Hex. Head bolt M8x35 | |
| 11 | 550-1.45A.045 | Rearview mirror assembly | |
| 12 | GB/T97.1-2002-10 | Plain washer 10 | |
| 13 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 14 | 504G3.45.042-1 | Right door assembly | |
| 15 | GB/T5783-2000-M8x35 | Hex. Head bolt M8x35 | |
| 16 | 504G3-E.45.401 | Front window | |
| 17 | 504G3-E.45.403 | Front right windscreen | |
| 18 | 504G3-E.45.050 | Cab assembly weldment | |
| 19 | 504G3-E.45.402 | Front left windscreen | |
| 20 | GB/T5783-2000-M8x40 | Hex. head bolt M8x40 | |
| 21 | 504G3.45.041-1 | Left door assembly | |
| 22 | 550-1.45A.223 | Door lock warning sign | |
| 23 | 504G3.45.368 | Rubber sheath | |
| 24 | 550-1.45A.052 | Rearview mirror assembly | |
| 25 | 504G3.45.211 | The left side rear window | |
| 26 | GB/T845-1985-ST4.8x16 | Self tapping screw ST4.8x16 | |
| 27 | 504G3.45.364 | Vent cover plate | |
| 28 | 504G3.45.365 | Vent the sponge | |
| 29 | 550-1.45A.216 | Rear window lock baffle | |
| 30 | 550-1.45A.049 | Rear window lock assembly | |
| 31 | 504G3.45.051 | Gas spring | |
| 32 | 550-1.45A.055 | Air condtioning air inlet | |
| 33 | GB/T93-1987-6 | Spring lock washer 6 | |
| 34 | GB/T70.1-2000-M6x20 | Nut bolt M6x20 | |
| 35 | 504G3.45.215 | Rear window | |
| 36 | 504G3.45.221 | Plafond sponge | |
| 37 | 504G3.45.056 | Top decorate combination | |
| 38 | 504G3.45.218 | The right side rear window | |
| 39 | 504G3.45.091 | Top |
