Каталог запасных частей к технике: DongFeng 504G3. PTO 504G3.41.001
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
19
20
20
20
21
22
22
23
24
25
26
27
28
28
29
30
31
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
48
49
49
50
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

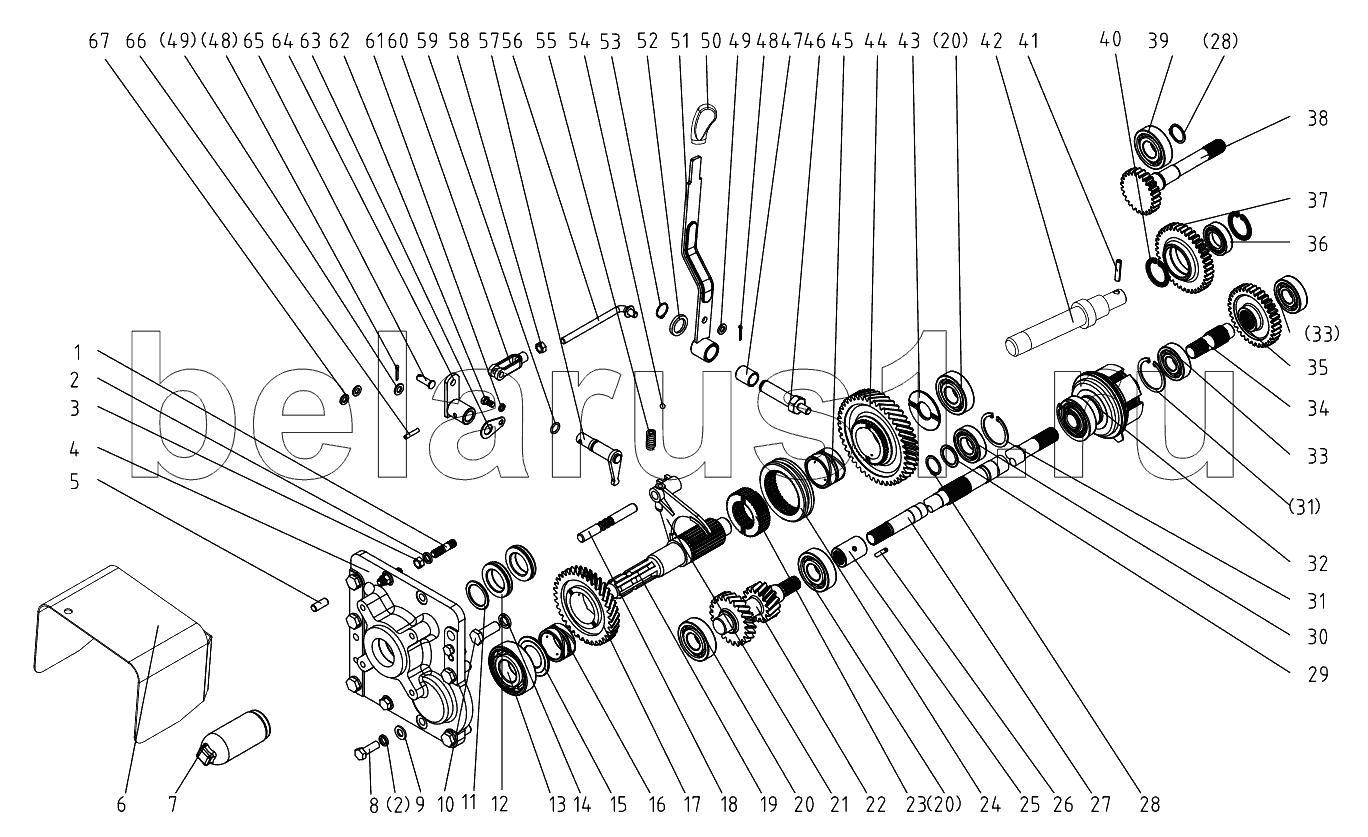

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T899-1998-M12x1.25x35 | Bolt AM12-M12x1.25x35 | |
| 2 | GB/T93-1987-12 | Spring lock washer 12 | |
| 3 | GB/T6171-2000-M12x1.25 | Hex. nut М12х1.25 | |
| 4 | 504G3.41.119 | Rear cover | |
| 5 | GB/T119.1-2000-B12x22 | Straight pin В 12x22 | |
| 6 | 504G3.41.178 | PTO shaft safety cover | |
| 7 | 450.38.120-1 | PTO slaft safety cover | |
| 8 | GB/T97.1-2002-12 | Plain washer 12 | |
| 9 | GB/T5783-2000-M12x35 | Hex. head bolt M12x35 | |
| 10 | GB/T5783-2000-M16x45 | Hex.head bolt M16x45 | |
| 11 | 300.41B.125 | Oil seal blocking ring | |
| 12 | GB13871.1-2007 | Circlip FB40x62x8 | |
| 13 | GB/T276-1994-6308 | Ball bearing 6308 | |
| 14 | GB/T93-1987-16 | Spring Lock washer16 | |
| 15 | 504G3.41.116 | Big clapboard | |
| 16 | 504G3.41.115 | Bush II | |
| 17 | 504G3.41.114A | PTO driven gear II | |
| 17 | 504G3.41.114 | PTO driven gear II | |
| 18 | 504G3.41.108 | PTO shift fork shaft | |
| 19 | 504G3.41.118 | PTO shaft | |
| 19 | 504G3.41.118A | PTO shaft | |
| 20 | GB/T283-1994-NJ306E | Ball bearing NJ306E | |
| 21 | 504G3.41.131 | PTO shift fork | |
| 22 | 504G3.41.120 | Driving gear shaft | |
| 22 | 504G3.41.120A | Driving gear shaft | |
| 23 | 504G3.41.111 | Sliding sleeve seat | |
| 24 | 504G3.41.110 | Sliding sleeve | |
| 25 | 504G3.31.121 | Cylinder pedestal | |
| 26 | GB/T879.1-2000-6x35 | Slotted spring pin 6x35 | |
| 27 | 504G3.41.122 | PTO hydraulic clutch driven shaft | |
| 28 | 504G3.63.102 | Circlip for shaft 30 | |
| 29 | 504G3.29.108 | Spacing collar | |
| 30 | GB/T276-1994-6206 | Ball bearing 6206 | |
| 31 | GB/T893.1-1986-62 | Circlip for shaft 62 | |
| 32 | 504G3.41.013 | Hydraulic clutch | |
| 33 | GB/T276-1994-6305 | Ball bearing 6305 | |
| 34 | 504G3.41.125 | PTO hydraulic clutch initiative shaft | |
| 35 | 504G3.41.126 | PTO transmission driven gear | |
| 36 | 504G3.41.128 | PTO transmission middle ball bearing | |
| 37 | 504G3.41.102-2 | PTO transmission middle gear | |
| 38 | 504G3.41.101 | PTO initiative shaft | |
| 39 | GB/T283-1994-NUP306E | Ball bearing NUP 306E | |
| 40 | GB/T305-1998-80/86.6 | Snap ring 80/86.6 | |
| 41 | GB/T879.1-2000-8x45 | Dowel pin 8x45 | |
| 42 | 504G3.41.103-2 | PTO middle shaft | |
| 43 | 504G3.41.105 | Small clapboard | |
| 44 | 504G3.41.107 | PTO driven gear I | |
| 45 | 504G3.41.106 | Bush I | |
| 46 | 504G3.37.154 | Support,secondary change speed | |
| 47 | 504G3.43.115 | Bush (2030) | |
| 48 | GB/T91-2000-3.2х18 | Split pin 3.2x18 | |
| 49 | GB/T97.1-2002-10 | Plain washer 10 | |
| 50 | 504G3.41.104A | PTO control handle | |
| 50 | 504G3.41.104 | PTO control handle | |
| 51 | 504G3.41.026-1 | PTO control lever | |
| 52 | GB/T97.1-2002-20 | Plain washer 20 | |
| 53 | GB/T894.1-1986-20 | Circlip for shaft 20 | |
| 54 | GB/T308-2002-8 | Steel ball 8 | |
| 55 | 254G3.37.163 | Positioning spring | |
| 56 | 504G3.41.011 | Pull rod | |
| 57 | 504G3.41.015 | PTO dial rod | |
| 58 | GB/T6171-2000-М10x1 | Hex. thin slotted nut M10x1 | |
| 59 | GB/T3452.1-1992-15x2.65G | O-ring seal 15x2.65G | |
| 60 | 300.21А.148 | Rod clevis | |
| 61 | GB/T93-1987-8 | Spring lock washer 8 | |
| 62 | GB/T5783-2000-М8х16 | Hex. head bolt M8x16 | |
| 63 | 504G3.37.168 | Baffle | |
| 64 | 504G3.41.016 | Rocker | |
| 65 | GB/T880-1986-B10x30 | Pin shaft В10х30 | |
| 66 | GB/T879.1-2000-6x30 | Pin 6x30 | |
| 67 | GB/T 93-1987-12 | Spring lock washer 12 |
