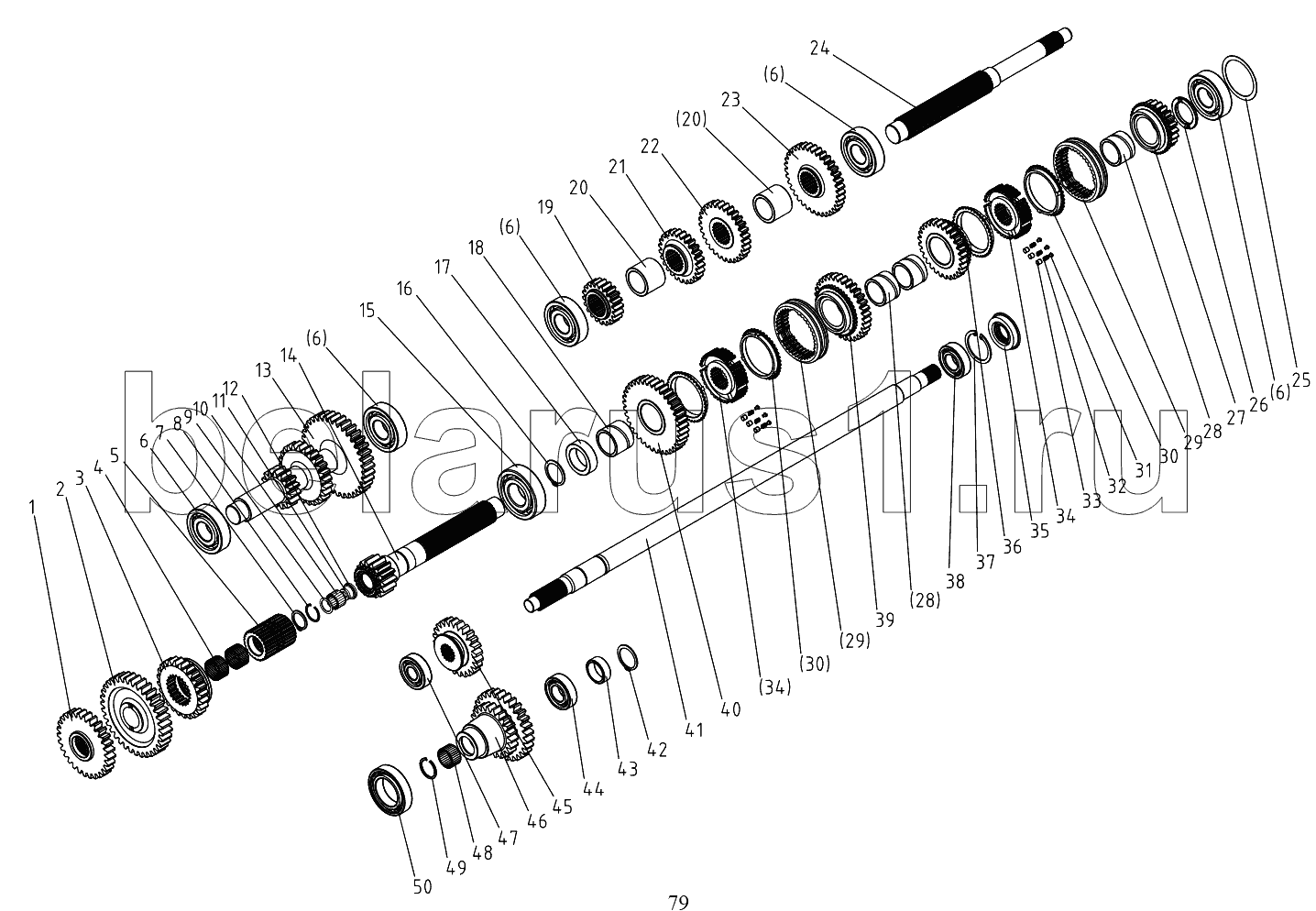

Каталог запасных частей к технике: DongFeng 504G3. Gearbox (A) 504G3.37.001
1
2
2
3
3
4
5
6
6
6
6
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
20
21
22
23
24
24
25
26
27
28
28
29
29
30
30
31
32
33
34
34
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 504G3.37.118-1 | Front drive active gear | |
| 2 | 504G3.37.116A | Driven gear,low speed | |
| 2 | 504G3.37.116-1 | Driven gear,low speed | |
| 3 | 504G3.37.125A | Sliding gear,secondary change speed | |
| 3 | 504G3.37.125 | Sliding gear,secondary change speed | |
| 4 | GB/T5846-1986-K30x35x17 | Ball bearing К30x35х17 | |
| 5 | 504G3.37.126-1 | Sliding sleeve seat,secondary change sp | |
| 6 | GB/T276-1994-6306 | Bearing 6306 | |
| 7 | 254G3.37.129 | Cirelip for shaft 28 | |
| 8 | 504G3.37.129-1 | Circlip for hole 32 | |
| 9 | 504G3.37.232 | Needle retaining ring (1) | |
| 10 | 504G3.37.233 | Roller pin of 4.5 | |
| 11 | 504G3.37.234 | Retaining ring | |
| 12 | 504G3.37.235 | Needle retaining ring (2) | |
| 13 | 504G3.37.114A | Counter-gear-shaft | |
| 13 | 504G3.37.114-1 | Counter-gear-shaft | |
| 14 | 504G3.37.177 | 2nd shaft | |
| 15 | GB/T276-1994-6307 | Ball bearing 6307 | |
| 16 | 504G3.37.112 | Circlip for shaft 35 | |
| 17 | 504G3.37.111 | Spacer bush | |
| 18 | 504G3.37.131 | Long bush | |
| 19 | 504G3.37.109 | Driving gear, 1st speed | |
| 20 | 504G3.37.106 | Spacer bush | |
| 21 | 504G3.37.108 | Driving gear, 2nd speed | |
| 22 | 504G3.37.107 | Driving gear, 3rd speed | |
| 23 | 504G3.37.105 | Driving gear,4th speed | |
| 24 | 504G3.37.104 | Input shaft,main change speed | |
| 24 | 504G3.37.104A | Input shaft,main change speed | |
| 25 | 504G3.37.145 | Adjust shims | |
| 26 | 504G3.37.142 | Spacing ring | |
| 27 | 504G3.37.138 | Driven gear,4th speed | |
| 28 | 504G3.37.141 | Bush | |
| 29 | 550-1.37А.112 | Hub sleeve | |
| 30 | 550-1.37А.114 | Cone ring | |
| 31 | 550-1.37А.116 | Bracket | |
| 32 | 550-1.37А.115 | Spring | |
| 33 | 550-1.37А.117 | Pin | |
| 34 | 504G3.37.136 | Hub gear | |
| 35 | 254G3.41.124 | Oil seal FB25x52x9 | |
| 36 | 504G3.37.135 | Driven gear,3rd speed | |
| 37 | GB/T893.1-1986-52 | Bead flange 52 | |
| 38 | GB/T276-1994-6205 | Ball bearing 6205 | |
| 39 | 504G3.37.134 | Driven gear,2nd speed | |
| 40 | 504G3.37.132 | Driven gear,1st speed | |
| 41 | 504G3.37.148 | Front wheel driving shaft | |
| 42 | 504G3.63.102 | Circlip for shaft 30 | |
| 43 | 504G3.37.124A | Spacer bush | |
| 43 | 504G3.37.124 | Spacer bush | |
| 44 | GB/T283-1994-NJ205E | Ball bearing NJ205E | |
| 45 | 504G3.37.122 | Front wheel driven shaft | |
| 46 | 504G3.37.120 | Doublegear block | |
| 47 | GB/T276-1994-6304 | Ball bearing 6304 | |
| 48 | GB/T5846-1986-K25x31x17 | Ball bearing K25x31x17 | |
| 49 | 504G3.37.121 | Circlip for hole 31 | |
| 50 | GB/T276-1994-6009 | Ball bearing 6009 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
