Каталог запасных частей к технике: DongFeng 504G3. Front Axles 500G3.31.001
1
2
3
4
5
6
6
7
8
9
10
11
12
13
13
13
14
15
16
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

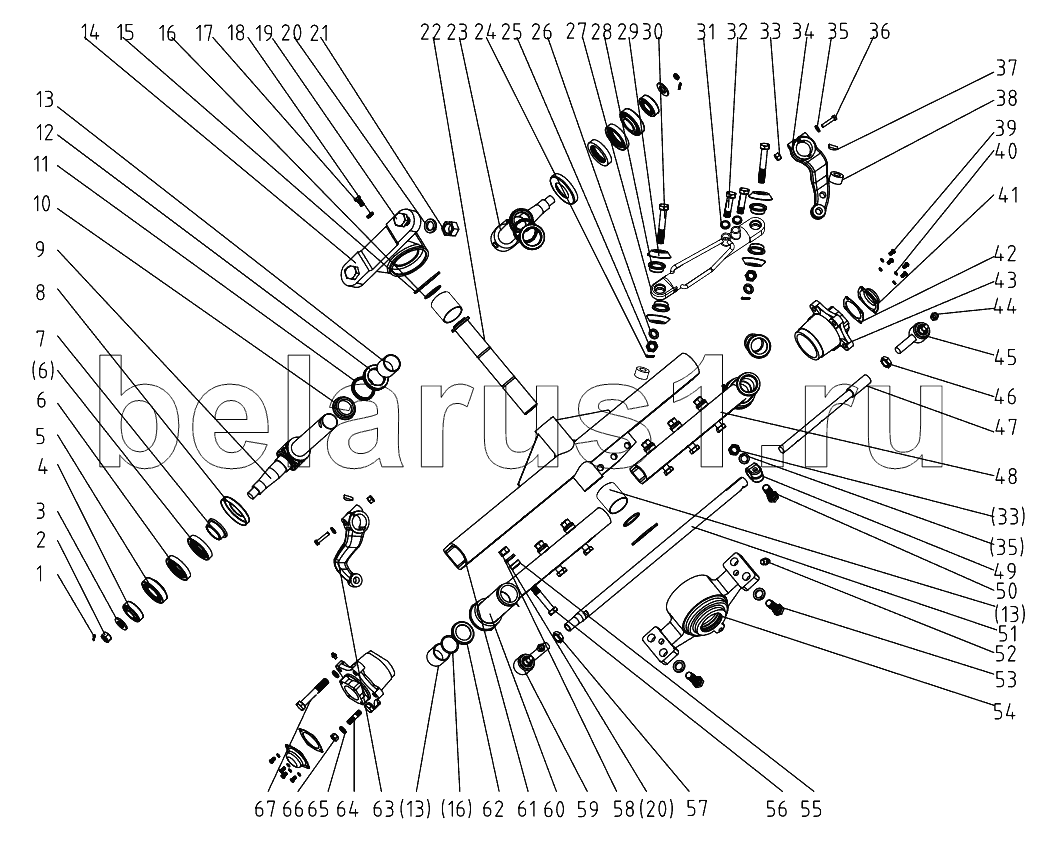

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T91-2000-5x50 | Split pin 5x50 | |
| 2 | GB/T9459-2000-M27x2 | Hex. nut М27х2 | |
| 3 | 550.31.105 | Shim for bearing | |
| 4 | GB/T297-1994-32207 | Tapered roller bearing 32207 | |
| 5 | GB/T297-1994-32209 | Tapered roller bearing 32209 | |
| 6 | GB/T9877.1-1988-FB65x90x10 | Oil-seal FB65x90x10 | |
| 7 | 450.31.106 | Oil-seal seat for half shaft | |
| 8 | 450.31.107 | Dust cover | |
| 9 | 450J.31A.028 | Half shaft welded pieces left turn | |
| 10 | 450.31.115 | The vertical shaft oil seal seat | |
| 11 | 450.31.019 | Vertical shaft seal assembly | |
| 12 | GB/T301-1995-51109 | Ball bearing 32207 | |
| 13 | 450.31.116 | Bush | |
| 14 | 500G3.31.101 | Rocking shaft front bearing | |
| 15 | 450.31.112 | Swing shaft gasket | |
| 16 | GB/T3452.1-1992-45x2.65 | O-ring seal 45x2.65 | |
| 17 | GB/T5783-2000-M10x20 | Hex.head bolt M10x20 | |
| 18 | GB/T93-1987-10 | Spring lock washer 10 | |
| 19 | GB/T27-1988-M16x65 | Hex. head bolt M16x65 | |
| 20 | GB/T93-1987-16 | Spring Lock washer16 | |
| 21 | GB/T6170-2000-M16 | Hex .nut M16 | |
| 22 | 450J.31.027 | Rocking shaft welding | |
| 23 | 450J.31A.029 | Half shaft welded pieces right turn | |
| 24 | GB/T91-2000-4x28 | Split pin 4x28 | |
| 25 | GB/T6181-1986-M16 | Hex. nut M16 | |
| 26 | GB/T97.1-2002-16 | Plain washer 16 | |
| 27 | 450J.31A.027-1 | Steering cylinder | |
| 28 | 450J.31A.130 | Circlip for shaft | |
| 29 | 450J.31A.128 | Dust boot | |
| 30 | GB/T28-1988-M16x100 | Hex. head bolt M16 | |
| 31 | JB-FT-CU-16 | Copper washer 16 | |
| 32 | JB/T6013-2000-M16x1.5 | link bolt M16x1.5 | |
| 33 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 34 | 450J.31A.109 | Right steering knuckle arm | |
| 35 | GB/T93-1987-12 | Spring lock washer 12 | |
| 36 | GB/T5782-2000-M12x80 | Hex. head bolt M12x80 | |
| 37 | GB/T1099-2003-10x32 | Spline 10x32 | |
| 38 | 450J.31A.111 | Block | |
| 39 | GB/T5783-2000-M8 x16 | Hex. head bolt M8x16 | |
| 40 | GB/T93-1987-8 | Spring lock washer 8 | |
| 41 | 550.31.103 | Bear cover | |
| 42 | 550.31.104 | Bearing cover paper pad | |
| 43 | 450.31.105 | Front hub | |
| 44 | GB/T889.2-2000-M14x1.5 | Nut M14x1.5 | |
| 45 | 504G3.31.021 | Linkage ball joint | |
| 46 | GB/T6173-2000-M18x1.5 | Hex.thin nut M18x1.5 | |
| 47 | 450.31.025 | In the rail welding | |
| 48 | 450.31.023 | The front right arm weldment | |
| 49 | 450.31.131 | Steering tie rod hoop | |
| 50 | GB/T5782-2000-M12x55 | Hex. head bolt М12х55 | |
| 51 | 450.31.130 | Steering tie rod | |
| 52 | JB/T7940.1-1995-M10x1 | Grease cup M10x1 | |
| 53 | GB/T5783-2000-M14x45 | Hex.bolt M14x45 | |
| 54 | 500G3.31.102 | Rocking shaft rear bearing | |
| 55 | 450.31.110 | The front axle arm washer | |
| 56 | GB/T5785-2000-M16x 1.5x100 | Hex. head bolt M16x1.5x100 | |
| 57 | GB/T6173-2000-M18x1.5 | Hex.thin nut M18x1.5 | |
| 58 | GB/T6176-2000-M16x1.5 | Fine thread hex. Nut M16x1.5 | |
| 59 | 504G3.31.020 | Linkage ball joint | |
| 60 | 450.31.022 | The front left arm weldment | |
| 61 | 500G3.31.021 | Axle beam welding | |
| 62 | 450.31.108 | Dust cover of upright shaft | |
| 63 | 450J.31A.115 | Left steering knuckle arm | |
| 64 | 450.31.152 | Double screw bolt | |
| 65 | GB/T93-1987-14 | Spring lock washer 14 | |
| 66 | GB/T6176-2000-M14x1.5 | Fine thread hex. nut M14x1.5 | |
| 67 | GB/T5786-2000-M14x1.5x35 | Hex. head bolt M14x1.5x35 |
