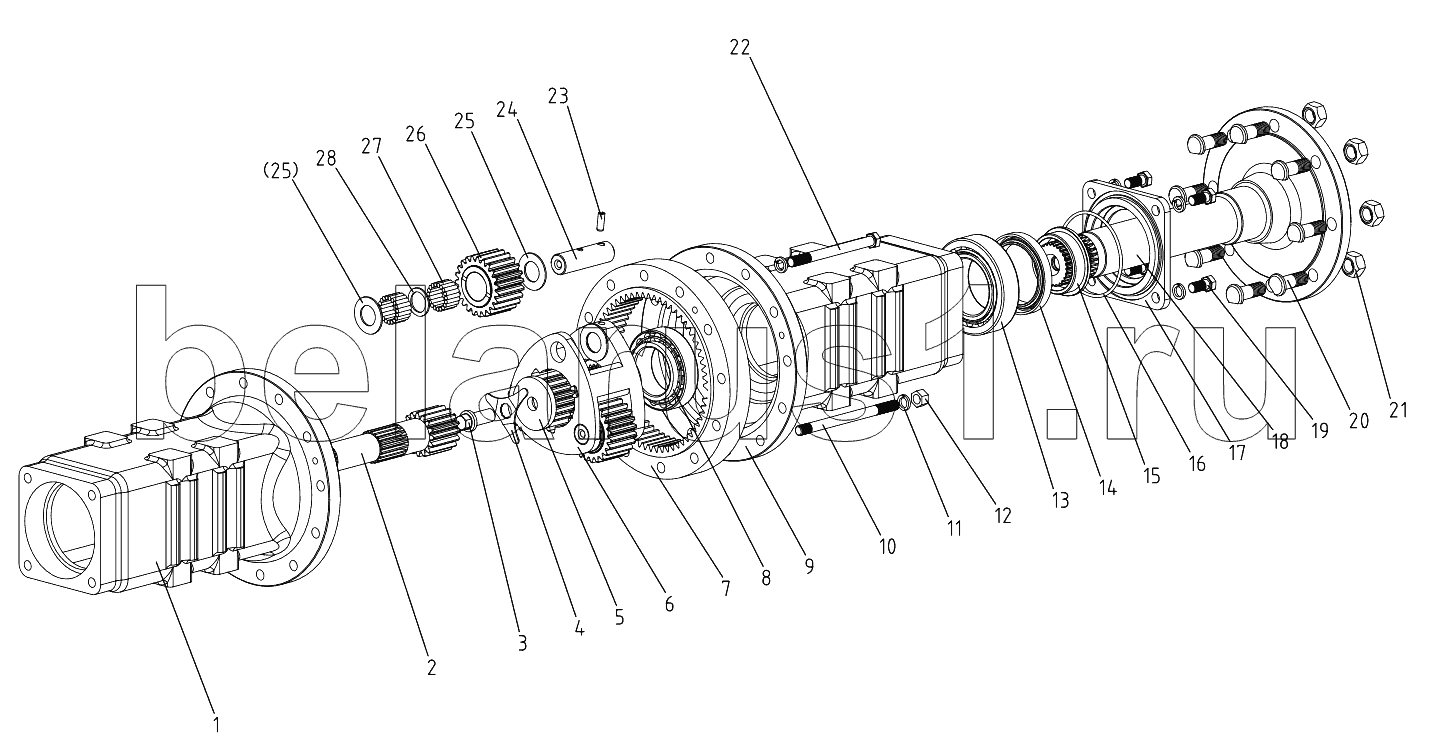

Каталог запасных частей к технике: DongFeng 504G3. Final Transmission 504G3.39.001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 504G3.39.101 | Right half shaft housing | |
| 2 | 504G3.39.105 | Half shaft | |
| 3 | 450.39.112 | Lock bolt,driving shaft | |
| 4 | 450.39.111 | Lock piece,driving shaft | |
| 5 | 504G3.39.115 | Retaining collar | |
| 6 | 504G3.39.110 | Planet carrier | |
| 7 | 504G3.39.104 | Ring gear | |
| 8 | GB/T297-1994-30211 | Tapered roller bearing 30211 | |
| 9 | 504G3.39.107 | Left half shaft housing | |
| 10 | GB/T899-1988-AGM12-M12x150 | Double end stud AGM12x150 | |
| 11 | GB/T93-1987-12 | Spring lock washer 12 | |
| 12 | GB/T6170-2000-М 12 | Hex. thin slotted nut M12 | |
| 13 | GB/T297-1994-30213 | Tapered roller bearing 30213 | |
| 14 | 450J.39.012 | Oil-seal | |
| 15 | 450.39.117 | Bush | |
| 16 | GB/T3452.1-1992-125x3.55 | O-ring seal 125x3.55 | |
| 17 | 450.39.118 | Oil seal bracket | |
| 18 | 650.39.116 | Drive shaft | |
| 19 | GB/T5783-2000-M12x25 | Hex. head bolt M12x25 | |
| 20 | 300.39.102 | Rear hub bolt | |
| 21 | 300.39.101 | Rear hub nut | |
| 22 | GB/T5782-2000-M12x155 | Hex. head bolt M12x155 | |
| 23 | GB/T879.1-2000-8x22 | Slotted spring pin 8x22 | |
| 24 | 504G3.39.114 | Planet gear shaft | |
| 25 | 504G3.39.111 | Outer spacer sleeve | |
| 26 | 504G3.39.113 | Planet gear | |
| 27 | GB/T309-2000-5x21.8 | Needle roller 5x21.8 | |
| 28 | 504G3.39.112 | Inner spacer sleeve |
