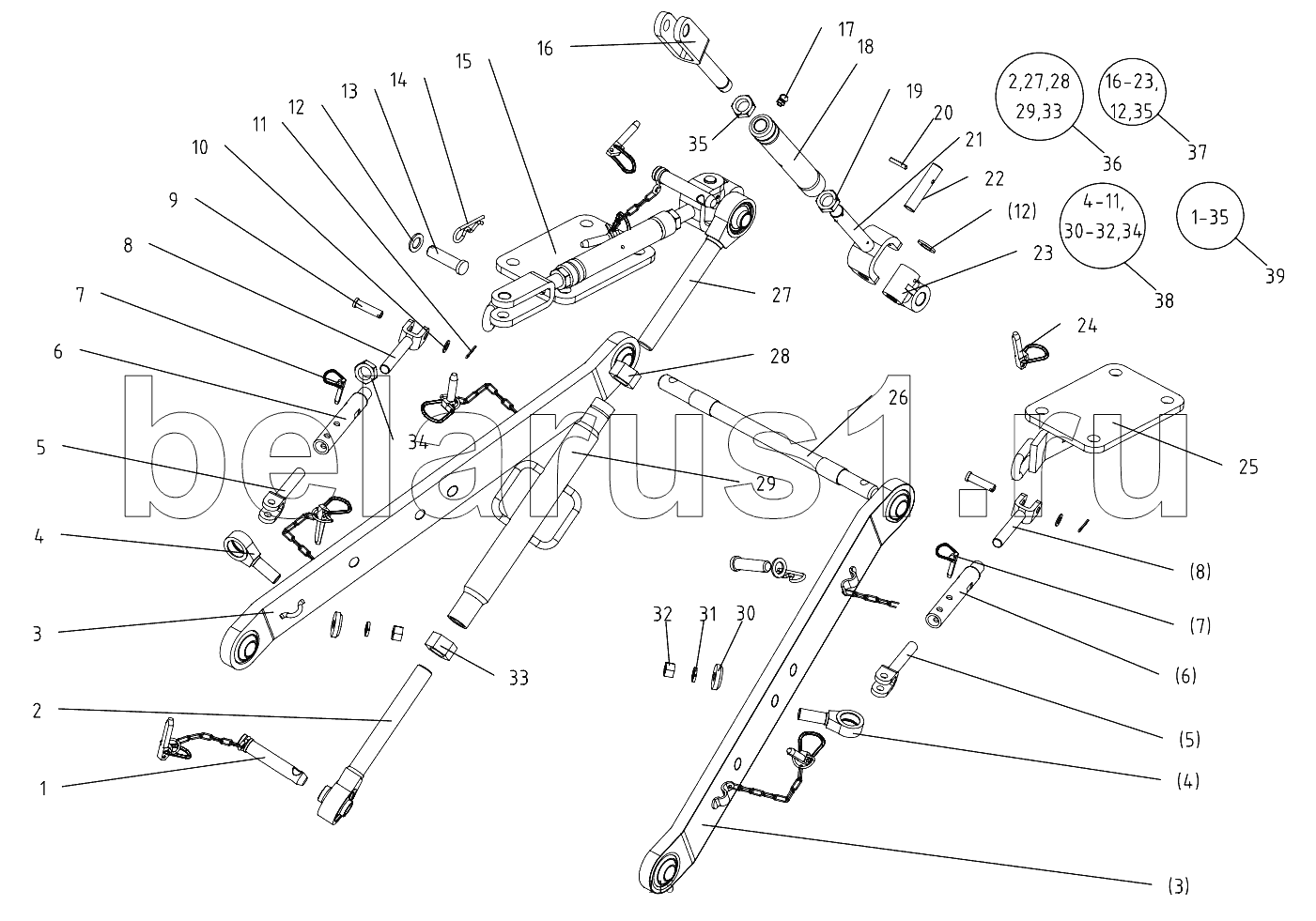

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200.56.016 | Coupling pin of upper link | |
| 2 | 300.56.020-1 | Upper link rear adjusting rod | |
| 3 | 300.56.030-1 | Lower link weldment | |
| 4 | 300.56.109 | Ring bolt | |
| 5 | 300.56.016 | Rear check chain | |
| 6 | 300.56.104 | Adjust sleeve | |
| 7 | 300.56.011 | Kock pin | |
| 8 | 300.56.015 | Front check chain | |
| 9 | GB/T882-1986-14x55 | Clevis pin with head 14x55 | |
| 10 | GB/T97.1-2002-14 | Plain washer 14 | |
| 11 | GB/T91-2000-4x25 | Split pin4x25 | |
| 12 | GB/T97.1-2002-16 | Plain washer 16 | |
| 13 | GB/T882-1986-B16x55 | Clevis pin with head B16x55 | |
| 14 | 200.56.101-1 | R-pin | |
| 15 | 300.56.029-1 | Left-front check chain | |
| 16 | 300.56.024-1 | Lower clevis of lift rod | |
| 17 | JB/T7940.1-1995-M10x1 | Grease cup M10x1 | |
| 18 | 300.56.150 | Lift rod upper clevis | |
| 19 | GB/T6173-2000-M20x2 | Hex.nut M20x2 | |
| 20 | GB/T91-2000-3.2x26 | Split pin 3.2x26 | |
| 21 | 300.56.022-1 | Lift rod up clevis | |
| 22 | GB/T882 -1986-16x80 | Clevis pin with head 16x80 | |
| 23 | 300.56.113 | Cross joint of lift rod | |
| 24 | 200.56.011 | Kock pin | |
| 25 | 300.56.026-1 | Right-front check chain | |
| 26 | 200.56.103 | Lower link shaft | |
| 27 | 300.56.018-1 | Upper link front adjusting rod | |
| 28 | GB/T6170-2000-M24 | Hex. nut M24 | |
| 29 | 280.56.016 | Turn buckle of upper link | |
| 30 | 300.57.157 | Round plate | |
| 31 | GB/T93-1987-16 | Spring Lock washer16 | |
| 32 | GB/T6170-2000-M16 | Hex .nut M16 | |
| 33 | GB/T6172-2000-M24-L | Nut M24 | |
| 34 | GB/T6172-2000-M22 | Nut M22 | |
| 35 | GB/T6173-2000-M20x2-L | Nut M20x2 | |
| 36 | 300.56.012-1 | Upper link assembly | |
| 37 | 300.56.013-1 | Lift rod assembly | |
| 38 | 300.56.033-1A | Check chain assembly | |
| 39 | 300.56.001-1 | Suspension mechanism assembly |
