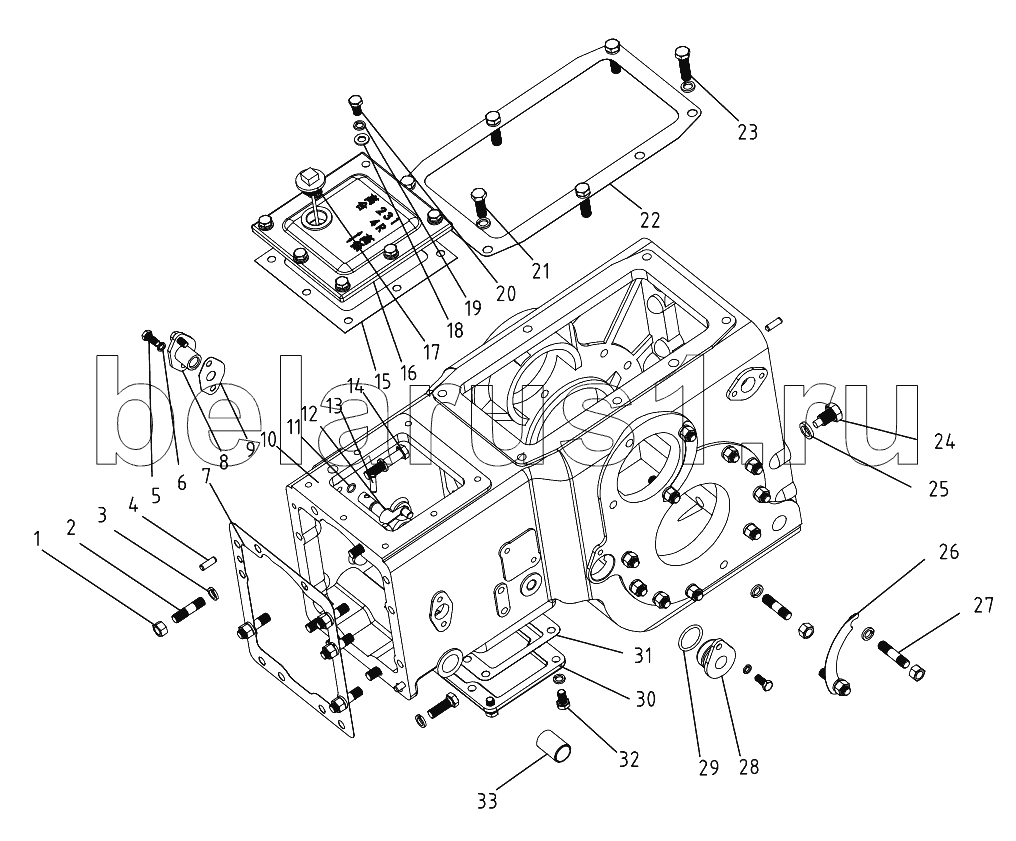

Каталог запасных частей к технике: DongFeng 404G2. Rear Axle (B)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 2 | GB/T898-1988-AM12x35 | Stud AM12x35 | |
| 3 | GB/T93-1987-12 | Spring lock washer 12 | |
| 4 | GB/T119.1-2000-B8x22 | Parallel pin B8x22 | |
| 5 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 6 | GB/T93-1987-8 | Spring lock washer 8 | |
| 7 | 200.38.102 | Paper gasket | |
| 8 | 200.38.113 | Bush,shifter peg | |
| 9 | 200.38.111 | Paper gasket,bush | |
| 10 | 300.38.101-2 | Transmission case | |
| 11 | GB/T3452.1-1992-10.6x2.65 | O-ring seal10.6x2.65 | |
| 12 | 300.38.103 | Shifter peg | |
| 13 | GB/T879.1-2000-6x28 | Slotted spring pin 6x28 | |
| 14 | GB/T5782-2000-M10x60 | Hex. head bolt M10x60 | |
| 15 | 300.38.112 | Paper gasket,upper cover | |
| 16 | 300.38.113A-1 | Upper cover | |
| 16 | 300.38.113B | Upper cover | |
| 17 | 200.38.014A | Dipstick | |
| 18 | GB/T97.2-2002-10 | Plain washer 10 | |
| 19 | GB/T93-1987-10 | Spring lock washer 10 | |
| 20 | GB/T5783-2000-M10x20 | Hex.head bolt M10x20 | |
| 21 | GB/T5783-2000-M12x35 | Hex. head bolt M12x35 | |
| 22 | 300.38.114 | Paper gasket,lift housing | |
| 23 | GB/T5782-2000-M12x45 | Hex. head bolt M12x45 | |
| 24 | 200.38.024 | Oil drain plug | |
| 25 | 12.37.149 | Combined seal washer | |
| 26 | 300.38.116 | Adjusting shims,spiral crown gear | |
| 27 | GB/T898-1988-AM12x40 | Double end stud AM12x40 | |
| 28 | 200.38.160 | End cover | |
| 29 | GB/T3452.1-1992-33.5x3.35 | O-ring seal 33.5x3.35 | |
| 30 | 200.38.144-3 | Bush |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
