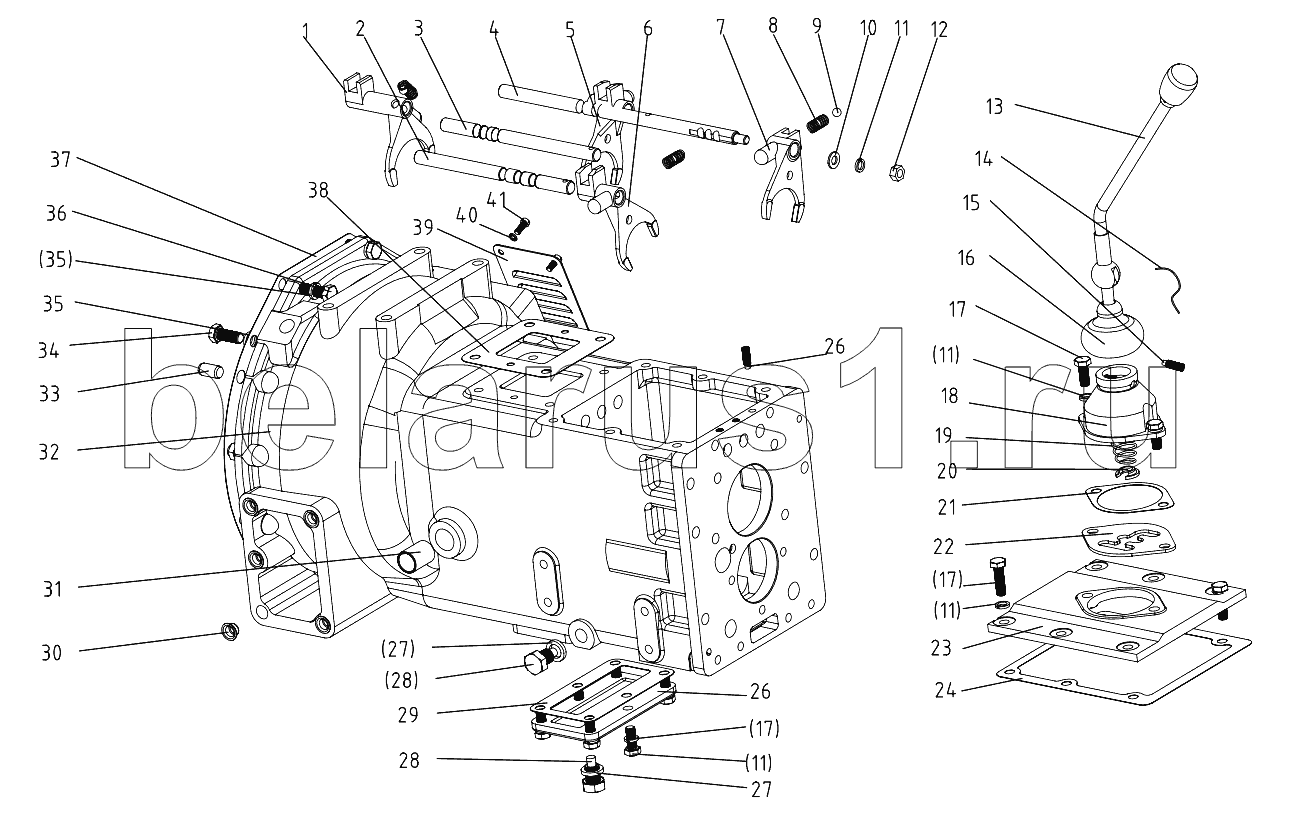

Каталог запасных частей к технике: DongFeng 404CE. Gearbox (B)
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
17
17
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 300.37.001-1 | 300.37.001-1 | Gearbox assembly | |
| 1 | 300.37.128 | Middle shift fork | |
| 2 | 300.37.126 | Right shift fork | |
| 3 | 300.37.129-2 | Shaft,left shift fork | |
| 4 | 300.37.127-2 | Shaft, middle shift fork | |
| 5 | 300.37.125-2 | Shaft, right shift fork | |
| 6 | 300.37.130 | Left shift fork | |
| 7 | 200.37.211 | Shift fork, Hi- low speed range | |
| 8 | 450.38.160 | Positioning spring, shift fork | |
| 9 | GB/T308-2002 | Шарик | |
| 10 | GB/T97.2-2002 | Plain washer 10 | |
| 11 | GB/T93-1987 | Шайба 16 Zn.D | |
| 12 | GB/T6170-2000 | Hex .nut M24 | |
| 13 | 200.37.013-1 | Gear-shift lever | |
| 14 | GB/T343-1982 | Cold drawn steel wire d1.4x160 | |
| 15 | GB/T75-2000 | Set screw with dog point M8x1 | |
| 16 | 200.37.153 | Dust boot | |
| 17 | GB/T5783-2000 | Болт M12x35 Zn.D | |
| 18 | 300.37.114 | Seat, gear shift lever | |
| 19 | 300.37.112 | Spring, gear shift lever | |
| 20 | 300.37.113 | Spring stopper, gear shift lever | |
| 21 | 200.37.134 | Seat gasket, gear shift lever | |
| 22 | 200.37.133 | limit casing,gear shift lever | |
| 23 | 300.37.119 | Gearbox cover | |
| 24 | 300.37.120 | Gasket, gearbox cover | |
| 25 | 300.37.155 | Poisitioning screw | |
| 26 | 300.37.150 | Bottom cover | |
| 27 | 12.37.149 | Combined seal washer | |
| 28 | 200.38.024 | Oil drain plug | |
| 29 | 300.37.151 | Paper gasket | |
| 30 | 300.37.180 | Protecting plug, thread hole | |
| 31 | 300.37.153-2 | Clutch shaft bush | |
| 32 | 300.37.101-1 | Gearbox housing | |
| 33 | 300.37.154 | Parallel pin | |
| 34 | GB/T5783-2000-M12x45 | Hex. head bolt M12x45 | |
| 35 | GB/T93-1987-12 | Spring lock washer 12 | |
| 36 | GB/T5783-2000-M12x45 | Hex. head bolt M12x45 | |
| 37 | 300.37.186 | Paper gasket | |
| 38 | 300.37.185 | Paper gasket | |
| 39 | 300.37.131-1 | Inspection opening cover | |
| 40 | GB/T93-1987-6 | Spring lock washer 6 | |
| 41 | GB/T65-2000-M6x12 | Screw M6x12 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
