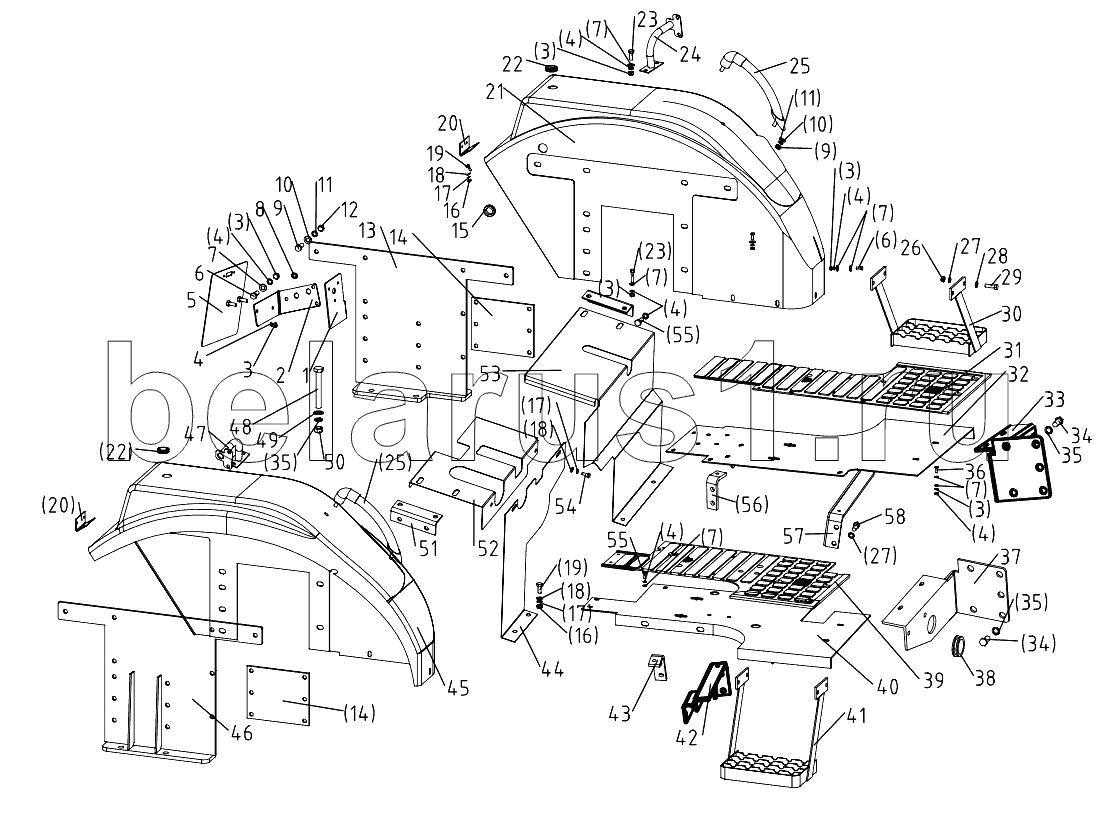

Каталог запасных частей к технике: DongFeng 404CE. Foot Mud Shields Rest
1
2
3
3
3
3
3
3
4
4
4
4
4
4
4
5
6
6
7
7
7
7
7
7
8
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
18
19
19
20
20
21
22
22
23
23
24
25
25
26
27
27
28
29
30
31
32
33
34
34
35
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
56
57
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 304G2-6E.57.102 | Trailer socket plate | |
| 2 | 300-6.47.222 | License plate bracket | |
| 3 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 4 | GB/T93-1987-8 | Spring lock washer 8 | |
| 5 | 300-6.47.024 | License plate bracket plate weldment | |
| 6 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 7 | GB/T97.1-2002-8 | Plain washer 8 | |
| 8 | 304-6E.51.105 | License plate bracket rubber | |
| 9 | GB/T5783-2000-M12x35 | Hex. head bolt M12x35 | |
| 10 | GB/T97.1-2002-12 | Plain washer 12 | |
| 11 | GB/T93-1987-12 | Spring lock washer 12 | |
| 12 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 13 | 404G2-6E.51.021 | Left bracket joint | |
| 14 | 404G2-6E.51.101 | Rubber cover | |
| 15 | 304G2-6.51.106 | Sealing rubber ring | |
| 16 | GB/T6170-2000-M6 | Hex. Nut M6 | |
| 17 | GB/T93-1987-6 | Spring lock washer 6 | |
| 18 | GB/T97.1-2002-6 | Plain washer 6 | |
| 19 | GB/T5783-2000-M6x20 | Hex.head bolt M6x20 | |
| 20 | 404-11.51.107 | Back eflex reflector subpanel | |
| 21 | 404-6E.51.019 | Left mud Shield | |
| 22 | 200.47A.316 | Right mud Shield | |
| 23 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 24 | 400-6.47.022-1 | Turn left bracket rest | |
| 25 | 550.51C.204 | Handle hold | |
| 26 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 27 | GB/T93-1987-10 | Spring lock washer 10 | |
| 28 | GB/T97.1-2002-10 | Plain washer 10 | |
| 29 | GB/T5783-2000-M10x30 | Hex. head bolt M10x30 | |
| 30 | 400-6.47.044 | Left foot ladder | |
| 31 | 404-6E.51.108 | Left foot rest rubber board | |
| 32 | 404-6E.51.013 | Left foot rest | |
| 33 | 400-6.47.043 | Left foot rest plate, bracket | |
| 34 | GB/T5783-2000-M16x35 | Hex. head bolt M16x35 | |
| 35 | GB/T93-1987-16 | Spring Lock washer16 | |
| 36 | GB/T5783-2000-M8x30 | Hex. head bolt M8x30 | |
| 37 | 400-6.47.053 | Right foot rest plate, bracket | |
| 38 | 254G2.51.108 | Rudder nest | |
| 39 | 404-6E.51.109 | Right foot rest rubber board | |
| 40 | 404-6E.51.014 | Right foot rest | |
| 41 | 400-6.47.054 | Right foot ladder | |
| 42 | 400-6.47.052-1 | Right-front bracket joint | |
| 43 | 300.47.506 | Right back plate | |
| 44 | 404-6E.51.101 | Perpendicularity plate | |
| 45 | 404-6E.51.020 | Right mud Shield | |
| 46 | 404G2-6E.51.022 | Right bracket joint | |
| 47 | 400-6.47.025 | Turn right braket rest | |
| 48 | GB/T5782-2000-M16x175 | Hex. head bolt M16x175 | |
| 49 | GB/T97.1-2002-16 | Plain washer 16 | |
| 50 | GB/T6170-2000-M16 | Hex .nut M16 | |
| 51 | 404-6E.51.102 | Below plate | |
| 52 | 404-6E.51.012 | Right close board | |
| 53 | 404-6E.51.103 | Left close board | |
| 54 | GB/T5783-2000-M6x16 | Hex.head bolt M6x16 | |
| 55 | GB/T5783-2000-M8x16 | Hex. head bolt M8x16 | |
| 56 | 300.47.401 | Left-rear bracket joint | |
| 57 | 400-6.47.042 | Left-front bracket joint | |
| 58 | GB/T5783-2000-M10x25 | Hex. head bolt M10x25 |
