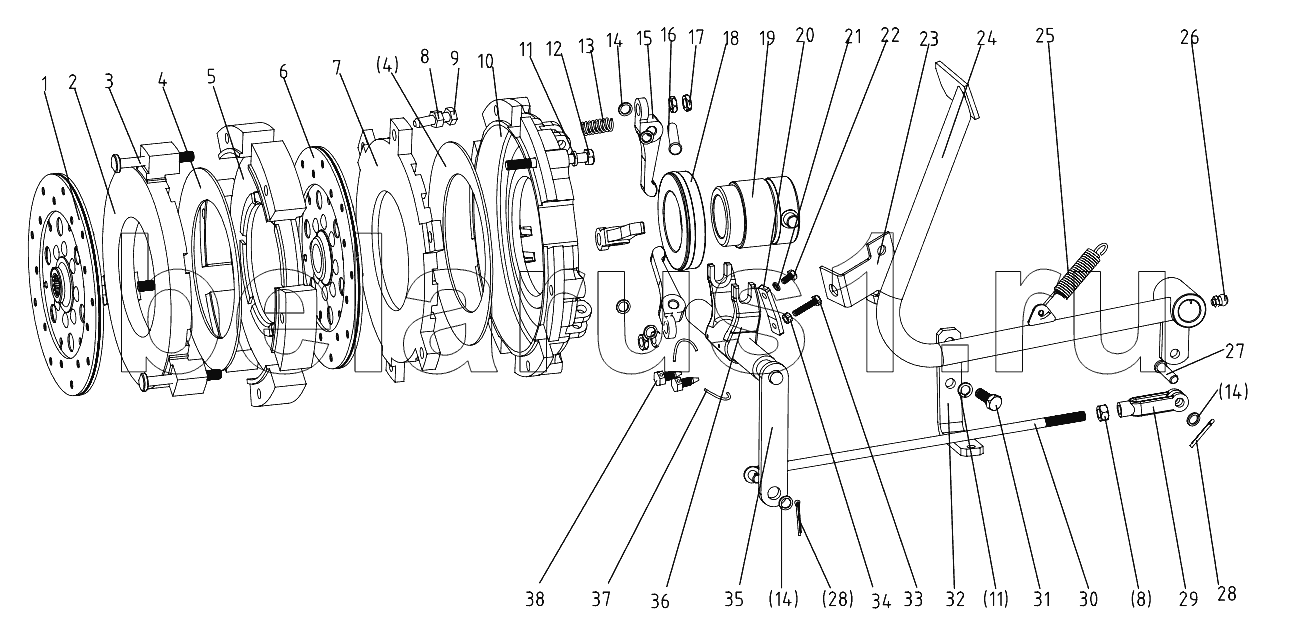

Каталог запасных частей к технике: DongFeng 404CE. Clutch
1
2
3
4
4
5
6
7
8
8
9
10
11
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 400-6.21.clutch | 400-6.21.clutch | Clutch parts | |
| 1 | 400-6.21.013 | Driven plate,main clutch | |
| 2 | 300.21C.103-1 | Pressure plate, main clutch | |
| 3 | 300.21C.114-1 | Adjusting bolt | |
| 4 | 300.21A.102-2 | Disc spring | |
| 5 | 300.21C.104 | Fixed pressure plate, clutch | |
| 6 | 400-6.21.012 | Driven plate, PTO clutch | |
| 7 | 300.21C.106-1 | Pressure plate, PTO clutch | |
| 8 | GB/T6171-2000- M10x1 | Fine thread hex. nut M10x1 | |
| 9 | 300.21C.113-1 | Adjusting bolt | |
| 10 | 300.21C.107-1 | Clutch cover | |
| 11 | GB/T93-1987-10 | Spring lock washer 10 | |
| 12 | GB/T5782-2000- M10x90 | Hex. head bolt M10x90 | |
| 13 | 300.21C.115 | Return spring | |
| 14 | GB/T97.1-2002-10 | Plain washer 10 | |
| 15 | 300.21C.116-1 | Main release lever | |
| 16 | 300.21B.157 | Clevis pin with head | |
| 17 | GB/T6173-2000-M10x1 | Fine thread hex. nut M10x1 | |
| 18 | 65TNK20 | Release bearing | |
| 19 | 300.21C.108 | Release bearing seat | |
| 20 | 300.21C.131 | board for safety switch | |
| 21 | GB/T93-1987-6 | Spring lock washer 6 | |
| 22 | GB/T5783-2000-M6x12 | Hex. head bolt M6x12 | |
| 23 | 300.21C.132 | safety switch bracket | |
| 24 | 300.21C.017 | Pedal weldment | |
| 25 | 300.21A.147-2 | Extension spring | |
| 26 | JB/T7940.2-1995- 45° M10x1 | Angle grease nipple 45° M10x1 | |
| 27 | GB/T882-1986-B10x30 | Clevis pin with head B10x30 | |
| 28 | GB/T91-2000- 3x25 | Split pin 3x25 | |
| 29 | 300.21A.148 | Rod clevis | |
| 30 | 300.21C.020 | Lever release pull rod | |
| 31 | GB/T5783-2000- M10x25 | Hex. head bolt M10x25 | |
| 32 | 280.21.119-1 | Limit stop | |
| 33 | 300.21C.133 | Adjusting bolt | |
| 34 | GB/T6170-2000-M6 | Hex. Nut M6 | |
| 35 | 300.21C.015-A | Release shaft | |
| 36 | 300.21C.110 | Release fork | |
| 37 | GB/T3081-1982--2 | Hot galvanized steel wire-2 | |
| 38 | 300.21A.146- | Set screw with dog point |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
