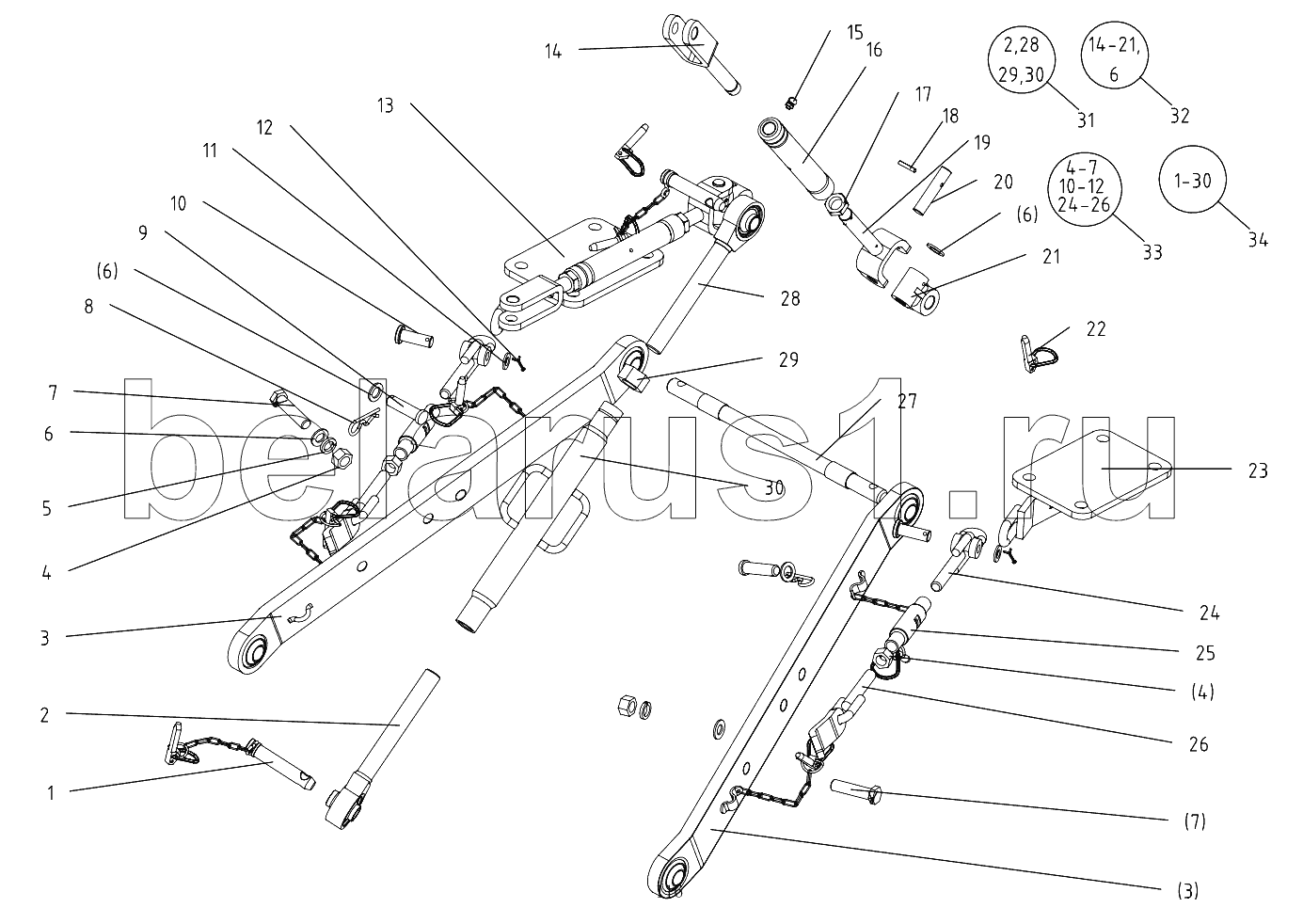

Каталог запасных частей к технике: DongFeng 304G2. Suspension Mechanism
1
1
2
2
3
3
4
4
4
5
6
6
6
6
7
7
7
8
9
10
10
11
12
12
13
14
14
15
16
17
18
19
20
21
21
22
23
24
24
25
26
26
27
28
28
29
29
30
30
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200.56.016 | Coupling pin of upper link | |
| 2 | 300.56.020-1 | Upper link rear adjusting rod | |
| 3 | 280.56.014 | Lower link weldment | |
| 4 | GB/T6170 -2000-M16 | Hex.nut M16 | |
| 5 | GB/T93-1987-16 | Spring Lock washer16 | |
| 6 | GB/T97.1-2002-16 | Plain washer 16 | |
| 7 | GB/T5782-2000-M16x80 | Hex. head bolt M16x80 | |
| 8 | 200.56.101-1 | R-pin | |
| 9 | GB/T882-1986-B16x55 | Clevis pin with head B16x55 | |
| 10 | GB/T882-1986-B12x45 | Clevis pin with head B12x45 | |
| 11 | GB/T97.1-2002-12 | Plain washer 12 | |
| 12 | GB/T91-2000- 4x20 | Split pin 4x20 | |
| 13 | 280.56.023A | Left-front check chain | |
| 14 | 280.56.018 | Lower clevis of lift rod | |
| 15 | JB/T7940.1-1995-M10x1 | Grease cup M10x1 | |
| 16 | 280.56.029 | Lift rod upper clevis | |
| 17 | GB/T6173-2000-M20x2 | Hex.nut M20x2 | |
| 18 | GB/T91-2000- 3.2x26 | Split pin 3.2x26 | |
| 19 | 280.56.017 | Lift rod up clevis | |
| 20 | GB/T882 -1986-B16x80 | Clevis pin with head 16x80 | |
| 21 | 300.56.113 | Cross joint of lift rod | |
| 22 | 200.56.011 | Kock pin | |
| 23 | 280.56.022A | Right-front check chain | |
| 24 | 280.56.020 | Front check chain | |
| 25 | 300.56.155-1 | Adjusting sleeve | |
| 26 | 280.56.019 | Rear check chain | |
| 27 | 200.56.103 | Lower link shaft | |
| 28 | 300.56.018-1 | Upper link front adjusting rod | |
| 29 | GB/T6170-2000-M24 | Hex. nut M24 | |
| 30 | 280.56.016 | Turn buckle of upper link | |
| 31 | 280.56.012 | Upper link assembly | |
| 32 | 280.56.013 | Lift rod assembly | |
| 33 | 280.56.015 | Check chain assembly | |
| 34 | 280.56.001 | Suspension Mechanism |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
