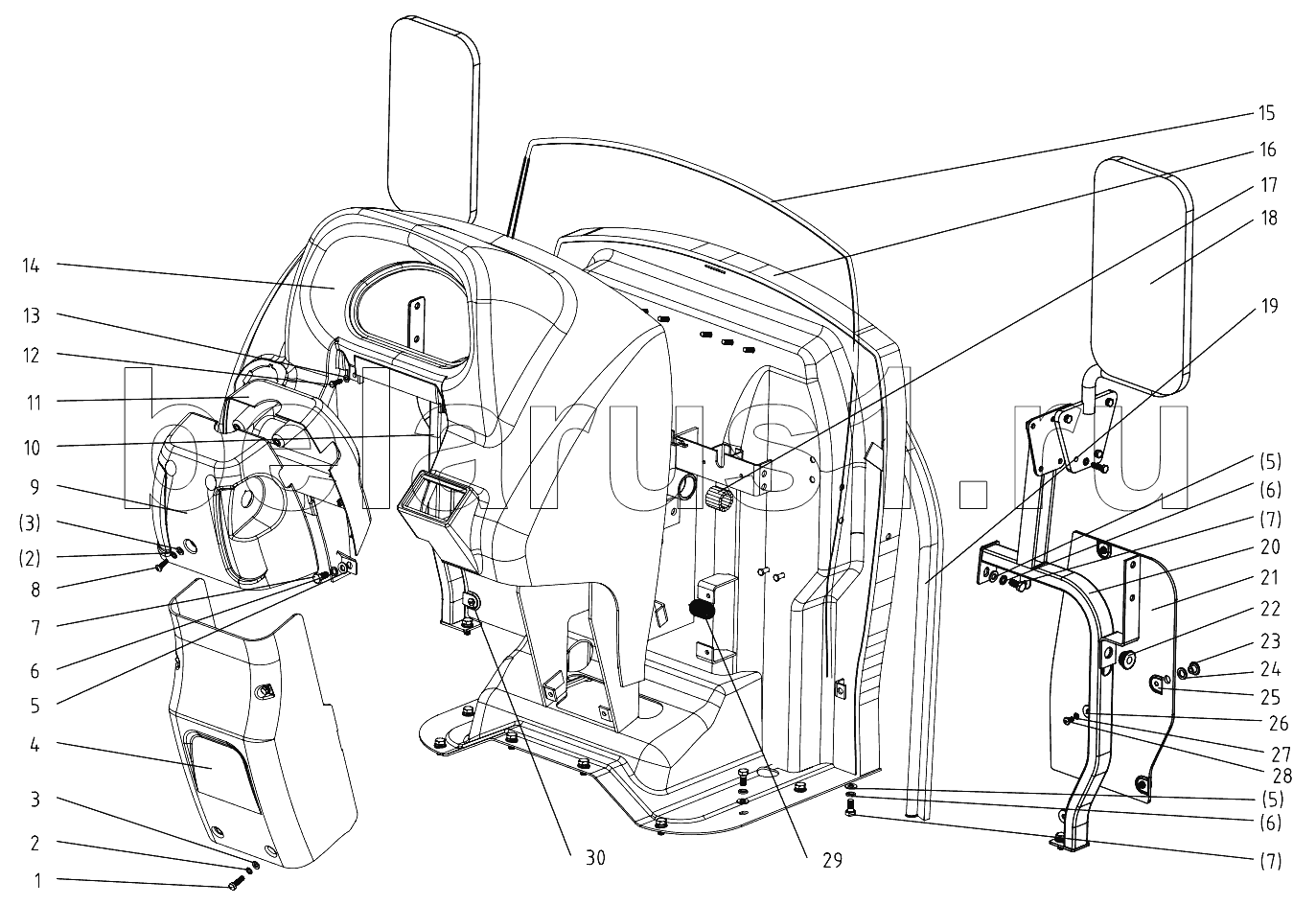

Каталог запасных частей к технике: DongFeng 304G2. Hood and Panel (B)

1

2

2

3

3

4

5

5

5

5

6

6

6

7

7

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

Позиция на иллюстрации	Заводской номер детали		Название детали
1	GB/T5783-2000-M6x20		Hex.head bolt M6x20
2	GB/T93-1987-6		Spring lock washer 6
3	GB/T97.1-2002-6		Plain washer 6
4	504G3.47.103		Redirector pedestal mantle
5	GB/T97.1-2002-8		Plain washer 8
6	GB/T93-1987-8		Spring lock washer 8
7	GB/T5783-2000-M8x16		Hex. head bolt M8x16
8	GB/T818-2000-M6x16		Philips pan head screw M6x16
9	504G3.47.102		Redirector back mantle
10	404G2-6F.47.016		Left frame clsss weldment
11	504G3.47.014		Redirector forward mantle
12	GB/T5783-2000-M10x25		Hex. head bolt M10x25
13	GB/T97.1-2002-5		Plain washer 5
14	404G3.47.101		Engine Hood
15	YC0542020445		Dashboard rubber ring
16	404G2-E.47.021		Hood frame clsss weldment
17	GB/T5846-1989-K25x31x25		Needle bearing K25x31x25
18	A3-1		Rearview mirror
19	800.47.101		Rubber ring
20	404G2-6F.47.018		Right frame clsss weldment
21	404G3.47.161		Windshield
22	504G3.51.102		Rubber sheath
23	504G3.47.225		Hex. Nut M5
24	504G3.47.226		Rubber washer 5
25	504G3.47.227		Plastic washer 5
26	GB/T96.2-1985-6		Plastic washer 6
27	GB/T93-1987-5		Spring lock washer 5
28	GB/T818-2000-M5x8		Philips pan head screw M5x8
29	504G3.47.108		wiring harness rubber cover
30	GB/T818-2000-M8x12		Philips pan head screw M8x12
31	404G2-6F.47.015-1		Lockpin
32	GB/T93-1987-10		Spring lock washer 10
33	GB/T5783-2000-M10x25		Hex. head bolt M10x25
34	404G2-E.47.041		Right Hood
35	404G2-E.47.031		Left Hood

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
