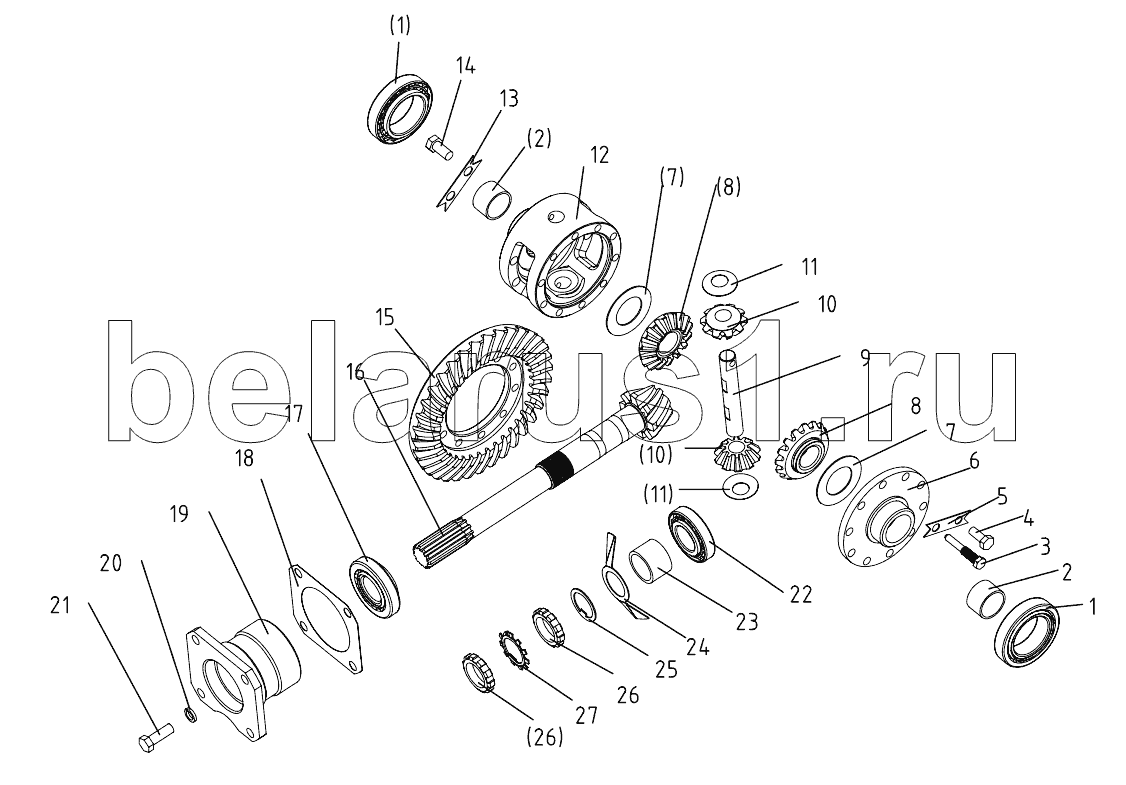

Каталог запасных частей к технике: DongFeng 304EC. Rear Axle (A)
1
1
2
2
3
4
5
6
7
7
8
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 250.38.011 | 250.38.011 | Differtial assembly | |
| 1 | GB/T297-1994-32011 | Tapered roller bearing 32011 | |
| 2 | 200.38.124 | Bush | |
| 3 | GB/T5783-2000-M10x25 | Hex. head bolt M10x25 | |
| 4 | 200.38.126 | Fixing bolt, planet gear shaft | |
| 5 | 200.38.125 | Lock piece | |
| 6 | 200.38.117-1 | Differential case cover | |
| 7 | 200.38.123-1 | Shim halfshaft gear | |
| 8 | 200.38.120 | Half shaft gear | |
| 9 | 300.38.143 | Planet gear shaft | |
| 10 | 200.38.119A | Planet gear | |
| 11 | 200.38.122A-1 | Planet gear shim | |
| 12 | 200.38.116A | Differential case | |
| 13 | GB/T5786-2000-M12x1.5x25 | Fine thread hex. head bolt M12x1.5x25 | |
| 14 | 200.38.149 | Lock piece | |
| 15 | 250.38.118A | Spiral crown gear | |
| 16 | 250.38.127A | Shank-type spiral bevel pinion | |
| 17 | GB/T297-1994-31307 | Tapered roller bearing 31307 | |
| 18 | 250.38.128A | Bearing seat spiral bevel pinion | |
| 19 | GB/T297-1994-32207 | Tapered roller bearing 32207 | |
| 20 | 200.38.133 | Short spacer sleeve | |
| 21 | 200.38.145 | Oil slinger | |
| 22 | 200.38.134 | Lock piece | |
| 23 | 200.38.130 | Lock nut | |
| 24 | 200.38.131 | Lock washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
