Каталог запасных частей к технике: DongFeng 224G3. Suspension Mechanism
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

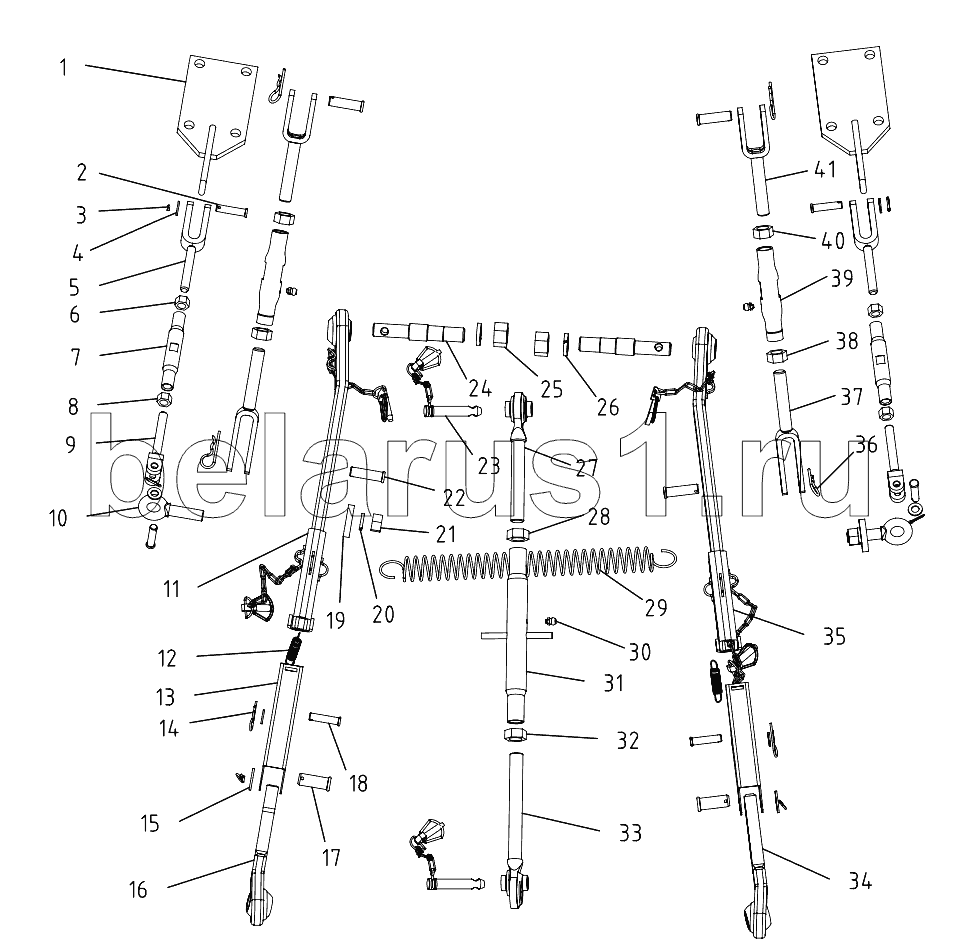

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 254G3.56.025 | Front check chain | |
| 2 | GB/T882-1986-B12x45 | Clevis pin with head B12x45 | |
| 3 | GB/T91-2000-3.2x20 | Split pin 3.2x20 | |
| 4 | GB/T97.1-2002-12 | Plain washer 12 | |
| 5 | 254G3.56.026 | Front check clevis | |
| 6 | GB/T6170-2000-M14 | Hex. nut M14 | |
| 7 | 254G3.56.130 | Adjusting sleeve | |
| 8 | GB/T6170-2000-M14 | Hex. nut M14 | |
| 9 | 254G3.56.027 | Rear check clevis | |
| 10 | 300.56.109 | Ring bolt | |
| 11 | 254G3.56A.028 | Left lower link weldment | |
| 12 | 504G3.56.110 | Spring | |
| 13 | 504G3.56.111 | Protect board | |
| 14 | 504G3.56.112 | R-pin | |
| 15 | GB/T97.1-2002-20 | Plain washer 20 | |
| 16 | 254G3.56A.030 | Left regulate board | |
| 17 | GB/T882-1986-B20x50 | Clevis pin with head B20x50 | |
| 18 | GB/T882-1986-B12x50 | Clevis pin with head B12x50 | |
| 19 | 300.56.157 | Disk | |
| 20 | GB/T93-1987-16 | Spring Lock washer16 | |
| 21 | GB/T6170-2000-M16 | Hex .nut M16 | |
| 22 | GB/T882-1986-B16x52 | Clevis pin with head B16x52 | |
| 23 | 200.56.016 | Coupling pin of upper link | |
| 24 | 254G3.56.101 | Lower link shaft | |
| 25 | GB/T6170-2000-M24 | Hex. nut M24 | |
| 26 | GB/T93-1987-24 | Spring lock washer 24 | |
| 27 | 254G3.56.019 | Upper link rear adjusting rod | |
| 28 | GB/T6171-2000-M22x2 (left) | Hex. nut M22x2 | |
| 29 | 200.56.102 | Spring coil | |
| 30 | JB/T7940.1-1995-M6 | Grease nipple M6 | |
| 31 | 254G3.56.018 | Turn buckle of upper link | |
| 32 | GB/T6171-2000-M22x2 | Hex. nut M22x2 | |
| 33 | 254G3.56.017 | Upper link front adjusting rod | |
| 34 | 254G3.56A.031 | Right regulate board | |
| 35 | 254G3.56A.029 | Right lower link weldment | |
| 36 | 200.56.101-1 | R-pin | |
| 37 | 254G3.56.022 | Lower clevis of lift rod | |
| 38 | GB/T6171-2000-M20x2 (left | Hex. nut M20x2 | |
| 39 | 254G3.56.114 | Adjusting sleeve | |
| 40 | GB/T6171-2000-M20x2 | Hex. nut M20x2 | |
| 41 | 254G3.56.020 | Lift rod up clevis |
