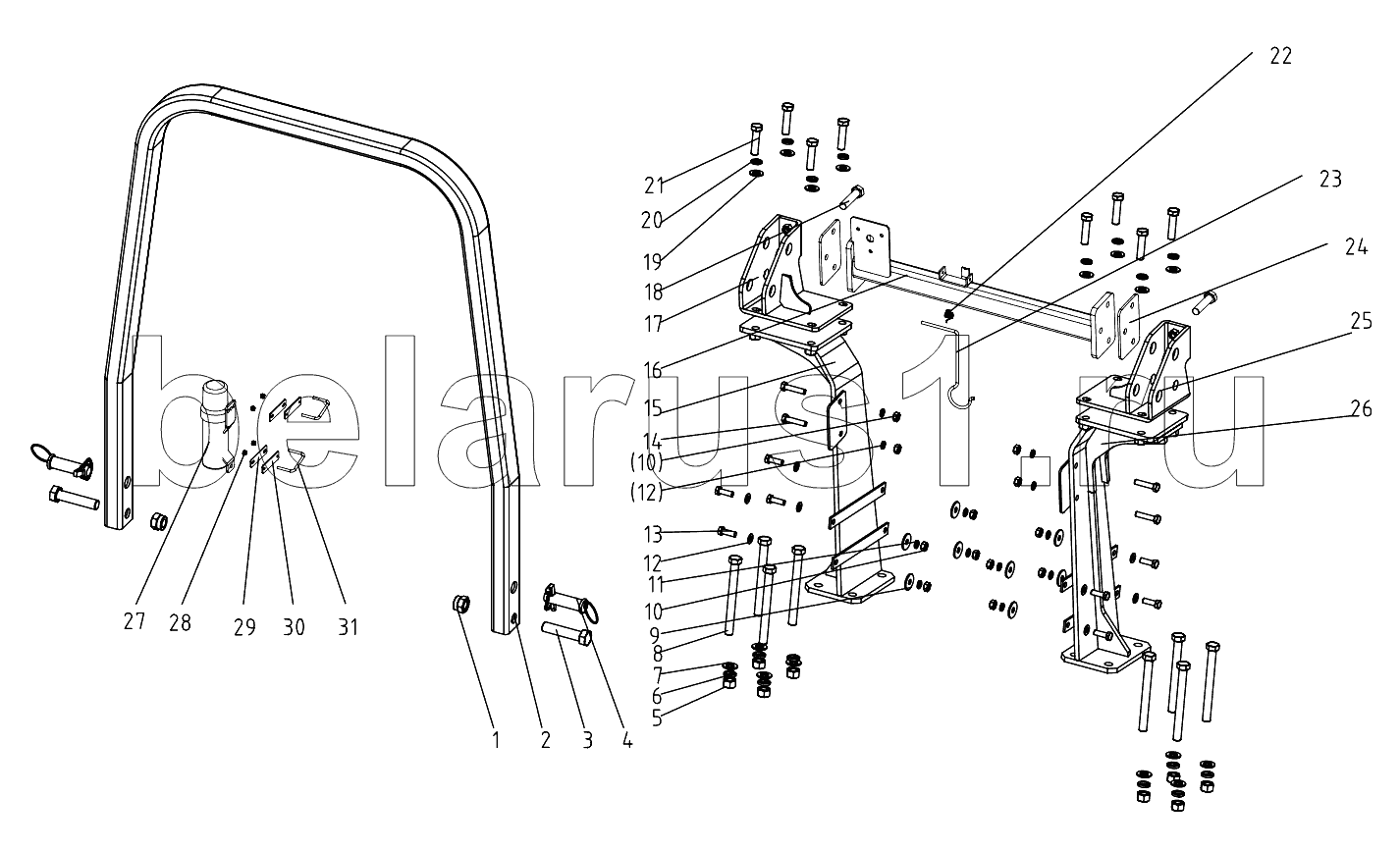

Каталог запасных частей к технике: DongFeng 224G3. Safety Frame
1
2
3
4
5
6
7
8
9
10
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T889.1-2000-M20 | Hex. nut M20 | |
| 2 | 254G3.46.101 | Safety Frame | |
| 3 | GB/T5782-2000-M20x90 | Hex. head bolt M20x90 | |
| 4 | 254G3.46.014 | Lock pin | |
| 5 | GB/T6170-2000-M6 | Hex. Nut M6 | |
| 6 | GB/T93-1987-16 | Spring Lock washer16 | |
| 7 | GB/T97.1-2002-16 | Plain washer 16 | |
| 8 | GB/T5782-2000-M16x160 | Hex. head bolt M16x160 | |
| 9 | GB/T5287-1985-10 | Plain washer 10 | |
| 10 | GB/T6170-2000-M20 | Hex. nut M10 | |
| 11 | GB/T93-1987-10 | Spring lock washer 10 | |
| 12 | GB/T97.1-2002-10 | Plain washer 10 | |
| 13 | GB/T5783-2000-M10x30 | Hex. head bolt M10x30 | |
| 14 | GB/T5782-2000-M10x45 | Hex. head bolt M10x45 | |
| 15 | 254G3.46.016 | Left rear column | |
| 16 | 254G3.46.015-1 | Rear cross beam | |
| 17 | 254G3.46.013 | Left bracket, Safety frame | |
| 18 | GB/T5783-2000-M12x65 | Hex. head bolt M12x65 | |
| 19 | GB/T97.1-2002-14 | Plain washer 14 | |
| 20 | GB/T93-1987-14 | Spring lock washer 14 | |
| 21 | GB/T5783-2000-M14x50 | Hex. head bolt M14x50 | |
| 22 | 304G2-6.51.311 | Torsional spring | |
| 23 | 304G2-6.51.313 | Clasp | |
| 24 | 254G3.46.105 | Rubber blanket | |
| 25 | 254G3.46.011 | Right bracket, Safety frame | |
| 26 | 254G3.46.012 | Right rear column | |
| 27 | 254-5.49.103 | Manual Holder | |
| 28 | GB/T6182-2000-M8 | Hex. nut M10 | |
| 29 | 254G3.46.104 | Rubber blanket | |
| 30 | 254G3.46.103 | Fixed plate | |
| 31 | 254G3.46.102 | U bolts |
