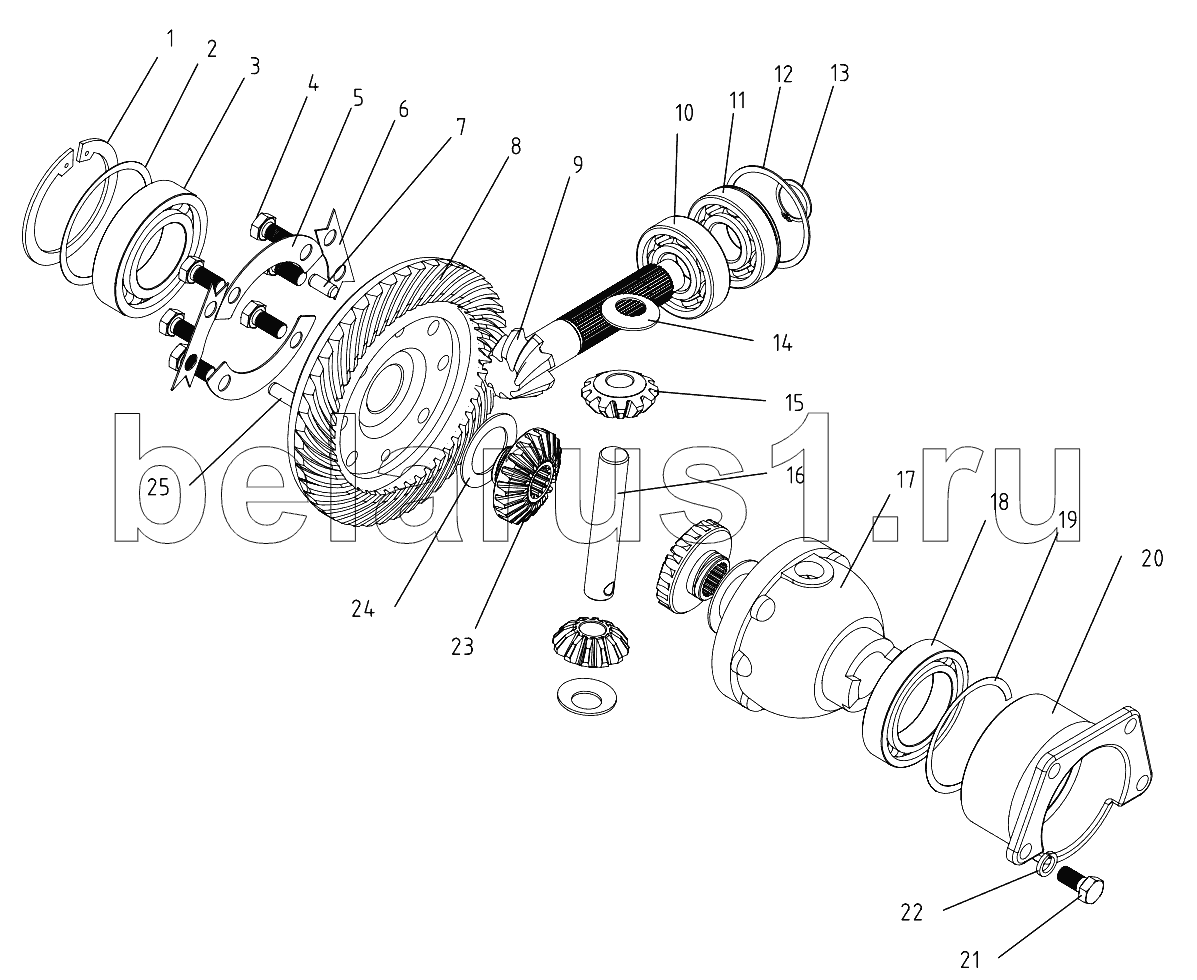

Каталог запасных частей к технике: DongFeng 224G3. Rear Axle (A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T893.2-1986-85 | Circlip for hole 85 | |
| 2 | 254G3.38.114/114/115/116 | Big adjusting shims | |
| 3 | GB/T276-1994-6209 | Ball bearing 6209 | |
| 4 | GB/T5786-2000-M10x1x25 | Hex. head bolt M10x1x25 | |
| 5 | 254G3.38.126 | Lock piece | |
| 6 | 254G3.38.125 | Lock piece | |
| 7 | GB/T119.2-2000-B8x18 | Round pin B8x18 | |
| 8 | 254G3.38.133 | Spiral-bevel gear | |
| 9 | 254G3.38.103 | Shank-type spiral bevel pinion | |
| 10 | GB/T276-1994-6305 | Ball bearing 6305 | |
| 11 | GB/T276-1994-6305N | Ball bearing 6305N | |
| 12 | GB/T305-1998-62/67.7 | Stop ring 62/67.7 | |
| 13 | 254G3.38.102 | Bead flange 25 | |
| 14 | 254G3.38.132 | Planet gear shim | |
| 15 | 254G3.38.130 | Planet gear | |
| 16 | 254G3.38.131 | Planet gear shaft | |
| 17 | 254G3.38.127 | Differential housing | |
| 18 | GB/T276-1994-6010 | Ball bearing 6010 | |
| 19 | 254G3.38.111/112/113 | Little adjusting shims | |
| 20 | 254G3.38.110 | Differential case cover | |
| 21 | GB/T5783-2000-M10x20 | Hex.head bolt M10x20 | |
| 22 | GB/T93-1987-10 | Spring lock washer 10 | |
| 23 | 254G3.38.129 | Half shaft gear | |
| 24 | 254G3.38.128 | Shim, half shaft gear | |
| 25 | GB/T119.2-2000-B8x40 | Round pin B8x40 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
