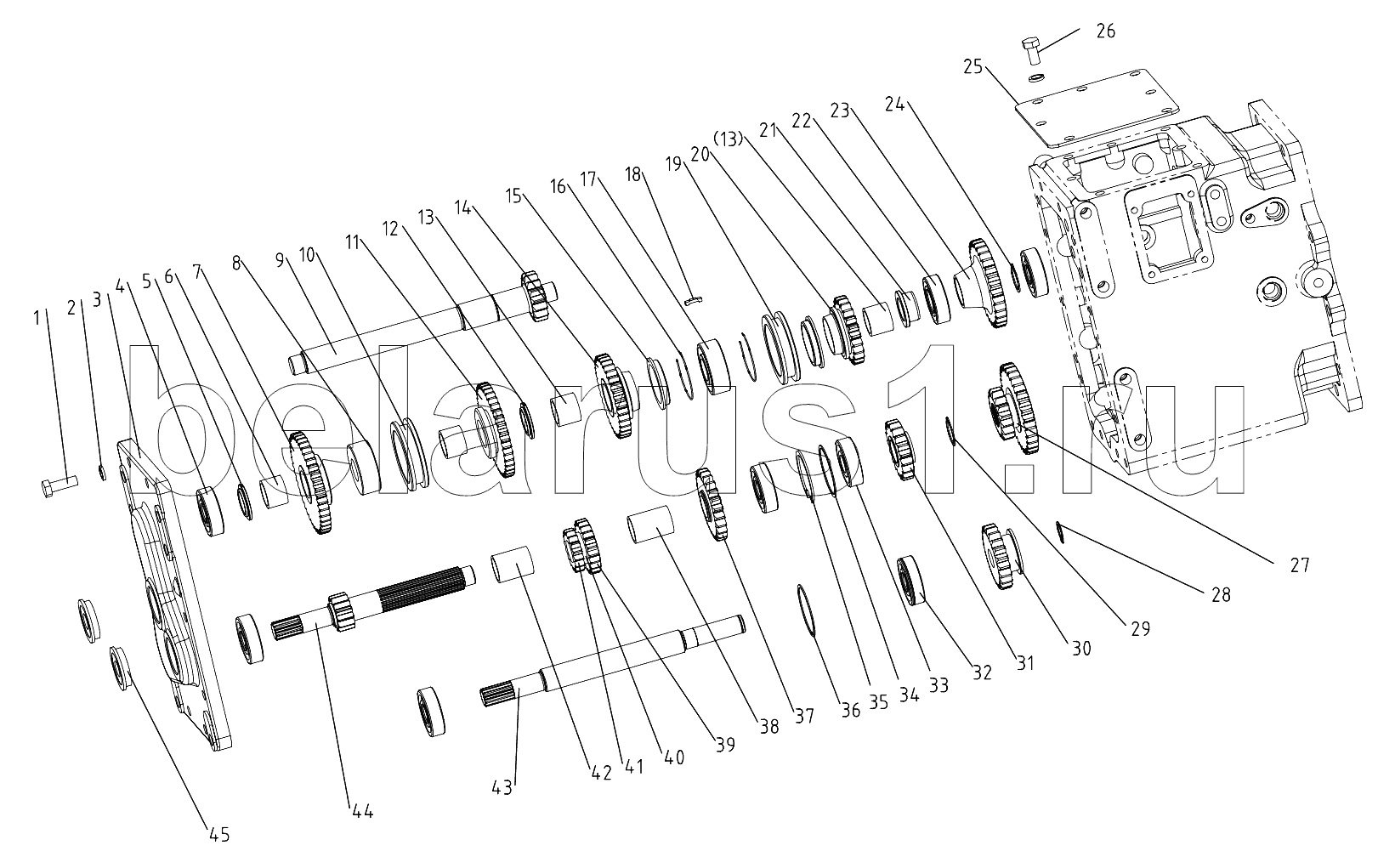

Каталог запасных частей к технике: DongFeng 224G3. Gearbox (A)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T5783-2000-M10x35 | Hex. head bolt M10x35 | |
| 2 | GB/T93-1987-10 | Spring lock washer 10 | |
| 3 | 254G3.37.107 | Front cover plate | |
| 4 | GB/T276-1994-6304 | Ball bearing 6304 | |
| 5 | 254G3.37.106 | Short spacer | |
| 6 | 254G3.37.105 | Short bushing block | |
| 7 | 254G3.37.104 | Driven gear, speed | |
| 8 | 254G3.37.108 | Splieing sleeve gear seat | |
| 9 | 254G3.37.131 | Middle shaft | |
| 10 | 254G3.37.109 | Sliding gear | |
| 11 | 254G3.37.113 | Driven gear, speed | |
| 12 | 254G3.37.115 | Short bush | |
| 13 | 254G3.37.117 | Long bush | |
| 14 | 254G3.37.116 | Driven gear, III speed | |
| 15 | 254G3.37.118 | Synthronization ring | |
| 16 | 254G3.37.122 | Spring | |
| 17 | 254G3.37.125 | Synchronizing gear seat | |
| 18 | 254G3.37.121 | Synchronizing shift | |
| 19 | 254G3.37.123 | Sliding gear sleeve | |
| 20 | 254G3.37.126 | Driven gear, IV speed | |
| 21 | 254G3.37.128 | Long bush | |
| 22 | GB/T276-1994-6205 | Ball bearing 6205 | |
| 23 | 254G3.37.130 | Driving gear, high speed | |
| 24 | 254G3.37.129 | Cirelip for shaft 28 | |
| 25 | 254G3.37.112 | Gearbox cover | |
| 26 | GB/T5783-2000-M10x20 | Hex.head bolt M10x20 | |
| 27 | 254G3.37.133 | Driven gear, high-low speed | |
| 28 | 254G3.37.134 | Circlip for shaft 18 | |
| 29 | 504G3.29.118 | Circlip for shaft 25 | |
| 30 | 254G3.37.135 | Driven gear | |
| 31 | 254G3.37.132 | Driving gear | |
| 32 | GB/T276-1994-6304-N | Ball bearing 6304-N | |
| 33 | GB/T292-1994-7304B | Ball bearing 7304B | |
| 34 | 254G3.37.233/234/235 | Adjust mat | |
| 35 | GB/T893.1-1986-52 | Bead flange 52 | |
| 36 | GB/T305-1998-52/57.9 | Locating snap ring 52/57.9 | |
| 37 | 254G3.37.136 | Driving gear, speed | |
| 38 | 254G3.37.137 | Long spacer, input speed | |
| 39 | 254G3.37.138 | Driving gear, speed | |
| 40 | 254G3.37.139 | Spacer, input spaft | |
| 41 | 254G3.37.141 | Driving gear, speed | |
| 42 | 254G3.37.142 | Spacer, input speed | |
| 43 | 254G3.37.102 | Transmission shaft | |
| 44 | 254G3.37.103 | Input spaft | |
| 45 | 254G3.37.011 | Seal ring 20x40x7 |
