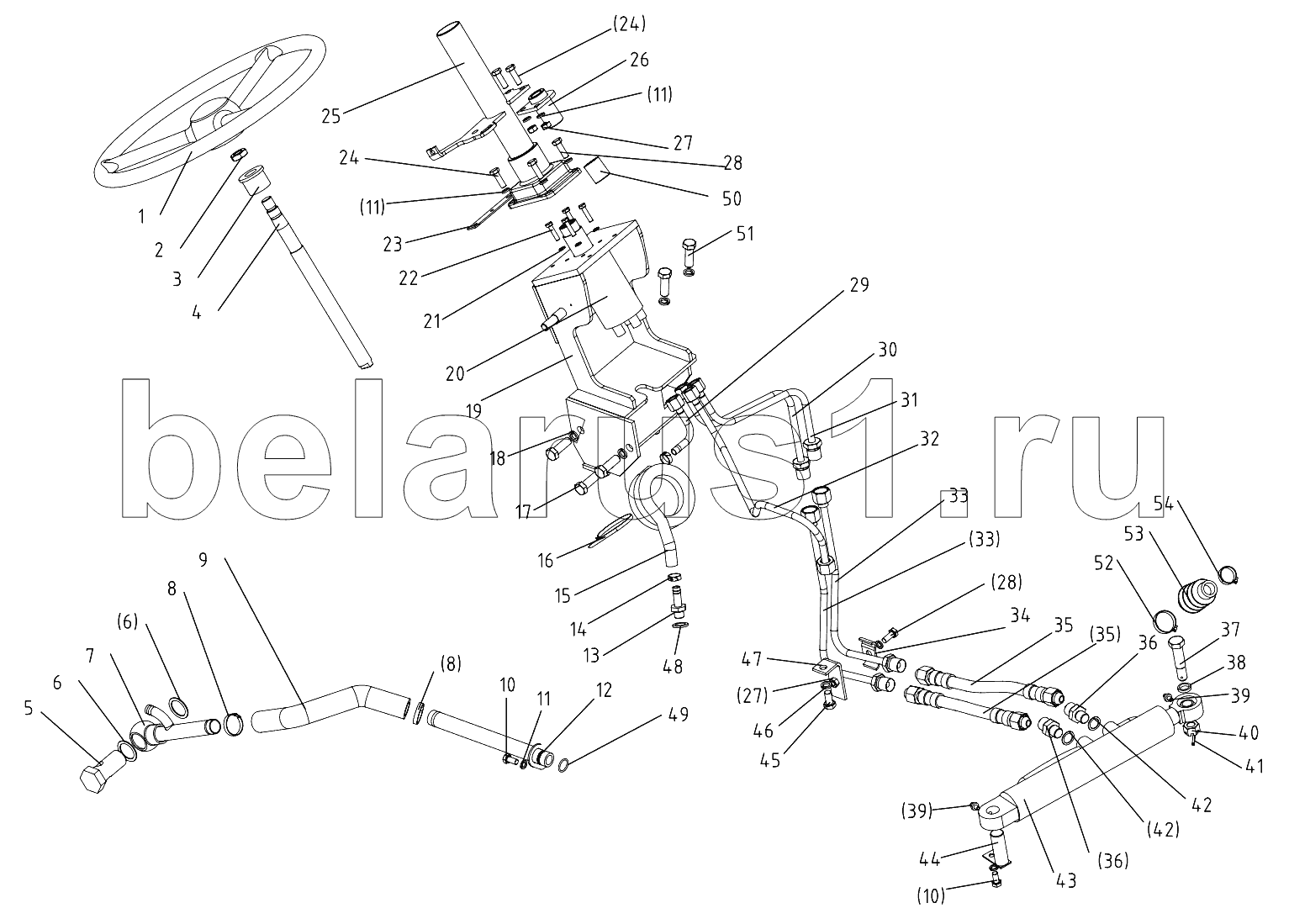

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200.40.015 | Steering wheel assy | |
| 2 | GB/T6171-2000-M16x1.5 | Hex. nut M16x1.5 | |
| 3 | 304.40.112 | Rubber sleeve | |
| 4 | 254G3.40.126 | Steering shaft | |
| 5 | 254G3.40.101 | Hollow bolt M27x2 | |
| 6 | JB/T982-1977-27 | Copper washer 27 | |
| 7 | 254G3.40.011 | Oil return pipe-rear part | |
| 8 | JB/T8870-1999-2A (25-38) | Hoop | |
| 9 | 254G3.40.102 | Lose the soft tube of oil | |
| 10 | GB/T5783-2000-M8x16 | Hex. head bolt M8x16 | |
| 11 | GB/T93-1987-8 | Spring lock washer 8 | |
| 12 | 254G3.40.012 | Oil return pipe-front part | |
| 13 | 254G3.40.105 | Connector of oil return pipe | |
| 14 | JB/T8870-1999-2A (13-20) | Hoop 2A (13-20) | |
| 15 | JB/T6015-2000-10-800 | Rubber pipe 10-800 | |
| 16 | ZD150x8 | Clingulum | |
| 17 | GB/T5783-2000-M12x35 | Hex. head bolt M12x35 | |
| 18 | GB/T93-1987-12 | Spring lock washer 12 | |
| 19 | 254G3.40.024 | Bracket weldment | |
| 20 | 109R-1-50-08-D | Full hydraulic steering gear | |
| 21 | GB/T93-1987-6 | Spring lock washer 6 | |
| 22 | GB/T5783-2000-M6x25 | Hex. head bolt M6x25 | |
| 23 | 254G3.40.173 | Adjustment fix plate | |
| 24 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 25 | 254G3.40.023 | Steering column weldment | |
| 26 | 254G3.40.025 | Shift fix plate | |
| 27 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 28 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 29 | 254G3.40.016 | Oil return pipe assy | |
| 30 | 254G3.40.018 | Steering cylinder pipe (2) | |
| 31 | 254G3.40.017 | Steering cylinder pipe (1) | |
| 32 | 254G3.40.013 | Oil delivery pipe weldment | |
| 33 | 254G3.40.014 | Oil delivery pipe weldment, front part | |
| 34 | 254G3.40.106 | Clamping plate | |
| 35 | 550.40.023 | Hose assembly | |
| 36 | 550.40.102 | Connecting joint | |
| 37 | GB/T28-1988-M14x65 | Hex. head bolt M14x65 | |
| 38 | 254G3.40.120 | Press-in sleeve | |
| 39 | JB/T7940.2-1995-45°M6 | Angle grease nipple 45° M6 | |
| 40 | GB/T6181-1986-M14 | Hex. thin slotted nut M14 | |
| 41 | GB/T91-2000-3.2x28 | Split pin 3.2x28 | |
| 42 | JB/T982-1977-16 | Airproof washer combination 1 | |
| 43 | 254G3.40.021 | Steering cylinder assy | |
| 44 | 254G3.40.022 | Fix pin | |
| 45 | GB/T5783-2000-M10x20 | Hex.head bolt M10x20 | |
| 46 | GB/T93-1987-10 | Spring lock washer 10 | |
| 47 | 254G3.40.103 | Fix plate | |
| 48 | JB/T982-1977-14 | Washer 14 | |
| 49 | GB/T3452.1-1992-17x2.65 | O-ring seal 15x2.65 | |
| 50 | 254G3.40.134 | Bush | |
| 51 | GB/T5783-2000-M12x30 | Hex. head bolt M12x30 | |
| 52 | JB/T8870-1999-2A (44-64) | Hoop 2A (44-64) | |
| 53 | 304.40A.017 | Hose assy | |
| 54 | JB/T8870-1999-2A (19-29) | Hoop 2A (19-29) |
