Каталог запасных частей к технике: DongFeng 224G3. Front Gearbox
1
2
2
2
3
4
5
5
6
6
7
7
7
8
9
10
11
12
13
14
15
16
17
17
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

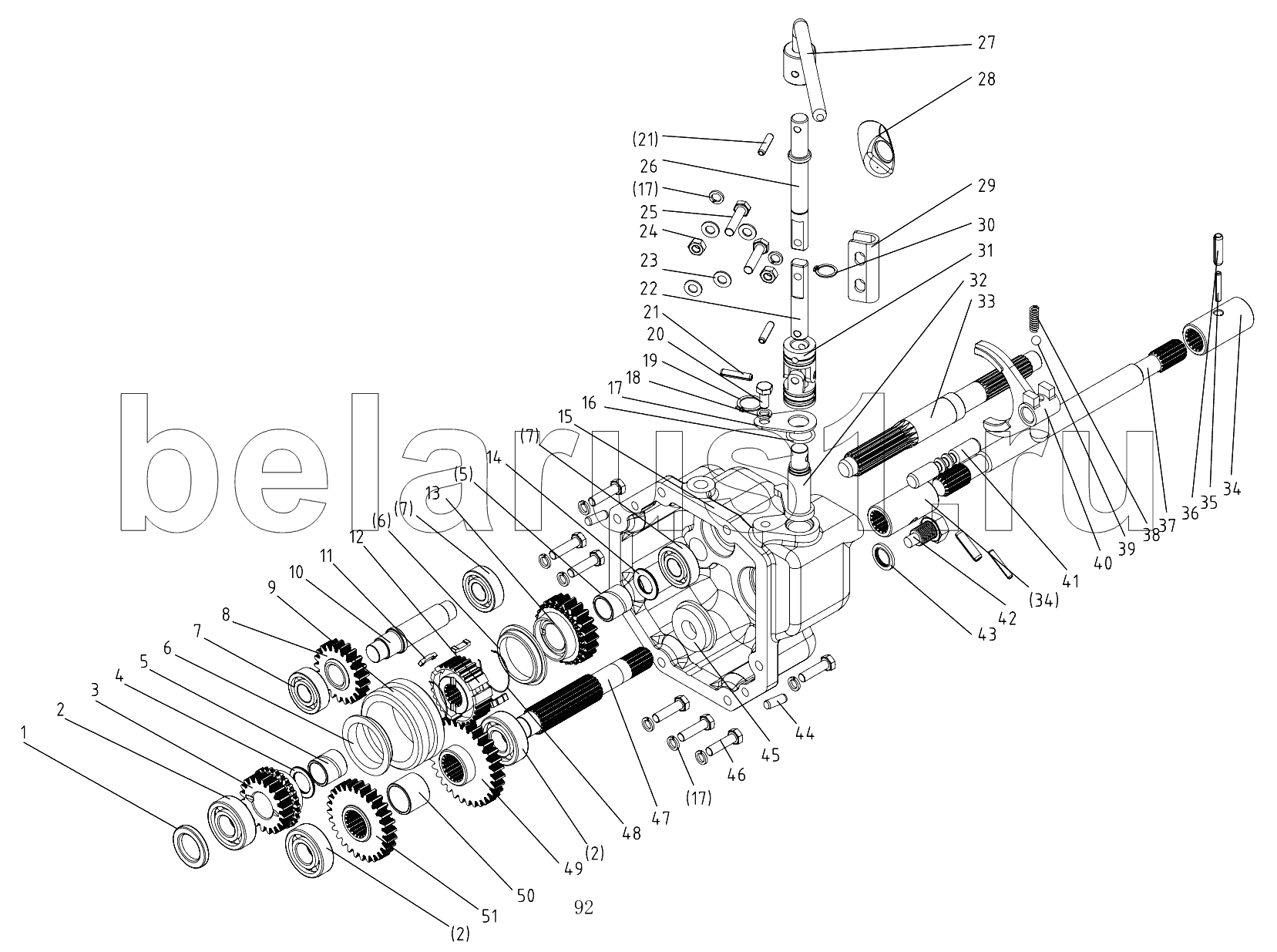

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T9877.1-1988-FB25x40x7 | Oil seal FB25x40x7 | |
| 2 | GB/T276-1994-6204 | Bearing 6204 | |
| 3 | 254G3.29.012 | Driving gear | |
| 4 | 254G3.29.103 | Spacing collar () | |
| 5 | 254G3.29.104 | Bush | |
| 6 | 254G3.37.118 | Synthronization ring | |
| 7 | GB/T276-1994 | Подшипник | |
| 8 | 254G3.29.109 | Middle gear | |
| 9 | 254G3.37.123 | Sliding gear sleeve | |
| 10 | 254G3.29.108 | Middle gear | |
| 11 | 254G3.37.121 | Synchronizing shift | |
| 12 | 254G3.29.107 | Synthronizing gear seat | |
| 13 | 254G3.29.011 | Driving gear | |
| 14 | 254G3.29.140 | Spacing collar () | |
| 15 | 254G3.29.101 | Gearbox housing | |
| 16 | GB/T3452.1-1992-20x2.65 | O ring 20x2.65 | |
| 17 | 504G3.37.168 | Baffle | |
| 18 | GB/T93-1987-8 | Spring lock washer 8 | |
| 19 | GB/T894.1-1986-18 | Bead flange 18 | |
| 20 | GB/T5783-2000-M8x16 | Hex. head bolt M8x16 | |
| 21 | GB/T879.1-2000-6x30 | Pin 6x30 | |
| 22 | 254G3.29.142 | Joint shaft | |
| 23 | GB/T97.1-2002-8 | Plain washer 8 | |
| 24 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 25 | GB/T5783-2000-M8x35 | Hex. Head bolt M8x35 | |
| 26 | 254G3.29.141 | Short joint shaft | |
| 27 | 254G3.29.014 | Shift level | |
| 28 | 504G3.29.020 | Shift level handle | |
| 29 | 504G3.29.129 | Adjusting plate | |
| 30 | GB/T894.1-1986-15 | Circlip for shaft 15 | |
| 31 | 504G3.29.015 | Gimbal | |
| 32 | 254G3.29.013 | Shift lever | |
| 33 | 254G3.29.102 | Input shaft | |
| 34 | 254G3.29.116 | Linking sleeve | |
| 35 | GB/T879.1-2000-5x30 | Pin 5x30 | |
| 36 | GB/T879.1-2000-8x30 | Slotted spring pin 8x30 | |
| 37 | 254G3.29.117 | Shaft | |
| 38 | 254G3.37.163 | Positioning spring | |
| 39 | GB/T308-2002 | Шарик | |
| 40 | 254G3.29.111 | Shift fork | |
| 41 | 254G3.29.118 | Patrol fork shaft | |
| 42 | 200.38.024 | Oil drain plug | |
| 43 | 12.37.149 | Combined seal washer | |
| 44 | GB/T119.2-2000-B8x22 | Round pin B8x22 | |
| 45 | 254G3.37.011 | Seal ring 20x40x7 | |
| 46 | GB/T5783-2000-M8x30 | Hex. head bolt M8x30 | |
| 47 | 254G3.29.113 | Spacer | |
| 48 | 254G3.37.122 | Spring | |
| 49 | 254G3.29.112 | Priven gear | |
| 50 | 254G3.29.114 | Spacer | |
| 51 | 254G3.29.115 | Driving gear |
