Каталог запасных частей к технике: DongFeng 224G3. Foot Mud Shields Rest
1
2
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
13
14
15
16
17
18
18
19
19
20
20
20
21
21
22
22
23
24
25
26
27
27
28
29
29
29
30
31
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

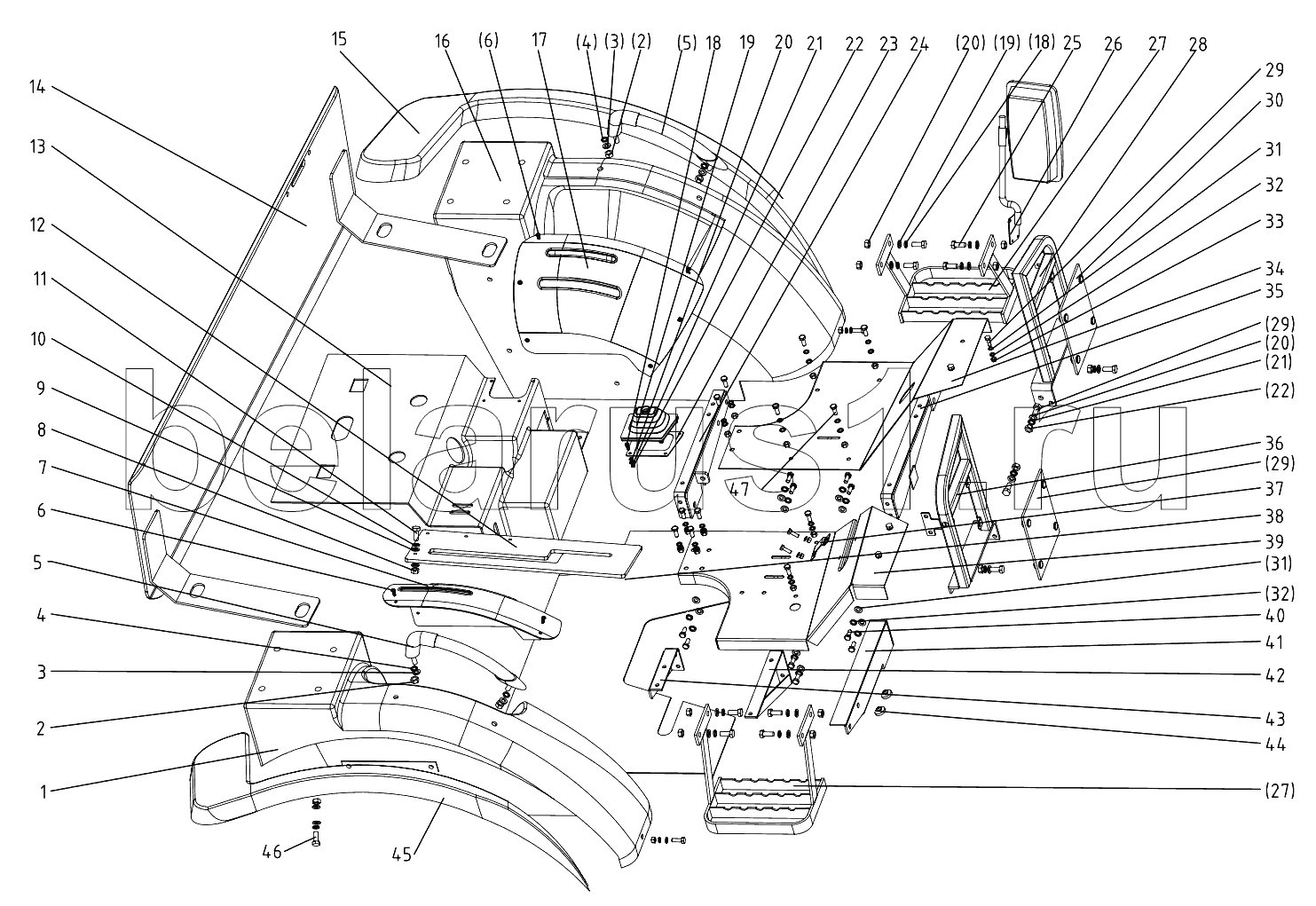

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 254G3.51.023 | Right mud Shield | |
| 2 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 3 | GB/T97.1-2002-10 | Plain washer 10 | |
| 4 | GB/T93-1987-10 | Spring lock washer 10 | |
| 5 | 404-11.51.104 | Handle hold | |
| 6 | GB/T918-1985-M5x25 | Philips pan head screw M5x25 | |
| 7 | 254G3.51.121-1 | Right mud Shield Boot | |
| 8 | GB/T6170-2000-M6 | Hex. Nut M6 | |
| 9 | GB/T97.1-2002-6 | Plain washer 6 | |
| 10 | GB/T93-1987-6 | Spring lock washer 6 | |
| 11 | GB/T818-1985- M6x25 | Philips pan head screw M6x25 | |
| 12 | 254G3.51.103 | Parking brake safeguard | |
| 13 | 254G3.51.105A-1 | Close floor | |
| 13 | 254G3.51.105-1 | Close floor | |
| 14 | 254G3.51.024 | Rear registration mark ban | |
| 15 | 254G3.51.131 | Left pinna ban | |
| 16 | 254G3.51.013 | Left mud Shield | |
| 17 | 254G3.51.110-1 | Left mud Shield Boot | |
| 18 | GB/T67-2000-M5x25 | Philips pan head screw M5x25 | |
| 19 | 254G3.51.114 | rubber boot | |
| 20 | GB/T93-1987-5 | Spring lock washer 5 | |
| 21 | GB/T97.1-2002-5 | Plain washer 5 | |
| 22 | GB/T6170-2000-M5 | Nut M5 | |
| 23 | 254G3.51.122 | Selector board | |
| 24 | 254G3.51.020 | Left-rear bracket joint | |
| 25 | GB/T5783-2000-M10x30 | Hex. head bolt M10x30 | |
| 26 | 1B17382x0001 | Rear view mirror | |
| 27 | 254G3.51.016 | Ladder frame | |
| 28 | 254G3.51.010-1 | Left Windscreen mount | |
| 29 | GB/T5783-2000-M10x25 | Hex. head bolt M10x25 | |
| 30 | 254G3.51.012 | Windscreen | |
| 31 | GB/T97.1-2002-8 | Plain washer 8 | |
| 32 | GB/T93-1987-8 | Spring lock washer 8 | |
| 33 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 34 | 254G3.51.014 | Left foot rest | |
| 35 | 254G3.51.021 | Left-middle bracket joint | |
| 36 | 254G3.51.011-1 | Right Windscreen mount | |
| 37 | 254G3.51.109 | web plate | |
| 38 | 254G3.51.101 | Rubber floor | |
| 39 | 254G3.51.015 | Right foot rest | |
| 40 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 41 | 254G3.51.019 | Ladder bracket joint | |
| 42 | 254G3.51.018 | Right-middle bracket joint | |
| 43 | 254G3.51.017 | Right-rear bracket joint | |
| 44 | GB/T5783-2000-M8x45 | Hex. head bolt M8x45 | |
| 45 | 254G3.51.231 | Right pinna ban | |
| 46 | GB/T5783-2000-M6x20 | Hex.head bolt M6x20 | |
| 47 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 |
