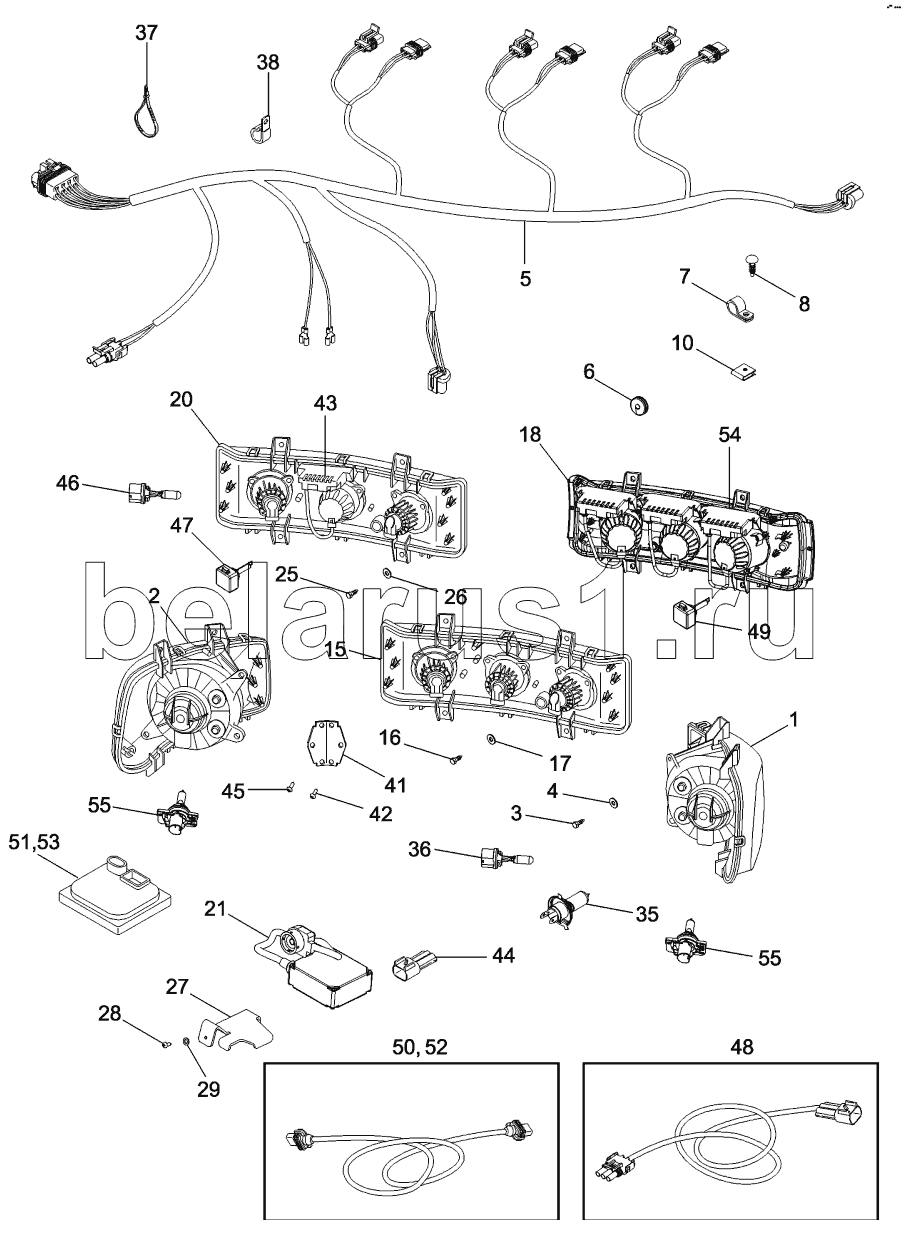

Каталог запасных частей к технике: CASE IH MX-305 Magnum. HEADLAMPS, BSN Z6RZ02943
1
1
2
2
3
4
4
5
6
7
8
10
15
16
17
18
20
21
25
26
27
28
29
35
36
37
38
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 87309030 | HEADLAMP | |
| 1 | 87455675 | HEADLAMP | |
| 2 | 87309029 | HEADLAMP | |
| 2 | 87455674 | HEADLAMP | |
| 3 | 779-14619 | SCREW | |
| 4 | 259713A1 | CLIP | |
| 4 | 495-21031 | WASHER | |
| 5 | 87366273 | HARNESS | |
| 6 | 411632A1 | GROMMET | |
| 7 | 515-22159 | CLAMP | |
| 8 | 93199C1 | FASTENER | |
| 10 | 96900C1 | NUT | |
| 15 | 87455676 | LAMP | |
| 16 | 779-14619 | SCREW | |
| 17 | 495-21031 | WASHER | |
| 18 | 87455677 | LAMP | |
| 20 | 87308895 | LAMP | |
| 21 | 322332A1 | BALLAST | |
| 25 | 779-14619 | SCREW | |
| 26 | 495-21031 | WASHER | |
| 27 | 319929A1 | SUPPORT | |
| 28 | 760-14313 | SCREW | |
| 29 | 895-11005 | WASHER | |
| 35 | 91967C1 | BULB | |
| 36 | 323093A1 | BULB | |
| 37 | 291207C1 | CLAMP | |
| 38 | 516-22127 | CLAMP | |
| 41 | 87520630 | BRACKET | |
| 42 | 87316148 | SCREW | |
| 43 | 87316350 | COVER | |
| 44 | 87366993 | CONNECTOR | |
| 45 | 760-17113 | SCREW | |
| 46 | 87316352 | BULB | |
| 47 | 84607408 | LAMP | |
| 48 | 87535841 | HARNESS | |
| 49 | 84607408 | LAMP | |
| 50 | 87573744 | CABLE | |
| 51 | 87388468 | BALLAST | |
| 52 | 87573744 | CABLE | |
| 53 | 87388468 | BALLAST | |
| 54 | 87316350 | COVER | |
| 55 | 87365799 | BULB |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
