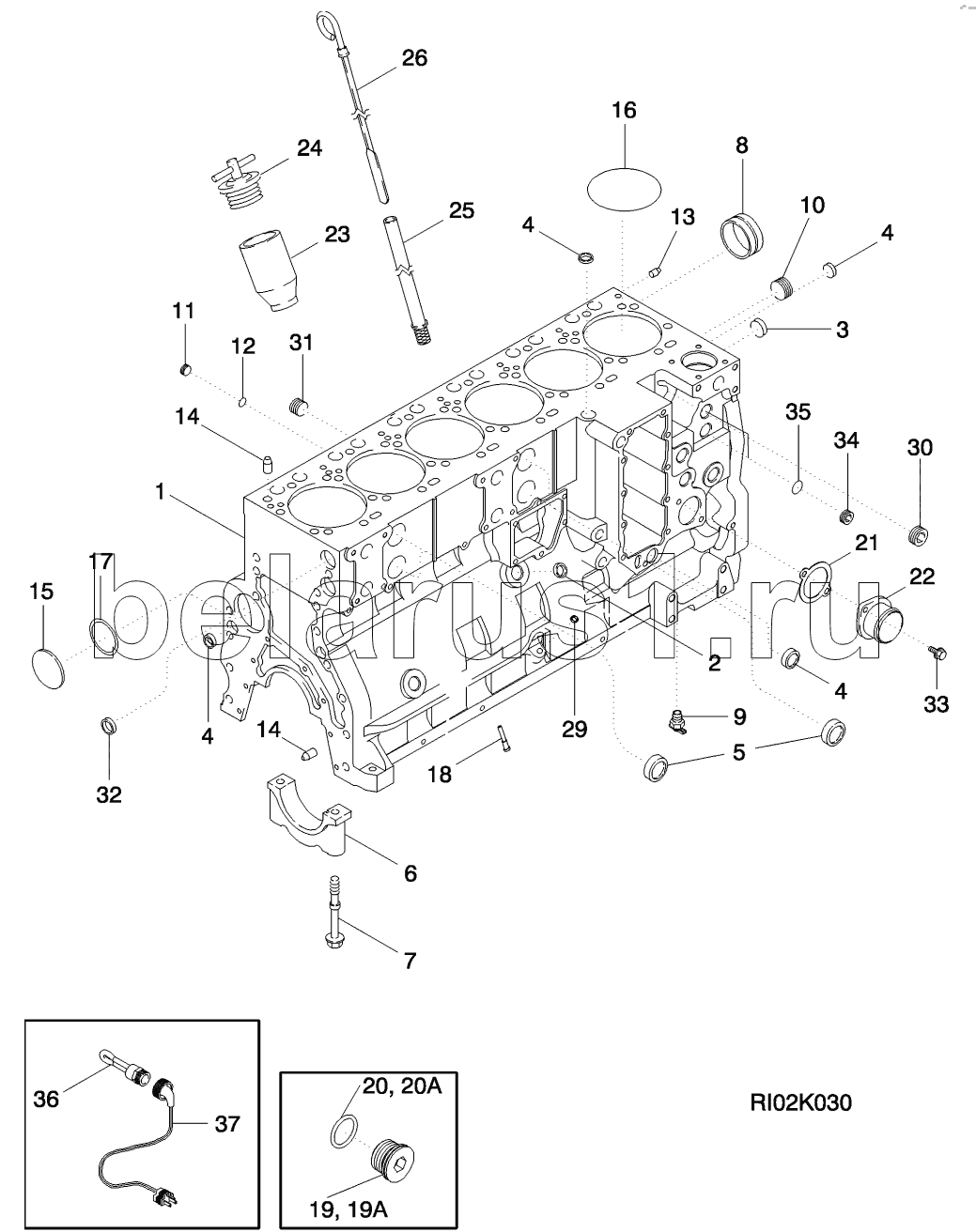

Каталог запасных частей к технике: CASE IH MX-240 Magnum. CYLINDER BLOCK
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
19A
20
20A
21
22
22
23
24
25
26
29
30
31
32
33
34
35
36
37
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 389377A3 | 389377A3 | Engine ASSY | |
| 389422A3 | 389422A3 | Engine ASSY | |
| 87401152 | 87401152 | ENGINE | |
| 87411285 | 87411285 | BLOCK | |
| 1 | J939313 | BASIC BLOCK | |
| 2 | J920706 | PLUG | |
| 3 | A77586 | PLUG | |
| 4 | A77506 | PLUG | |
| 5 | J905401 | PLUG | |
| 6 | J936058 | CAP | |
| 7 | J916369 | SCREW | |
| 8 | J945329 449019A1 | BEARING | |
| 9 | 217-103 | COCK | |
| 10 | 86625135 | PLUG | |
| 11 | J678923 | PLUG | |
| 12 | 637-72081 | O-RING | |
| 13 | J900257 | PIN | |
| 14 | J901846 | PIN | |
| 15 | 41-3044 | PLUG | |
| 16 | J907177 | O-RING | |
| 17 | J926048 | O-RING | |
| 18 | J928031 | NOZZLE | |
| 19 | J678921 | PLUG | |
| 19A | 87708865 | PLUG | |
| 20 | J678912 | O-RING | |
| 20A | NSS | NOT SERVICED SEPARATELY | |
| 21 | J945603 | GASKET | |
| 22 | J944720 | CONNECTOR | |
| 22 | 87415507 | TUBE ASSY | |
| 23 | J905408 | TUBE | |
| 24 | J934480 | CAP | |
| 25 | A77645 | TUBE | |
| 26 | J937417 | DIPSTICK | |
| 29 | J943808 | PLUG | |
| 30 | 263136 | PLUG | |
| 31 | 217-438 | PLUG | |
| 32 | J920443 | PLUG | |
| 33 | 845-8020 | BOLT | |
| 34 | 313244A1 | PLUG | |
| 35 | 313246A1 | O-RING | |
| 310493A1 | 310493A1 | KIT | |
| 36 | NSS | NOT SERVICED SEPARATELY | |
| 37 | 196466A1 | CABLE | |
| 310494A1 | 310494A1 | KIT | |
| 36 | NSS | NOT SERVICED SEPARATELY | |
| 37 | J913112 | HARNESS | |
| A78039 | A78039 | KIT | |
| 38 | 369929A1 | FASTENER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
