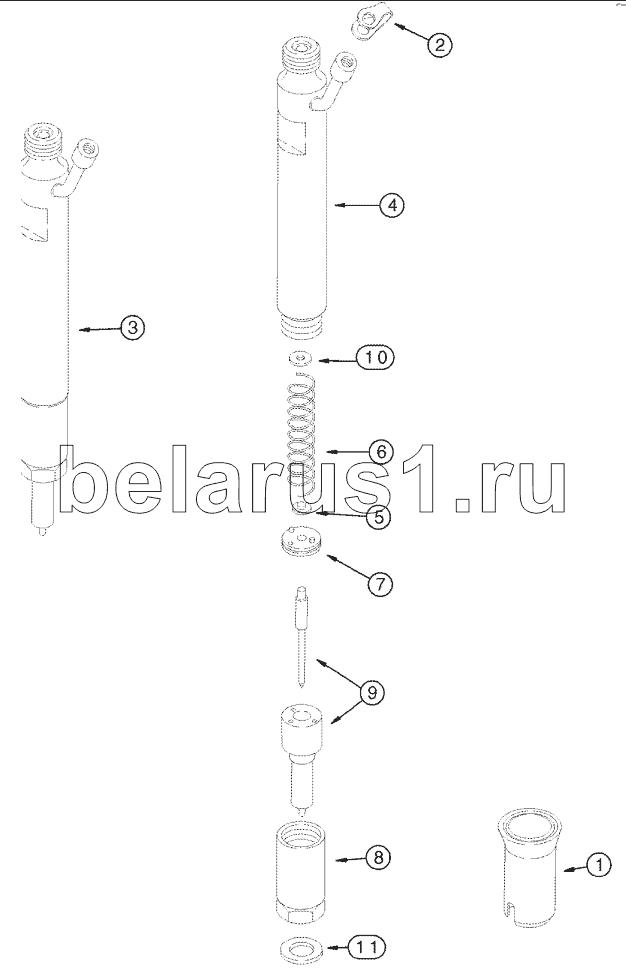

Каталог запасных частей к технике: CASE IH Axial Flow 2388. FUEL INJECTION - NOZZLE
1
2
3
4
5
6
7
8
9
10
11
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| JR931735 | JR931735 | REMAN-NOZZLE | |
| JC931735 | JC931735 | CORE-INJECTION PUMP | |
| 1 | J909886 | SEAL | |
| 2 | J903380 | SEAL | |
| 3 | J931735 | INJECTOR | |
| 4 | Body | Body | |
| 5 | Spindle | Spindle | |
| 6 | Spring | Spring | |
| 7 | Plate | Plate | |
| 8 | Nut | Nut | |
| 9 | Tip | Tip, Tooth | |
| 10 | 1806249C1 | SHIM | |
| 10 | 1806250C1 | SHIM | |
| 10 | 1806251C1 | SHIM | |
| 10 | 1806252C1 | SHIM | |
| 10 | 1806253C1 | SHIM | |
| 10 | 1806254C1 | SHIM | |
| 10 | 1806255C1 | SHIM | |
| 10 | 1806256C1 | SHIM | |
| 10 | 1806257C1 | SHIM | |
| 10 | 1806258C1 | SHIM | |
| 10 | 1806259C1 | SHIM | |
| 10 | 1806260C1 | SHIM | |
| 10 | 1806261C1 | SHIM | |
| 10 | 1806262C1 | SHIM | |
| 10 | 1806248C1 | SHIM | |
| 10 | 1806247C1 | SHIM | |
| 10 | 1806233C1 | SHIM | |
| 10 | 1806234C1 | SHIM | |
| 10 | 1806235C1 | SHIM | |
| 10 | 1806236C1 | SHIM | |
| 10 | 1806237C1 | SHIM | |
| 10 | 1806238C1 | SHIM | |
| 10 | 1806239C1 | SHIM | |
| 10 | 1806240C1 | SHIM | |
| 10 | 1806241C1 | SHIM | |
| 10 | 1806242C1 | SHIM | |
| 10 | 1806243C1 | SHIM | |
| 10 | 1806244C1 | SHIM | |
| 10 | 1806245C1 | SHIM | |
| 10 | 1806246C1 | SHIM | |
| 11 | J937142 | SEAL |
