Каталог запасных частей к технике: CASE IH Axial Flow 2388. FEEDER - SHIELDS, DRIVE
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
17
17
17
18
18
18
18
18
18
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
35
35
36
37
38
39
40

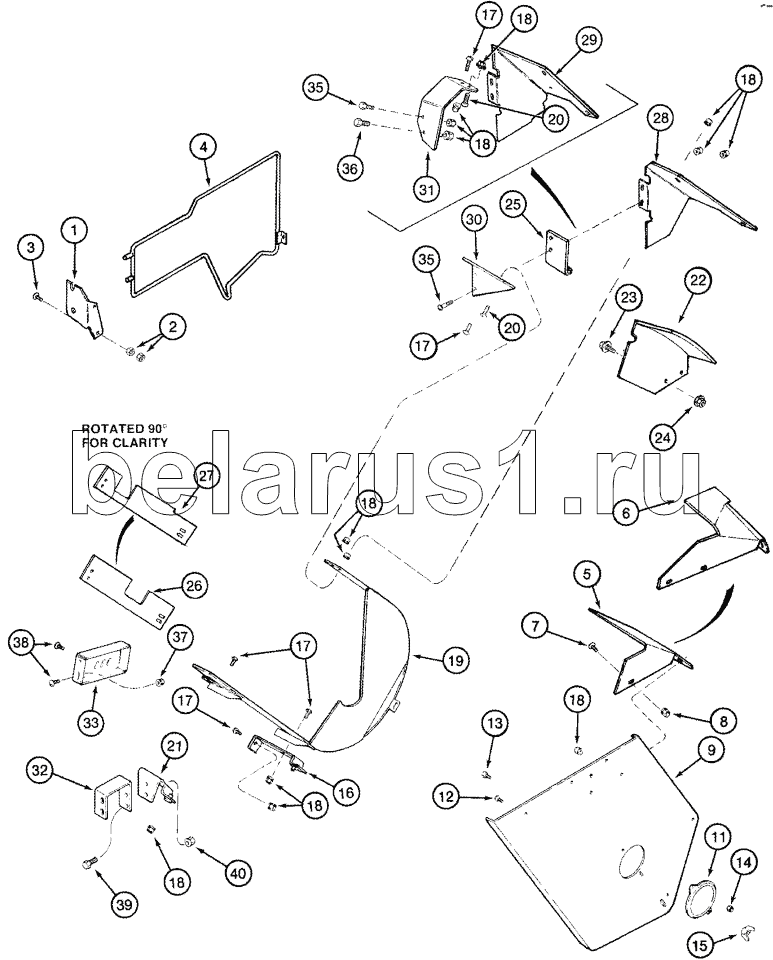

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 183740A2 | SUPPORT | |
| 2 | 231-5145 | NUT | |
| 3 | 477-73116 | SCREW | |
| 4 | 144102A2 | GUARD | |
| 5 | 175072A2 | SHIELD | |
| 6 | 175073A3 | SHIELD | |
| 7 | 477-73812 | SCREW | |
| 8 | 231-5146 | NUT | |
| 9 | 194501C6 | COVER | |
| 11 | 188315C1 | DOOR | |
| 12 | 477-82508 | SCREW | |
| 13 | 413-48 | BOLT | |
| 14 | 231-1444 | NUT | |
| 15 | 129-409 | NUT | |
| 16 | 135602A1 | SUPPORT | |
| 17 | 477-73816 | SCREW | |
| 17 | 477-73820 | SCREW | |
| 17 | 477-73812 | SCREW | |
| 18 | 231-5146 | NUT | |
| 19 | 194499C4 | HOUSING | |
| 19 | 1315088C4 | HOUSING | |
| 20 | 477-73820 | SCREW | |
| 21 | 188288C1 | SUPPORT | |
| 22 | 175680A3 | SHIELD | |
| 23 | 409-7512 | BOLT | |
| 24 | 231-5145 | NUT | |
| 25 | 194364C2 | HINGE | |
| 26 | 133952A2 | SHIELD | |
| 27 | 133950A1 | SHIELD | |
| 28 | 131155A4 | COVER | |
| 29 | 131066A4 | COVER | |
| 30 | 188323C3 | SUPPORT | |
| 31 | 1989333C3 | SUPPORT | |
| 32 | 1315084C2 | SUPPORT | |
| 33 | 1315083C1 | SUPPORT | |
| 35 | 409-7624 | BOLT | |
| 36 | 409-7620 | BOLT | |
| 37 | 231-5146 | NUT | |
| 38 | 477-73812 | SCREW | |
| 39 | 426-824 | BOLT | |
| 39 | 413-816 | BOLT | |
| 40 | 231-5148 | NUT | |
| 40 | 87301492 | NUT | |
| 41 | 496-21053 | WASHER |
