Каталог запасных частей к технике: CASE IH Axial Flow 2388. FEEDER - COVERS
1
2
3
4
5
6
7
8
9
9A
10
11
12
13
14
15
16
17
18
19
20
21
22
24
25
26
27
28
29
30
32
33
33
34
34
35
36
37
38
39
40
41
42
43

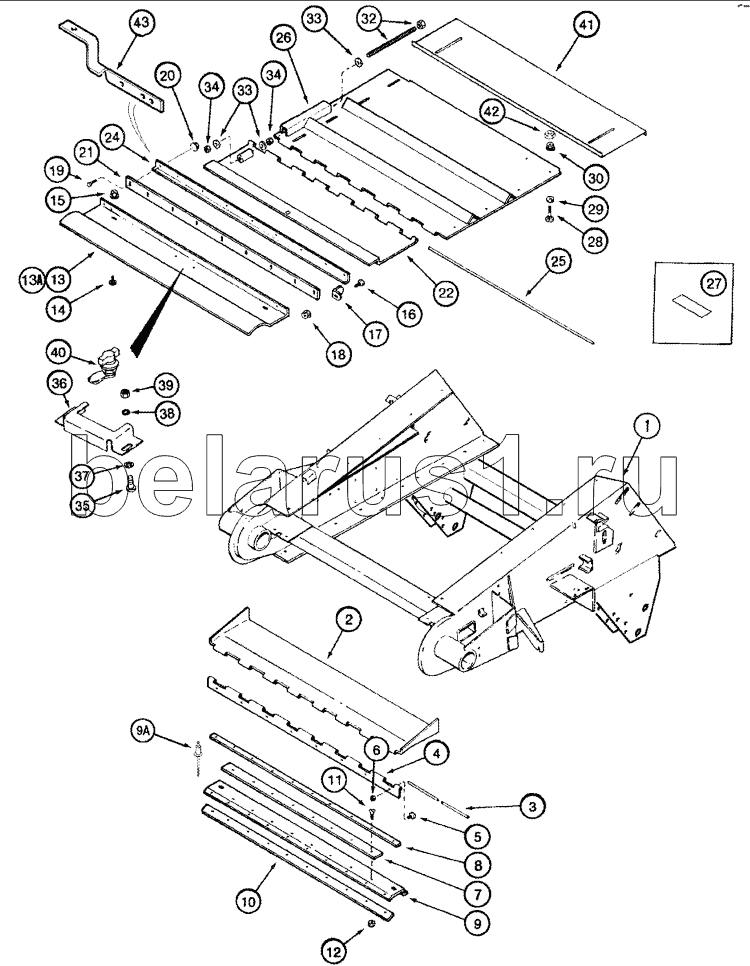

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Housing | Housing | |
| 2 | 87602131 | DOOR | |
| 3 | 175931C1 | ROD | |
| 4 | 193611C2 | HINGE | |
| 5 | 477-73816 | SCREW | |
| 6 | 231-5146 | NUT | |
| 7 | 1319964C1 | STRIP | |
| Seal | Seal | Seal | |
| 8 | 197526C1 | STRIP | |
| 9 | 1319960C1 | SUPPORT | |
| 9A | 151-559 | RIVET | |
| 10 | 1319962C1 | SEAL | |
| 11 | 443-11012 | SCREW | |
| 12 | 196922C1 | NUT | |
| 13 | 131022A1 | COVER | |
| 14 | 434-816 | BOLT | |
| 15 | 131-946 | NUT | |
| 16 | 409-7416 | BOLT | |
| 17 | 1322144C2 | CLIP | |
| 18 | 231-5144 | NUT | |
| 19 | 409-7616 | BOLT | |
| 20 | 231-5146 | NUT | |
| 21 | 634248R2 | SEAL | |
| 22 | 138250A1 | FLAP | |
| 24 | 197527C2 | ANGLE | |
| 25 | 175907C1 | ROD | |
| 26 | 186356A1 | SHEET | |
| 26 | 186357A1 | SHEET | |
| 27 | D80270 | STRIP | |
| 28 | 415-824 | BOLT | |
| 29 | 195-81030 | WASHER | |
| 30 | 131-946 | NUT | |
| 32 | 1321504C1 | SCREW | |
| 33 | 496-21081 | WASHER | |
| 34 | 425-1012 | NUT | |
| 35 | 477-73812 | SCREW | |
| 36 | 130658A1 | SUPPORT | |
| 37 | 495-11041 | WASHER | |
| 38 | 492-11038 | WASHER | |
| 39 | 425-106 | NUT | |
| 40 | 138699A2 | LOCK | |
| 41 | 1321639C1 | PLATE | |
| 42 | 425-148 | NUT | |
| 43 | 139045A2 | SUPPORT |
