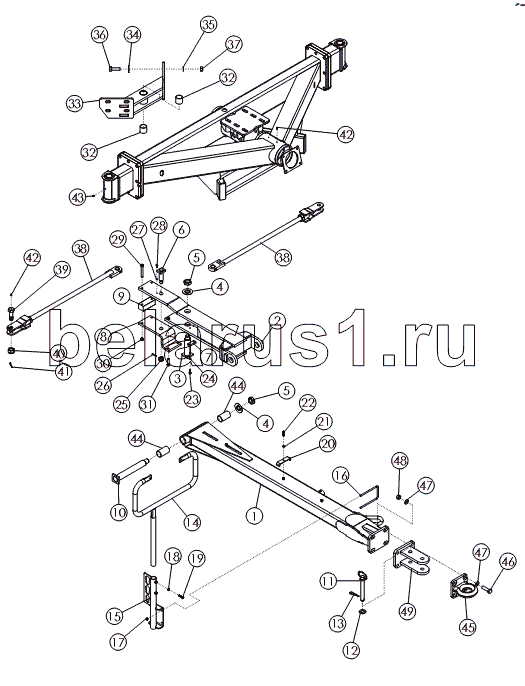

Каталог запасных частей к технике: Amity-2800 (3350). ASSY-DRAWPOLE AND STEERING LINKAGE
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
38
39
40
41
42
42
43
44
44
45
46
47
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 67678 | WLDMT-DRAWPOLE | |
| 2 | 65432 | WLDMT-HITCH | |
| 3 | 65442 | WLDMT-KING PIN | |
| 4 | 1020675 | WASHER-STAR: INTERNAL 1.25 ZP | |
| 5 | 65864 | NUT-JAM: 1.25 NF GR2 ZP | |
| 6 | 65440 | WLDMT-KING PIN HITCH | |
| 7 | 65435 | BAR-STOP PLATED | |
| 8 | 65433 | BRACKET-HITCH | |
| 9 | 65434 | BLOCK-SPACER | |
| 10 | 65441 | WLDMT-TOUNGE HINGE BOLT | |
| 11 | 1027881 | HITCH PIN | |
| 12 | 1016663 | WASHER-FLAT | |
| 13 | 1016115 | PIN-HAIR: .19 X 3.25 ZP | |
| 14 | 65887 | WLDMT-CRADLE HOSE SUPPORT | |
| 15 | 66010 | WLDMT-MOUNT HOSE SUPPORT | |
| 16 | 66005 | U-BOLT .375 X 7.13 X 4 X 7.13 | |
| 17 | 1016999 | NUT-TOPLOCK: .38 NC GR5 ZP | |
| 18 | 1013519 | NUT-JAM: .38 NC GR2 ZP | |
| 19 | 1011602 | BOLT-HEX: .38 X 1.50 NC GR5 ZP | |
| 20 | 65813 | BRACKET | |
| 21 | 1011586 | WASHER-LOCK: .38 ZP | |
| 22 | 1011601 | BOLT-HEX: .38 X 1.25 NC GR5 ZP | |
| 23 | 1011598 | BOLT-HEX: .31 X 1.00 NC GR5 ZP | |
| 24 | 1029115 | WASHER-LOCK: .31 ZP | |
| 25 | 65679 | NUT-HEX: SLOT .88 NF GR5 ZP | |
| 26 | 1012375 | PIN-COTTER: .19 X 1.50 NP | |
| 27 | 1013242 | WASHER-LOCK: .25 ZP | |
| 28 | 1011595 | BOLT-HEX: .25 X .75 NC GR5 ZP | |
| 29 | 1032507 | BOLT-HEX: .50 X 4.00 NC GR5 ZP | |
| 30 | 1027461 | NUT-TOPLOCK: .50 NC GR5 ZP | |
| 31 | 1011609 | BOLT-HEX: .50 X 2.00 NC GR5 ZP | |
| 32 | 65398 | BUSHING-MACHINED 1.765 X 2.00 X 1.875 | |
| 33 | 65760 | WLDMT-HITCH PIVOT | |
| 34 | 1030702 | WASHER-FLAT: .75 ZP | |
| 35 | 1012061 | WASHER-LOCK: .75 ZP | |
| 36 | 1016598 | BOLT-HEX: .75 X2.50 NC GR5 ZP | |
| 37 | 1011620 | NUT-HEX: .75 NC GR2 ZP | |
| 38 | 66092 | ASSY-TIE ROD | |
| 39 | 65438 | BOLT-TIE ROD ZP | |
| 40 | 65680 | NUT-HEX: 1.00 NC GR2 ZP | |
| 41 | 1013473 | PIN-COTTER: .19 X 2.00 NP | |
| 42 | 1011748 | ZERK-GREASE | |
| 43 | 1011747 | ZERK-GREASE: .25 UNF 90 DEG | |
| 44 | 67649 | BUSHING-MACHINED 1.765 X 2.00 X 3.50 | |
| 45 | 35801 | TOW RING 66,000 LB | |
| 46 | 62096 | BOLT-HEX: .75 X 2.50 NC GR8 ZP | |
| 47 | 35132 | WASHER-FLAT: SAE .75 GR8 YZP | |
| 48 | 1011434 | NUT-TOPLOCK | |
| 49 | 67679 | WLDMT-DRAWPOLE CLEVIS | |
| 50 | 65829 | JACK STAND 2000 LB |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
