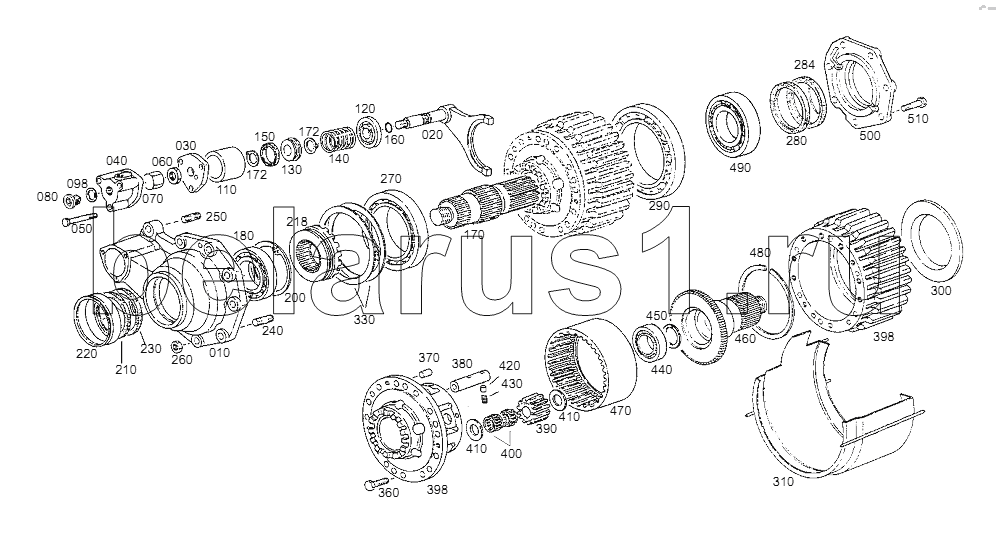

Каталог запасных частей к технике: ZF VG-2000-300. OUTPUT 5849.106.009
10
20
30
40
50
60
70
80
98
110
120
130
140
150
160
170
172
172
180
200
210
218
220
230
240
250
260
270
280
284
290
300
310
330
330
330
330
330
330
330
330
330
360
370
380
390
398
398
400
410
410
420
430
440
450
460
470
480
490
500
510
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 5841.300.552 | Bearing housing | |
| 20 | 5841.300.538 | Gear shift fork | |
| 30 | 5841.300.533 | Cover | |
| 40 | 5841.300.564 | Cover | |
| 50 | 0636.010.540 | Болт 6-гранный | |
| 60 | 5840.333.198 | Hexagon nut | |
| 70 | 5841.300.563 | Cap nut | |
| 80 | 0636.302.021 | Пробка с резьбой | |
| 98 | 0634.801.057 | Sealing ring | |
| 110 | 5841.300.373 | Bush | |
| 120 | 5841.300.374 | Washer | |
| 130 | 5841.300.375 | Piston | |
| 140 | 5841.300.653 | Compr.spring | |
| 150 | 5841.300.652 | Sealing collar | |
| 160 | 0634.306.012 | O-ring | |
| 170 | 5841.300.534 | Output shaft | |
| 172 | 0630.501.014 | Retaining ring | |
| 180 | 0750.116.206 | Ball bearing | |
| 200 | 0630.502.048 | Retaining ring | |
| 210 | 5840.333.227 | Shaft seal | |
| 218 | 5841.300.595 | G.shift sleeve | |
| 220 | 5841.300.550 | Pot | |
| 230 | 5840.333.268 | Shaft seal | |
| 240 | 0636.611.145 | Stud | |
| 250 | 0636.611.146 | Stud | |
| 260 | 0637.006.202 | Hexagon nut | |
| 270 | 5840.333.089 | Ta.roll.bearing | |
| 280 | 5840.333.233 | Shaft seal | |
| 284 | 5840.333.240 | Shaft seal | |
| 290 | 5841.300.566 | Kegelrollenlag. | |
| 300 | 5841.300.567 | Oil dam | |
| 310 | 5841.300.617 | Cover plate | |
| 330 | 5841.300.614 | Shim | |
| 330 | 5841.300.613 | Shim | |
| 330 | 5841.300.612 | Shim | |
| 330 | 5841.300.611 | Shim | |
| 330 | 5841.300.610 | Shim | |
| 330 | 5841.300.609 | Shim | |
| 330 | 5841.300.608 | Shim | |
| 330 | 5841.300.607 | Shim | |
| 330 | SHIMPLATE | Shim plate | |
| 360 | 0636.020.118 | Hexagon screw | |
| 370 | 5841.300.324 | Fitting pin | |
| 380 | 5841.300.573 | Planet shaft | |
| 390 | 5841.300.536 | Planet gear | |
| 398 | 5841.302.096 | Output gear | |
| 400 | 5841.300.548 | Needle cage | |
| 410 | 5841.300.545 | Thrust washer | |
| 420 | 0631.302.047 | Cylindrical pin | |
| 430 | 5841.300.544 | Compr.spring | |
| 440 | 5841.303.205 | Cy.roll.bearing | |
| 450 | 0630.531.222 | V-ring | |
| 460 | 5841.303.207 | Output shaft | |
| 470 | 5841.300.537 | Ring gear | |
| 480 | 5841.300.642 | Retaining ring | |
| 490 | 5840.302.754 | Roller bearing | |
| 500 | 5841.300.812 | Bearing cover | |
| 510 | 0636.011.335 | Болт 6-гранный |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
