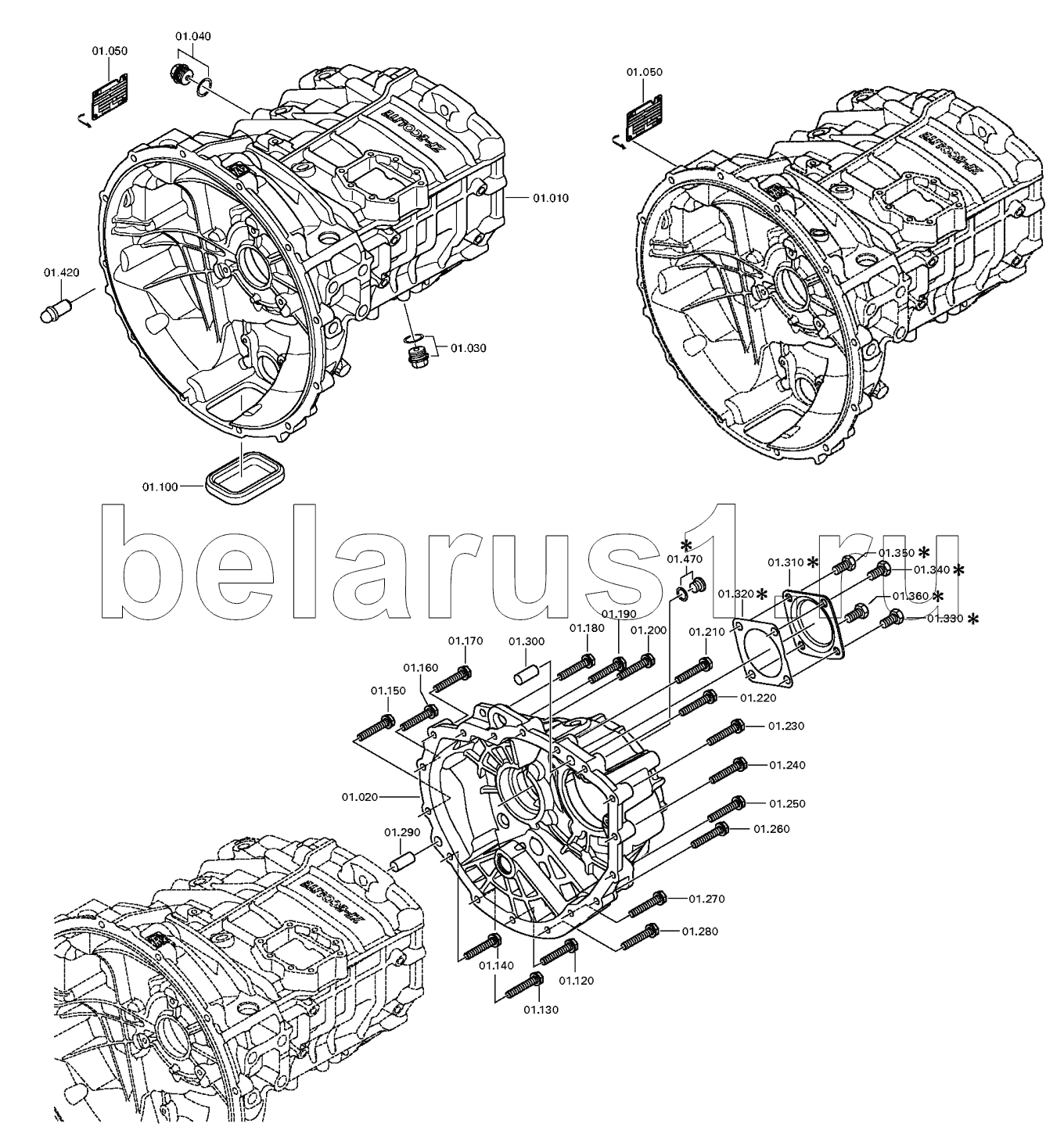

Каталог запасных частей к технике: ZF КПП ZF 6S1000TO. Картер сцепления
/1.gif)
10
20
30
30
30
40
40
40
50
50
50
50
100
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
360
420
470
470
470
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 1346.301.088 | CLUTCH HOUSING | |
| 20 | 1346.301.081 | OUTPUT HOUSING | |
| 30 | 0736.300.160 | SCREW PLUG | |
| 30 | 0730.008.637 | SEALING RING | |
| 40 | 0636.304.088 | SCREW PLUG | |
| 40 | 0730.008.637 | SEALING RING | |
| 50 | 0730.365.260 | TYPE PLATE | |
| 50 | 0730.365.259 | Type plate | |
| 100 | 1315.301.230 | PROTECTION CAP | |
| 120 | 0636.016.405 | HEXAGON BOLT | |
| 130 | 0636.016.405 | HEXAGON BOLT | |
| 140 | 0636.016.405 | HEXAGON BOLT | |
| 150 | 0636.016.405 | HEXAGON BOLT | |
| 160 | 0636.016.405 | HEXAGON BOLT | |
| 170 | 0636.016.405 | HEXAGON BOLT | |
| 180 | 0636.016.405 | HEXAGON BOLT | |
| 190 | 0636.016.405 | HEXAGON BOLT | |
| 200 | 0636.016.405 | HEXAGON BOLT | |
| 210 | 0636.016.405 | HEXAGON BOLT | |
| 220 | 0636.016.405 | HEXAGON BOLT | |
| 230 | 0636.016.405 | HEXAGON BOLT | |
| 240 | 0636.016.405 | HEXAGON BOLT | |
| 250 | 0636.016.405 | HEXAGON BOLT | |
| 260 | 0636.016.405 | HEXAGON BOLT | |
| 270 | 0636.016.405 | HEXAGON BOLT | |
| 280 | 0636.016.405 | HEXAGON BOLT | |
| 290 | 0631.306.229 | CYLINDRICAL PIN | |
| 300 | 0631.306.229 | CYLINDRICAL PIN | |
| 310 | 1328.301.170 | COVER | |
| 320 | 1238.308.201 | GASKET | |
| 330 | 0636.016.406 | HEXAGON BOLT | |
| 340 | 0636.016.406 | HEXAGON BOLT | |
| 350 | 0636.016.406 | HEXAGON BOLT | |
| 360 | 0636.016.406 | HEXAGON BOLT | |
| 420 | 6060.368.076 | Болт с шаровой головкой | |
| 470 | 0636.100.793 | SCREW PLUG | |
| 470 | 0634.801.013 | SEALING RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
