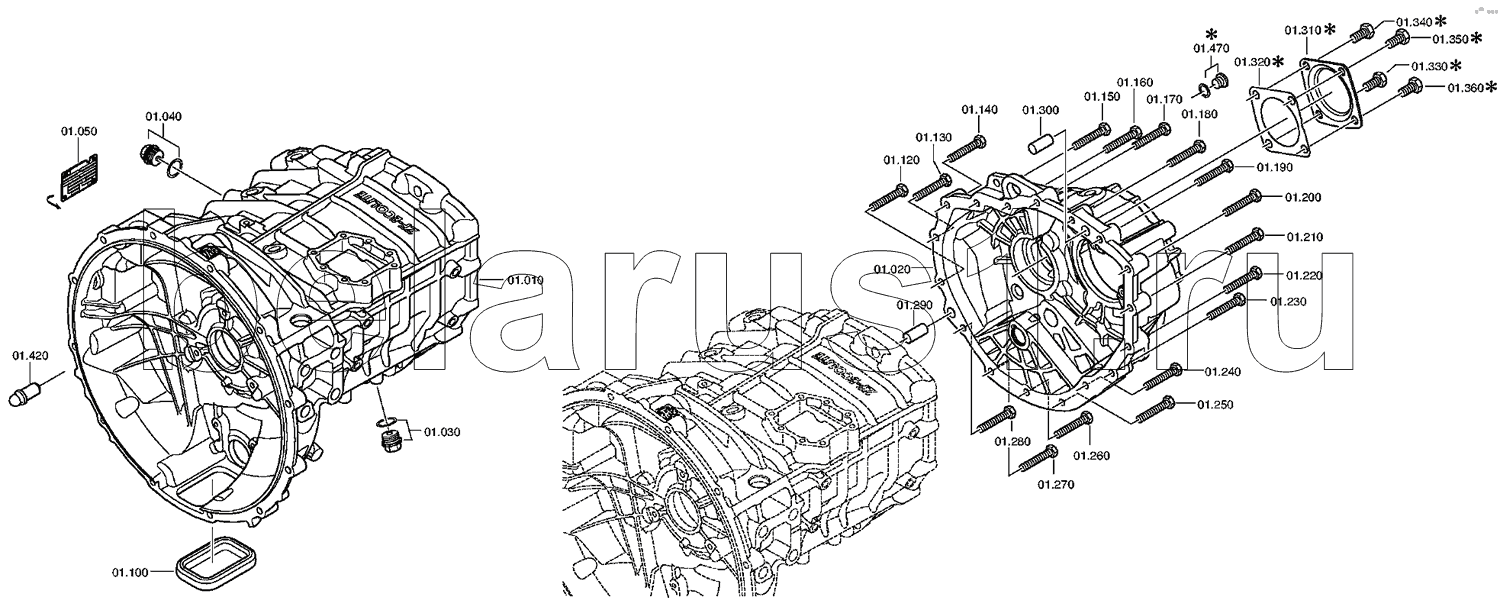

Каталог запасных частей к технике: ZF КПП ZF 6S1000TO. CLUTCH HOUSING
10
20
30
30
40
40
50
100
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
360
420
470
470
470
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 1346.301.088 | CLUTCH HOUSING | |
| 20 | 1346.301.081 | OUTPUT HOUSING | |
| 30 | 0736.300.160 | SCREW PLUG | |
| 30 | 0730.008.637 | SEALING RING | |
| 40 | 0636.304.088 | SCREW PLUG | |
| 40 | 0730.008.637 | SEALING RING | |
| 50 | 0730.365.260 | TYPE PLATE | |
| 100 | 1315.301.230 | PROTECTION CAP | |
| 120 | 0636.016.405 | HEXAGON BOLT | |
| 130 | 0636.016.405 | HEXAGON BOLT | |
| 140 | 0636.016.405 | HEXAGON BOLT | |
| 150 | 0636.016.405 | HEXAGON BOLT | |
| 160 | 0636.016.405 | HEXAGON BOLT | |
| 170 | 0636.016.405 | HEXAGON BOLT | |
| 180 | 0636.016.405 | HEXAGON BOLT | |
| 190 | 0636.016.405 | HEXAGON BOLT | |
| 200 | 0636.016.405 | HEXAGON BOLT | |
| 210 | 0636.016.405 | HEXAGON BOLT | |
| 220 | 0636.016.405 | HEXAGON BOLT | |
| 230 | 0636.016.405 | HEXAGON BOLT | |
| 240 | 0636.016.405 | HEXAGON BOLT | |
| 250 | 0636.016.405 | HEXAGON BOLT | |
| 260 | 0636.016.405 | HEXAGON BOLT | |
| 270 | 0636.016.405 | HEXAGON BOLT | |
| 280 | 0636.016.405 | HEXAGON BOLT | |
| 290 | 0631.306.229 | CYLINDRICAL PIN | |
| 300 | 0631.306.229 | CYLINDRICAL PIN | |
| 310 | 1328.301.170 | COVER | |
| 320 | 1238.308.201 | GASKET | |
| 330 | 0636.016.406 | HEXAGON BOLT | |
| 340 | 0636.016.406 | HEXAGON BOLT | |
| 350 | 0636.016.406 | HEXAGON BOLT | |
| 360 | 0636.016.406 | HEXAGON BOLT | |
| 420 | 6060.368.075 | BALL PIN | |
| 470 | SCREWPLUG | SCREW PLUG | |
| 470 | 0636.100.793 | SCREW PLUG | |
| 470 | 0634.801.013 | SEALING RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
