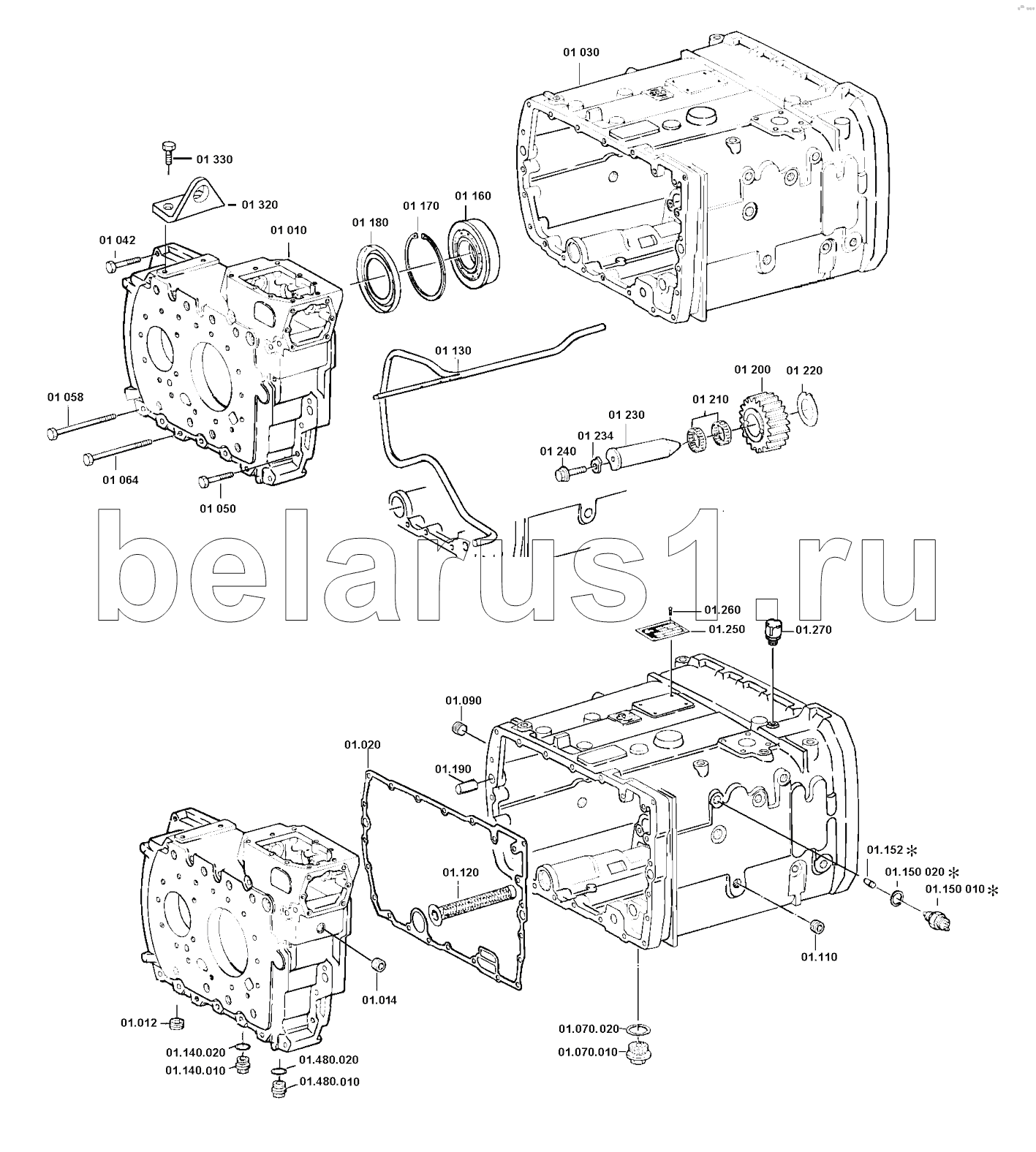

Каталог запасных частей к технике: ZF КПП ZF 16S1650. GEARBOX HOUSING
480.020
190
180
170
170
170
170
170
170
170
170
170
160
200
210
480.010
330
320
0501202797
270
260
250
240
234
230
220
152
150.020
150.010
064
636010205
058
0636010172
050
0636010172
042
030
020
014
0736303005
012
0636010205
140.020
140.010
130
120
0736303005
110
0736303005
090
070.020
070.010
010
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 480.020 | 0634801074 | Sealing ring | |
| 190 | 0731201459 | Cylinder pin | |
| 180 | 1297301004 | Oil coll.plate | |
| 170 | 0630502217 | Retaining ring | |
| 170 | 0630502216 | Retaining ring | |
| 170 | 0630502170 | Retaining ring | |
| 170 | 0630502169 | Retaining ring | |
| 170 | 0630502168 | Retaining ring | |
| 170 | 0630502167 | Retaining ring | |
| 170 | 0630502166 | Retaining ring | |
| 170 | 0630502097 | Retaining ring | |
| 170 | RETAININGRING | Retaining ring | |
| 160 | 0501398714 | Roller bearing | |
| 200 | 1295305052 | Spur gear reverse | |
| 210 | 0750115011 | Needle cage | |
| 480.010 | 0636302045 | Пробка с резьбой | |
| 480 | SCREWPLUG | SCREW PLUG | |
| 330 | 0636015264 | Hex cap screw | |
| 320 | 0091301167 | Gearbox support | |
| 0501202797 | 0501202797 | Сапун | |
| 270 | BREATHER | BREATHER | |
| 260 | 0501398460 | Blind rivet | |
| 250 | 0091307299 | Type plate | |
| 240 | 0501308588 | Hex cap screw | |
| 234 | 1295305057 | Washer | |
| 230 | 1295305056 | Reverse idler shaft | |
| 220 | 0730150064 | Thrust washer | |
| 152 | 1295212007 | Pin | |
| 150.020 | 0634801062 | Уплотнительное кольцо | |
| 150.010 | 0501210058 | Выключатель | |
| 064 | HEXAGONSCREW | Hexagon screw | |
| 636010205 | 636010205 | Hexagon screw | |
| 058 | HEXAGONSCREW | Hexagon screw | |
| 0636010172 | 0636010172 | Hexagon screw | |
| 050 | HEX.CAPSCREW | Hex. Cap screw | |
| 0636010172 | 0636010172 | Hexagon screw | |
| 042 | HEX.CAPSCREW | Hex. Cap screw | |
| 030 | 0091301164 | Housing II | |
| 020 | 1313301038 | Gasket | |
| 014 | 0501398708 | Screw plug | |
| 0736303005 | 0736303005 | Screw plug | |
| 012 | SCREWPLUG | SCREW PLUG | |
| 0636010205 | 0636010205 | Hex cap screw | |
| 070 | MAGNETICSCREWPLUG | Magnetic screw plug | |
| 150 | SWITCH | SWITCH | |
| 140.020 | 0634801074 | Sealing ring | |
| 140.010 | 0636302045 | Пробка с резьбой | |
| 140 | SCREWPLUG | SCREW PLUG | |
| 130 | 0091201013 | Spray tube | |
| 120 | 0750131001 | Filter | |
| 0736303005 | 0736303005 | Screw plug | |
| 110 | SCREWPLUG | SCREW PLUG | |
| 0736303005 | 0736303005 | Screw plug | |
| 090 | SCREWPLUG | SCREW PLUG | |
| 070.020 | 0634801321 | Sealing ring | |
| 070.010 | 0501398755 | Magnetic screw plug | |
| 010 | 0091301136 | Housing I |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
