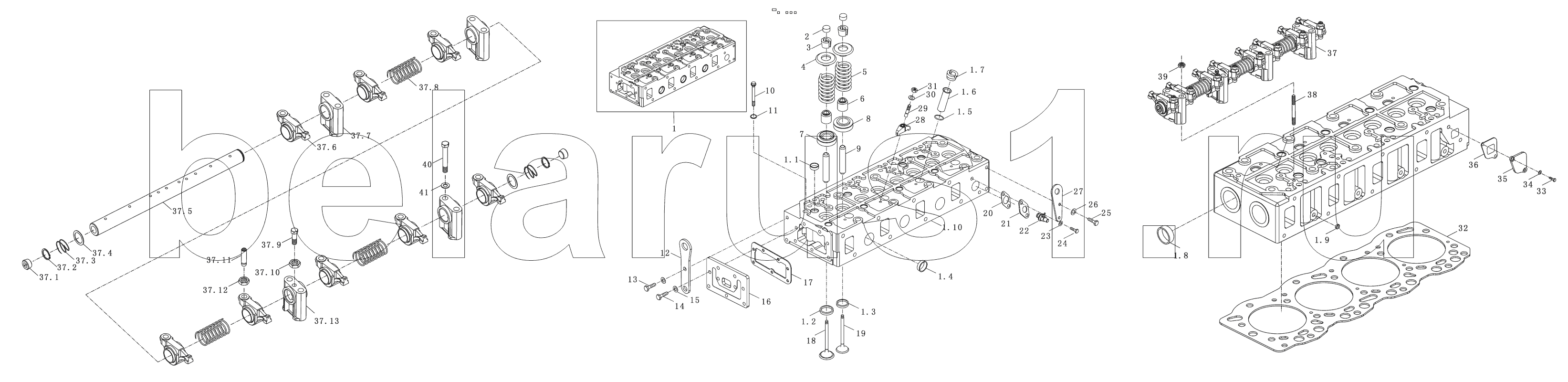

Каталог запасных частей к технике: YTO LR4M5-T73EXA-U2. Cylinder Head Assy
1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.10
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37.1
37.2
37.3
37.4
37.5
37.6
37.7
37.8
37.9
37.10
37.11
37.12
37.13
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4RB.010100-1 | Cylinder head mechanical assembly | |
| 1.1 | Q/YT031.2 | Bowl plug | |
| 1.2 | R.010102Y | Seat ring, inlet valve | |
| 1.3 | R.010103 | Seat ring, exhaust valve | |
| 1.4 | R.010106 | Bowl plug 35 | |
| 1.5 | YTQ020.2-1992 | O-sealing ring | |
| 1.6 | LR.010109 | Sleeve, fuel injector | |
| 1.7 | LR.010111 | Injector stud bolt | |
| 1.8 | R.010105 | Bowl plug 42 | |
| 1.9 | QC/T378 | Screw plug | |
| 1.10 | 4RB.010101-1 | Cylinder head | |
| 2 | R.010006 | Valve cap | |
| 3 | R.010005 | Valve collet | |
| 4 | R.010004Y | Retainer, valve spring | |
| 5 | R.010003Y | Valve spring | |
| 6 | R.010019YA | Oil seal, valve | |
| 7 | R.010015Y-FE | Spacer, inlet valve spring | |
| 8 | R.010300Y | Valve rotocap assembly | |
| 9 | R.010104FE | Valve guide | |
| 9 | R.010104B | Valve guide | |
| 10 | RHZL.010007-1 | Bolt, cylinder head | |
| 11 | R.010012 | Washer, cylinder head bolt | |
| 12 | 6RT8.010009-FE | Front hoisting ear | |
| 13 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 14 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 15 | GB/T93 | Spring washer 8 | |
| 16 | R.010023 | Cap, front water outlet hole | |
| 17 | R.010024 | Gasket, Cap | |
| 18 | R.010001Y | Inlet valve | |
| 19 | R.010002 | Exhaust valve | |
| 20 | R.010013 | Gadket, water return adapter | |
| 21 | 1002/1202.81A.101 | Install plate, water valve of heater | |
| 22 | WN4003-F-100FE | Heater inlet valve | |
| 23 | GB/T93 | Spring washer 8 | |
| 24 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 25 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 26 | GB/T93 | Spring washer 8 | |
| 27 | R.010009 | Hoisting ear | |
| 28 | R.010008 | Clamp plate, injector | |
| 29 | R.010018 | Stud, clamp plate of injector | |
| 30 | GB/T849 | Spherical washer 8 | |
| 31 | GB52 | Nut M8-8-Zn.D | |
| 32 | 4RBW.010011B | Gasket, Cylinder head | |
| 33 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 34 | GB/T93 | Spring washer 8 | |
| 35 | RT.010021FE | Side outlet cover | |
| 36 | R.010024 | Gasket, Cap | |
| 37 | 4R.010200 | Rocker shaft assembly | |
| 37.1 | LR.010209 | Screw plug Z3/8" | |
| 37.2 | GB894.1 | Retaining ring | |
| 37.3 | R.010203 | Spring, roeker shaft end | |
| 37.4 | R.010204 | Washer, rocker shaft | |
| 37.5 | 4R.010201 | Rocker shaft | |
| 37.6 | R.010250 | Rocker arm | |
| 37.7 | R.010206 | Seat, rocker shaft | |
| 37.8 | R.010202 | Spring, rocker shaft | |
| 37.9 | GB/T75 | Screw | |
| 37.10 | GB/T6175 | Nut | |
| 37.11 | R.010208 | Adjusting screw rocker arm | |
| 37.12 | GB/T6176 | Nut | |
| 37.13 | R.010205 | Seat, rocker shaft | |
| 38 | R.010016-1 | Stud, rocker shaft seat | |
| 39 | GB/T6175 | Nut | |
| 40 | GB22 | Bolt M10x85-8.8-Zn.D | |
| 41 | GB/T848 | Washer 10-140HV-Zn.D |
