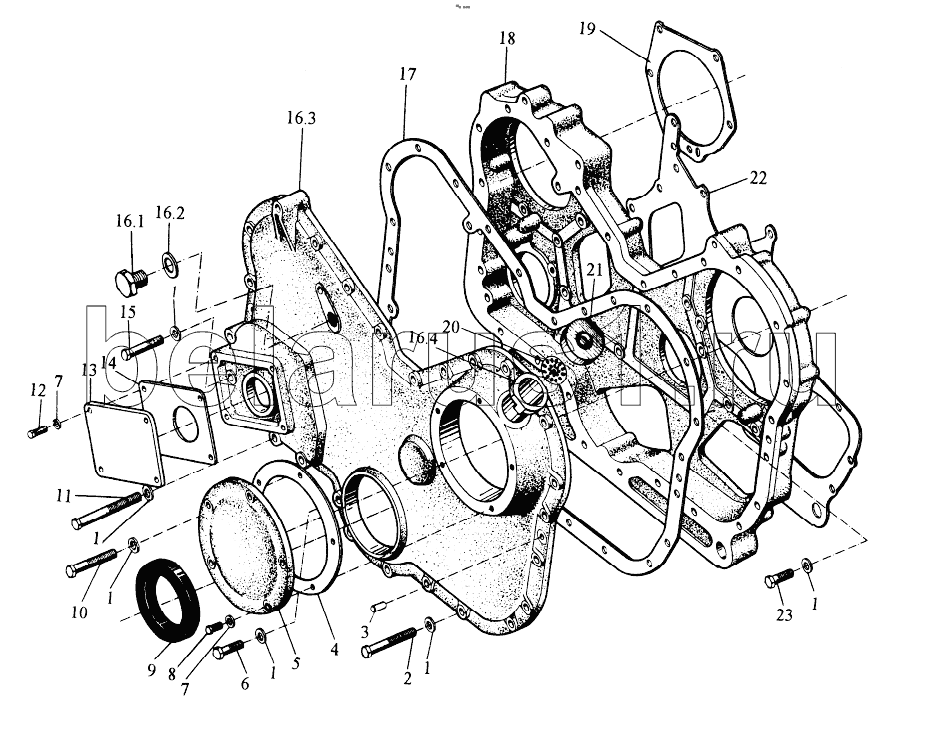

Каталог запасных частей к технике: YTO 4105. Timing Gear Chamber Assy
4RTF-080000
1
1
1
1
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16.1
16.2
16.3
16.4
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4RTF-080000 | 4RTF-080000 | Timing gear chamber assy | |
| 1 | GB848-76-Zn-D | Washer | |
| 2 | GB22-76-Zn-D | Bolt | |
| 3 | GB119-76 | Pin | |
| 4 | R080005 | Gasket, inspection hole cover | |
| 5 | R080004 | Inspection hole cover | |
| 6 | GB21-76-Zn-D | Bolt | |
| 7 | GB848-76-Zn-D | Washer | |
| 8 | GB21-76-Zn-D | Bolt | |
| 9 | LR080150 | Oil sealing | |
| 10 | GB22-76-Zn-D | Bolt | |
| 11 | GB22-76-Zn-D | Bolt | |
| 12 | GB21-76-Zn-D | Bolt | |
| 13 | RT060028 | Cap board | |
| 14 | LRT060029 | Gasket, hydraulic pump | |
| 15 | GB22-76-Zn-D | Bolt | |
| 16 | 3RTF-080100A | Cover assembly, timing gear chamber | |
| 16.1 | 3RTF-080105 | Screw plug | |
| 16.2 | GB95-76 | Washer | |
| 16.3 | 3RTF-080101 | Cover assembly, timing gear chamber | |
| 16.4 | R080102-1 | Oil filler | |
| 17 | RT080003 | Gasket, timing gear chamber cover | |
| 18 | RT080001-1 | Timing gear chamber | |
| 19 | R080011 | Sealing plate, air compressor | |
| 20 | R080008 | Screen | |
| 21 | R080015 | Cover, oil filler | |
| 22 | RT080002 | Gasket, timing gear chamber | |
| 23 | GB21-76-Zn-D | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
