Каталог запасных частей к технике: Weichai R6160. Hand Oil Pump Assembly
1
2
3
4
4
4
4
5
5
6
7
7
8
9
10
11
11-1
11-2
11-3
12
13
14
14-1
14-2
14-3
14-4
14-5
15
15
B1
B2
B3
В4
В5
В6
В6
В7
В7
В8
В8
В9
В10

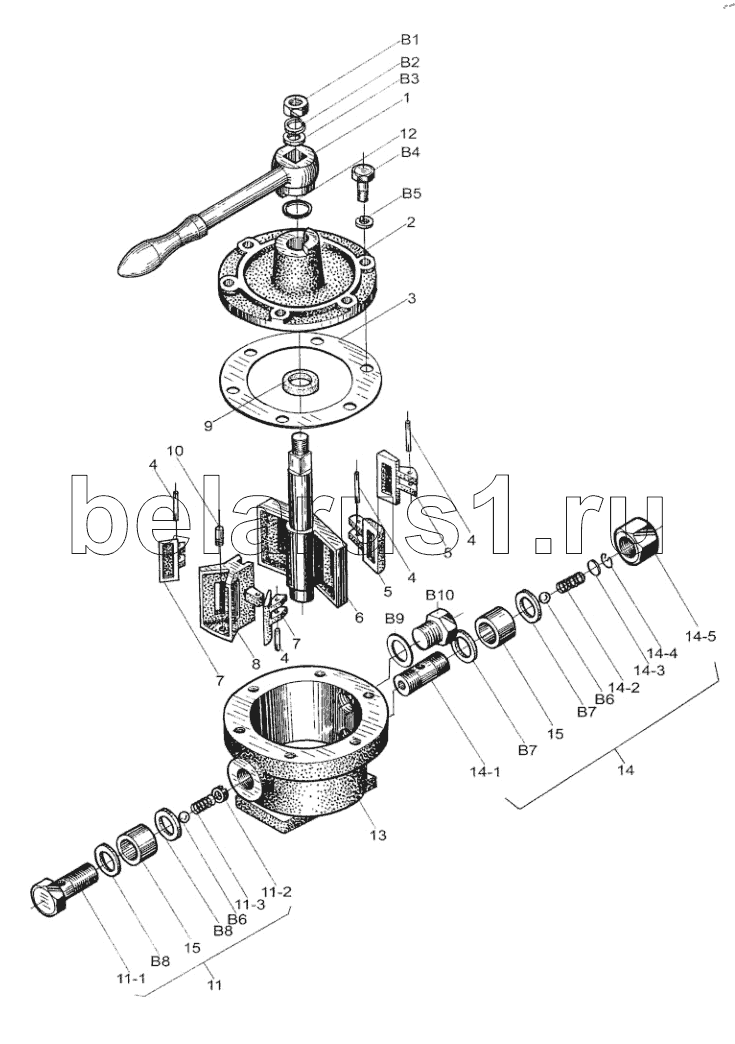

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 6160Z.84.00 | 6160Z.84.00 | Hand oil pump assembly | |
| 1 | 200.23.18 | Handle | |
| 2 | 200.23.17 | Pump cover | |
| 3 | 200.23.13 | Gasket | |
| 4 | 200.23.08 | Cotter pin | |
| 5 | 200.23.12 | Movable valve | |
| 6 | 200.23.11 | Movable valve seal | |
| 7 | 200.23.19 | Stationary valve | |
| 8 | 200.23.07 | Stationary valve seat | |
| 9 | 200.23.09 | Felt | |
| 10 | 200.23.14A | Pin | |
| 11 | 160Z.84.10 | Oil inlet pipe screw sub-assy | |
| 11-1 | 160Z.84.10.01 | Oil inlet pipe screw | |
| 11-2 | 160Z.84.10.03 | Spring seat | |
| 11-3 | 160Z..84.10.03 | Spring | |
| 12 | 200.23.03 | Ring | |
| 13 | 160Z.84.01 | Oil pump body | |
| 14 | 170Z.15.210 | Unidirectional valve sub-assy | |
| 14-1 | 170Z.15.210.01 | Hollow stud | |
| 14-2 | 170Z. 15.210.02 | Spring | |
| 14-3 | 170Z. 15.210.03 | Spring washer | |
| 14-4 | 170Z.15.210.04 | Spring retainer | |
| 14-5 | 170Z. 15.210.05 | Hexagon nut | |
| 15 | 160Z.84.02 | Protecting cap | |
| B1 | M10 GB/T6170-Н-Y | Hexagon nul | |
| B2 | 10 GB/T93 | Spring washer | |
| B3 | Q40110 | Washer | |
| В4 | М8x25 GB/T5783 | Hexagon bolt | |
| В5 | 8GB/T93 | Sping washer | |
| В6 | 13.0000 GB/T308 | Steel ball | |
| В7 | 22JB/T6013 | Washer | |
| В8 | 24JB/T6013 | Washer | |
| В9 | 16JB/T6013 | W asher | |
| В10 | 160A.13.74 | Hexagon plug |
