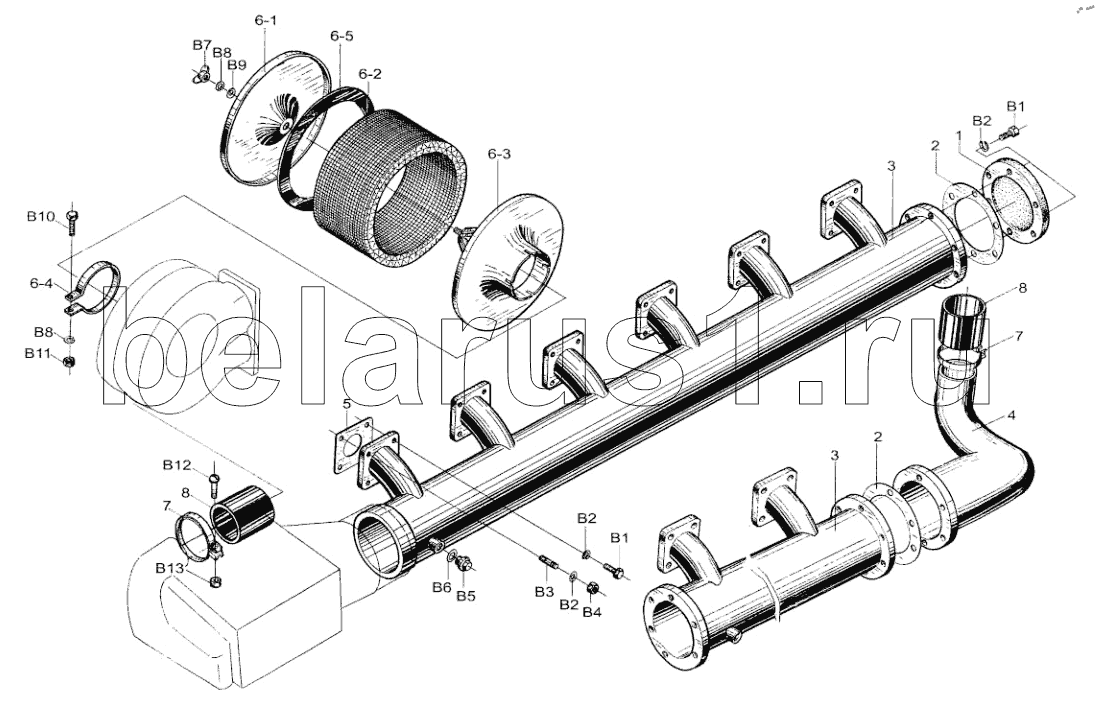

Каталог запасных частей к технике: Weichai R6160. Air Intake Manifold Assembly
1
2
2
3
3
3
3
3
3
3
3
3
3
4
5
6-3
6-4
6-5
7
7
8
8
B1
B1
B2
B2
B2
B3
В4
В5
В6
B7
В8
В8
В9
В10
B11
B12
B13
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 160A.18.09 | End cover | |
| 2 | 160A.18.08 | Washer | |
| 3 | 6160А-11.18А.30 | Mr intake manifold sub-assy | |
| 3 | 6160ZC5.18.80 | Air inlake manifold sub-assy | |
| 3 | 616OZC1.18.80A | Air inlake manifold sub-assy | |
| 3 | 6160A-18.18.30 | Air inlake manifold sub-assy | |
| 3 | 616018160300 | Air inlake manifold sub-assy | |
| 4 | 616018110001 | Pipe | |
| 4 | 616018120001 | Pipe | |
| 5 | 160А.18.05 | Gasket | |
| 5 | 160Z.8.05 | Gaskel | |
| 6 | 616018010100 | Air cleaner sub-assy | |
| 6-1 | 160А.18.50.01 | Outer cover | |
| 6-2 | 160Z.18.50.09 | Screen | |
| 160Z.18.50.11 | 160Z.18.50.11 | Screen | |
| 160Z.18.50.12 | 160Z.18.50.12 | Screen | |
| 160Z.18.50.13 | 160Z.18.50.13 | Outer ring | |
| 160Z.18.50.14 | 160Z.18.50.14 | Inner ring | |
| 6-3 | 160A.18.20.04 | Plug | |
| 6-3 | 160Z.18.50.07 | Screen | |
| 160Z.18.50.08 | 160Z.18.50.08 | Enter, cover | |
| 5GB/97.1-140HY-Zn-D | 5GB/97.1-140HY-Zn-D | Washer | |
| 5x8 GB/T867 | 5x8 GB/T867 | Rivet | |
| 6-4 | 160Z.18.50.04 | Pipe clamp | |
| 6-5 | 160Z.18.50.06 | Seal gasket | |
| 7 | 160A.18.06 | Pipe clamp | |
| 8 | 160А.18.11А | Rubber pipe | |
| B1 | М10х25 GB/T5783 | Hexagon bolt | |
| B2 | 10GB/T93 | Spring washer | |
| B3 | М10х25 GB/T898-8-8-Н-Y | Stud | |
| В4 | M10 GB/T6170-H-Y | Hexagon nut | |
| В5 | 90003960005 | Hexagon plug | |
| В6 | 160A.13.36 | Copper-asbestos washer | |
| B7 | 90012040002 | Wing nut | |
| В8 | 8GB/T93 | Sping washer | |
| В9 | 8GB/T97-1-140HV-Zn-D | Washer | |
| В10 | М8x35GB/T5783 | Hexagon holt | |
| B11 | 90012210023 | Hexagon nut | |
| B12 | M6x30 | Screw | |
| B13 | М6 GB/T6170-H-Y | Hexagon nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
