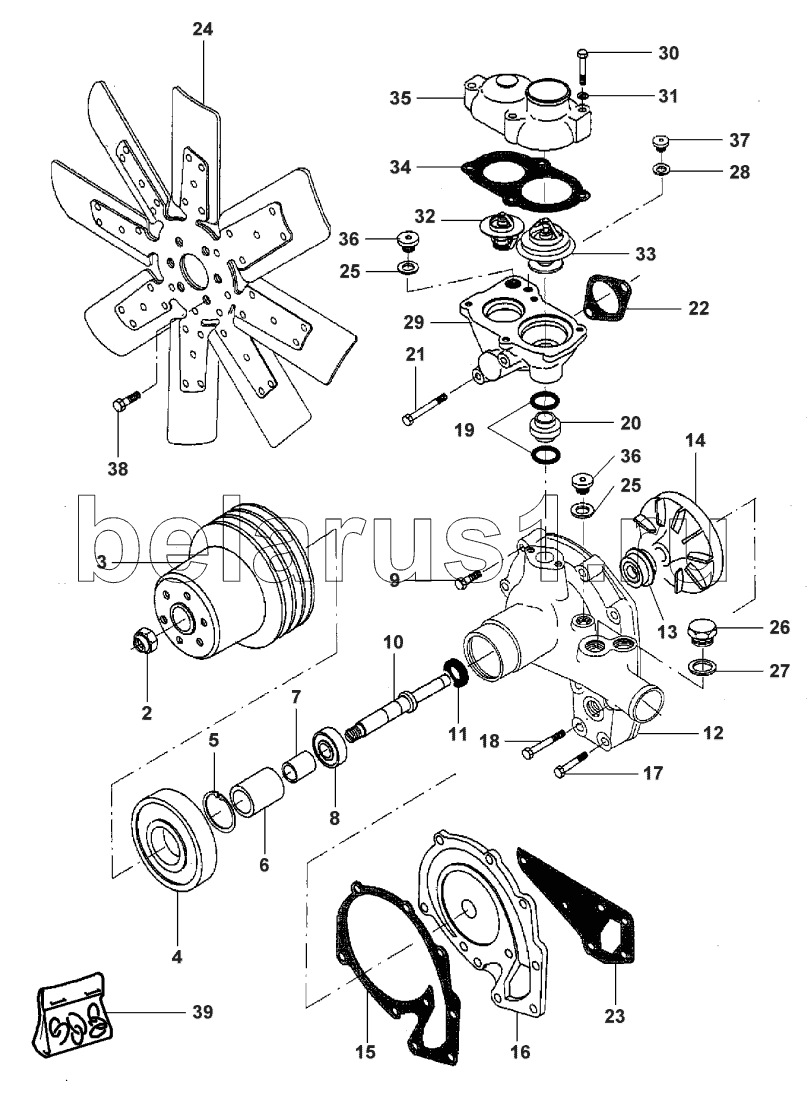

Каталог запасных частей к технике: Valmet 634 DSBIL. WATER PUMP, THERMOSTAT AND HEAT EXCHANGER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | V836859717 | Pump | |
| 2 | V510611602 | Nut | |
| 3 | V836859716 | Pulley | |
| 4 | V610060124 | Bearing | |
| 5 | V617330052 | Circlip | |
| 6 | V836336318 | Sleeve | |
| 7 | V836336317 | Spacer | |
| 8 | V610063044 | Bearing Assy | |
| 9 | V529801420 | Screw | |
| 10 | V836847467 | Shaft | |
| 11 | V614102636 | Gasket | |
| 12 | Ram | Ram | |
| 13 | V835339425 | Gasket | |
| 14 | V836846303 | Impeller | |
| 15 | V836846304 | Gasket | |
| 16 | V836846302 | Flange | |
| 17 | V529801440 | Screw | |
| 18 | V529801460 | Screw | |
| 19 | V614602950 | O-Ring | |
| 20 | V836855150 | Pipe | |
| 21 | V529801550 | Screw | |
| 22 | V836646393 | Gasket | |
| 23 | V836846305 | Gasket | |
| 24 | V836859665 | Fan | |
| 25 | V615881822 | Seal | |
| 26 | V640305027 | Plug | |
| 27 | V615892732 | O-Ring | |
| 28 | V615881418 | Seal | |
| 29 | V836847888 | Housing | |
| 30 | V529801550 | Screw | |
| 31 | V500950800 | Washer | |
| 32 | V836015156 | Thermostat | |
| 33 | V836352903 | Thermostat | |
| 34 | V836329632 | Gasket | |
| 35 | V836329631 | Cover | |
| 36 | V640325018 | Plug | |
| 37 | V640325014 | Plug | |
| 38 | V528801810 | Screw | |
| 39 | V836340627 | Kit, Repair |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
