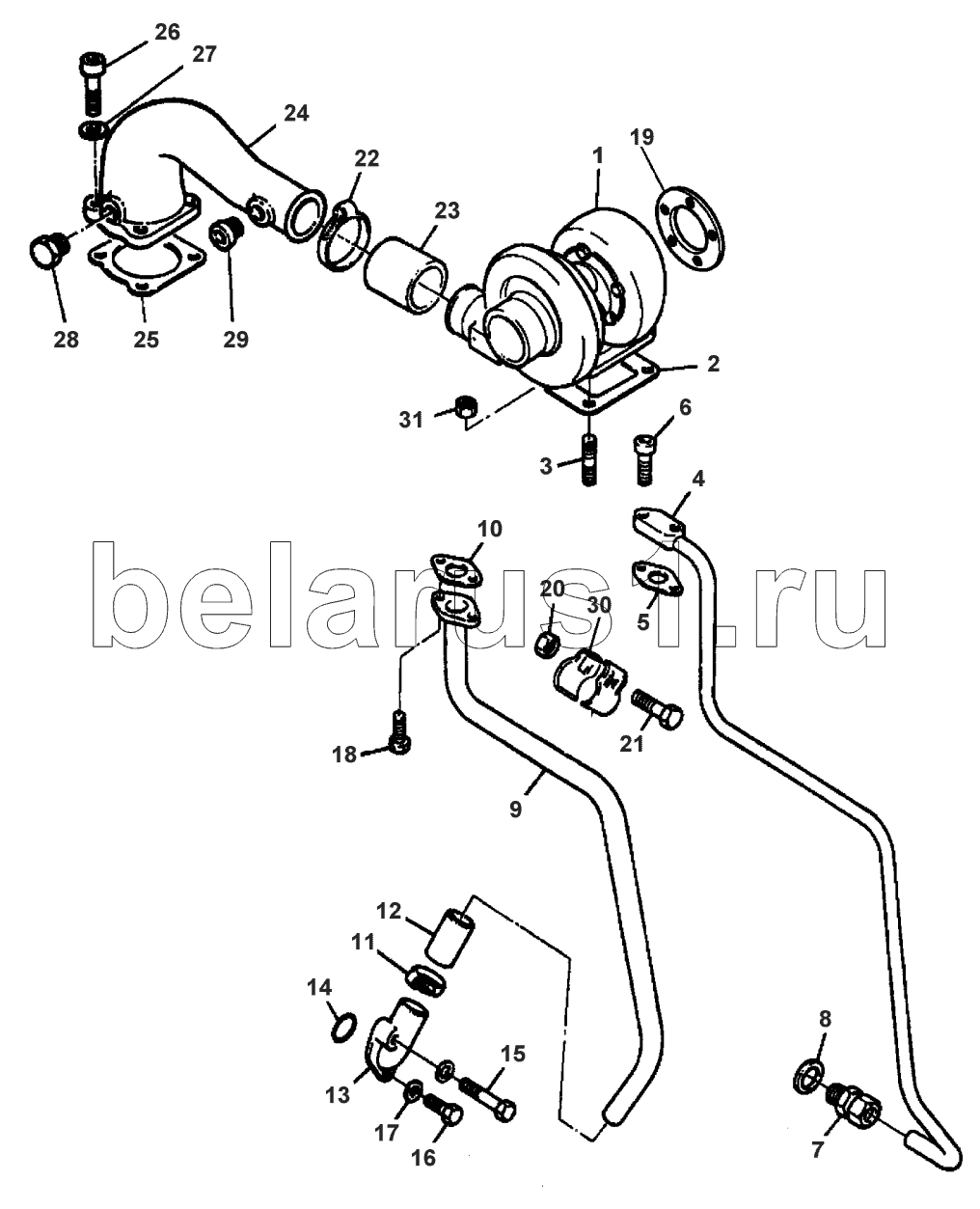

Каталог запасных частей к технике: Valmet 612 DSL. TURBOCHARGER-PIPES
1
1
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
14
15
15
16
17
18
19
20
20
20
21
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | V836339401 | Turbocharger | |
| 1 | V836339735 | Turbocharger | |
| 1 | V836340375 | Turbocharger | |
| 2 | V836316726 | Gasket | |
| 3 | V546801780 | Stud | |
| 4 | V836338621 | Pipe | |
| 5 | V836308344 | Joint | |
| 6 | V581804630 | Screw | |
| 7 | V641086012 | Union | |
| 8 | V615881620 | Seal | |
| 9 | V836338649 | Pipe | |
| 10 | V836324580 | Joint | |
| 11 | V602088532 | Clamp | |
| 11 | V602087528 | Clamp | |
| 12 | V835324317 | Hose | |
| 13 | V836346405 | Tube | |
| 13 | V836324216 | Tube | |
| 14 | V614603230 | О Ring | |
| 14 | V614602430 | О-Ring | |
| 15 | V529801480 | Screw | |
| 15 | V529801470 | Screw | |
| 16 | V528801380 | Screw | |
| 17 | V500950800 | Washer | |
| 18 | V528801380 | Screw | |
| 19 | V836338985 | Gasket | |
| 20 | V504600602 | Nut | |
| 20 | V510600602 | Nut | |
| 21 | V529801130 | Screw | |
| 21 | V529801112 | Screw | |
| 22 | V602061668 | Clamp | |
| 23 | V836119992 | Hose Flexible | |
| 24 | V836324886 | Manifold | |
| 25 | V836324493 | Joint | |
| 26 | V581804620 | Screw | |
| 27 | V500950800 | Washer | |
| 28 | V836114958 | Plug | |
| 29 | V640305012 | Plug | |
| 30 | V835324324 | Clamp | |
| 31 | V504801002 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
