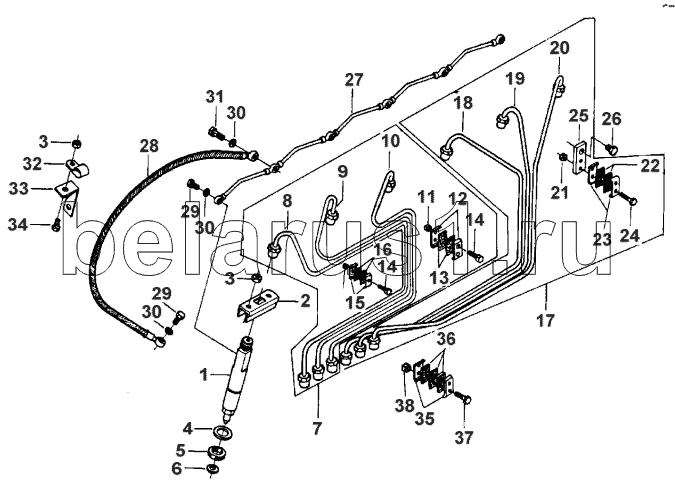

Каталог запасных частей к технике: Valmet 611 DSL. FUEL PIPINGS
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | V835331100 | Atomiser | |
| 2 | V835331103 | Retainer | |
| 3 | V504800800 | Nut | |
| 4 | V835336275 | Washer | |
| 5 | V835336276 | Seal | |
| 6 | V899901495 | Washer | |
| 7 | V836338422 | Tubing | |
| 8 | V836338416 | Injection Pipe | |
| 9 | V836338417 | Injection Pipe | |
| 10 | V836338418 | Injection Pipe | |
| 11 | V504600502 | Nut | |
| 12 | V836324446 | Holding Fixture | |
| 13 | V836324443 | Rubber Strap | |
| 14 | V528800802 | Screw | |
| 15 | V836324445 | Clamp | |
| 16 | V836324442 | Spacer | |
| 17 | V836338423 | Tubing | |
| 18 | V836338419 | Injection Pipe | |
| 19 | V836338420 | Injection Pipe | |
| 20 | V836338421 | Injection Pipe | |
| 21 | V504600502 | Nut | |
| 22 | V836324443 | Rubber Strap | |
| 23 | V836324446 | Holding Fixture | |
| 24 | V528800802 | Screw | |
| 25 | V836336921 | Support | |
| 26 | V528801750 | Screw | |
| 27 | V836355330 | Tube | |
| 28 | V835336942 | Tube | |
| 29 | V835331289 | Screw | |
| 30 | V615870710 | Seal | |
| 31 | V835336943 | Screw | |
| 32 | V602060612 | Clamp | |
| 33 | V836124941 | Support | |
| 34 | V528801360 | Screw | |
| 35 | V836324446 | Holding Fixture | |
| 36 | V836324443 | Rubber Strap | |
| 37 | V529800822 | Screw | |
| 38 | V504600502 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
