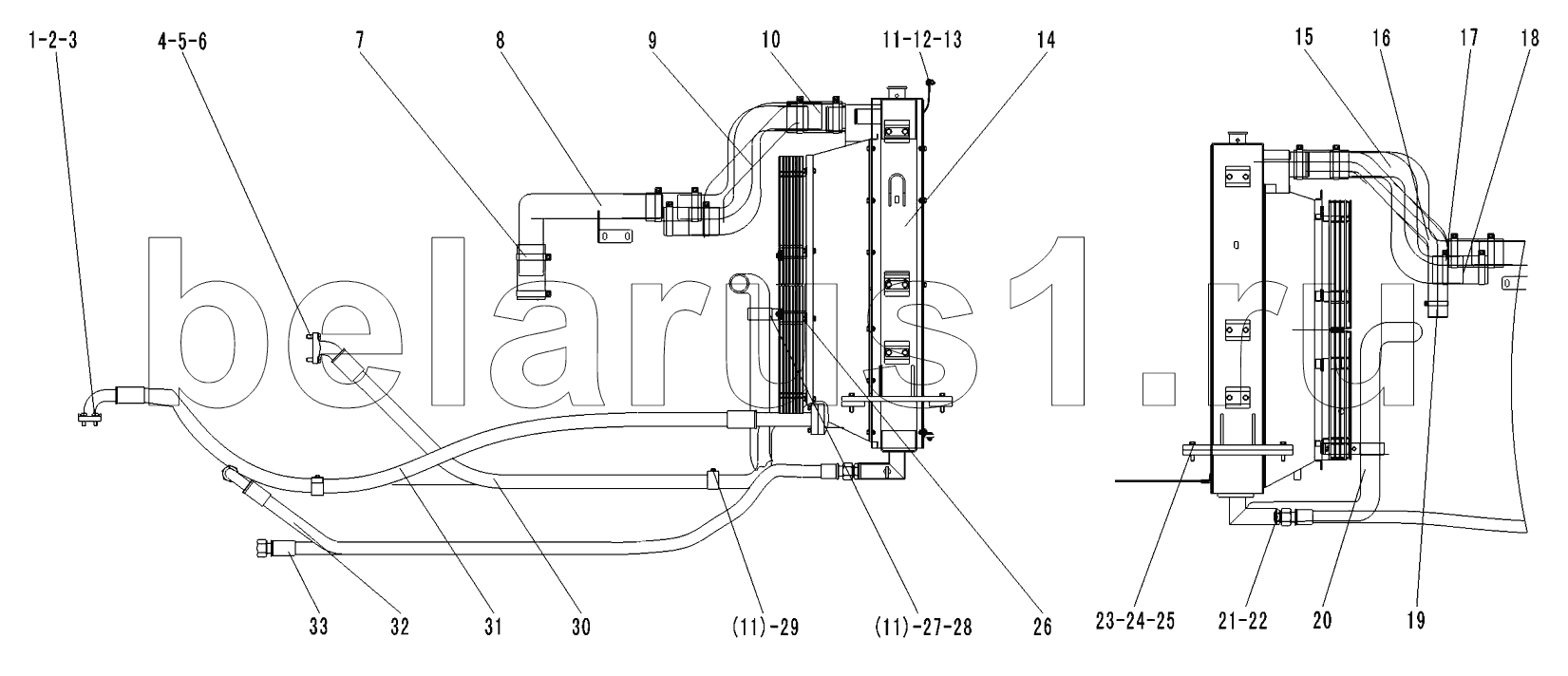

Каталог запасных частей к технике: SDLG BF6M1013. RADIATOR ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000475 | BOLT | |
| 2 | 4030000029 | O-RING | |
| 3 | 4041000027 | FLANGE | |
| 4 | 4011000477 | BOLT | |
| 5 | 4030000130 | O-RING | |
| 6 | 4041000011 | FLANGE | |
| 7 | 4110000782 | Hoop | |
| 8 | 29030012811 | Medium-cooling intake pipe assembly | |
| 9 | 29030013731 | Intercooled admission pipe | |
| 10 | 29030010341 | Pipe | |
| 11 | 4011000458 | BOLT | |
| 12 | 29030009721 | RUBBER PLATE | |
| 13 | 29030009601 | PRESS PLATE | |
| 14 | 4110001037 | Radiator | |
| 15 | 29030013741 | Intercooled escape pipe | |
| 16 | 29030012971 | Radiator inlet pipe | |
| 17 | 4019000074 | Clamp | |
| 18 | 29030012861 | Outlet connecting pipe | |
| 19 | 4017000018 | CLAMP | |
| 20 | 29030012871 | Radiator to engine water pipe | |
| 21 | 29030008271 | FITTING | |
| 22 | 4015000073 | WASHER | |
| 23 | 4011000027 | BOLT GB5783-M12x65EpZn-8.8 | |
| 24 | 4015000026 | WASHER | |
| 25 | 4015000168 | WASHER | |
| 26 | 4011000447 | BOLT | |
| 27 | 29030012891 | Bracket | |
| 28 | 29030012901 | Clamp | |
| 29 | 29030000041 | CLAMP | |
| 30 | 29030000021 | HOSE | |
| 31 | 29030009531 | INLET HOSE OF RADIATOR | |
| 32 | 4041001152 | Hose | |
| 33 | 4041001037 | SOFT HOSE LGB164-014235 |
