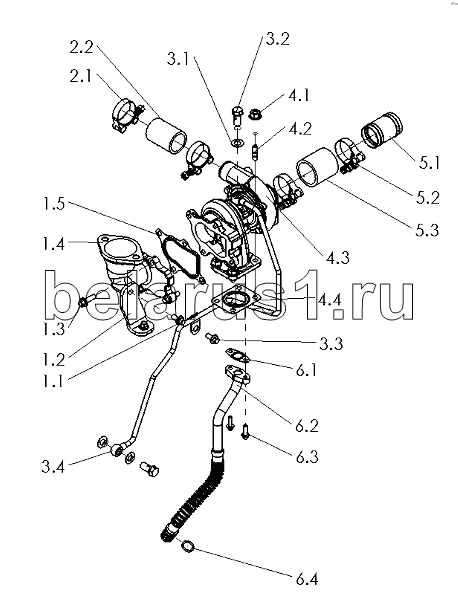

Каталог запасных частей к технике: Raywin YC4D2455-D39. R7000-1118000 Turbocharger Assembly
1.1
1.2
1.3
1.4
1.5
2.1
2.2
3.1
3.2
3.3
3.4
4.1
4.3
4.2
4.4
5.1
5.2
5.3
6.1
6.2
6.3
6.4
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | R7000-1118500 | Turbine outlet parts | |
| 1.1 | YC3-0820TF2 | Bolt | |
| 1.2 | R7000-1118542A | Support | |
| 1.3 | YC3-0825TF2 | Bolt | |
| 1.4 | R7000-1118502A | After turbinepipe | |
| 1.5 | R3000-1118003 | Gasket | |
| 2 | R7000-1118600 | Compressor outlet parts | |
| 2.1 | Q67645F32 | Hoop | |
| 2.2 | R7000-1118090 | Connection pipe | |
| 3 | R7000-1118200 | Oil inlet pipe parts | |
| 3.1 | Q/YC901-3C12T4F | Washer | |
| 3.2 | Q/YC901-1C12125F32 | Bolt | |
| 3.3 | Q1840812T1F32 | Bolt | |
| 3.4 | R7000-1118240A | Oil inlet pipe | |
| 4 | R7000-1118800 | Turbocharger parts | |
| 4.1 | R3000-1118008 | Nut | |
| 4.3 | R7000-1118100-752 | Turbocharger | |
| 4.2 | R3000-1118001 | Double end studs | |
| 4.4 | R3000-1118002 | Gasket | |
| 5 | R3000-1118700 | Compressor inlet parts | |
| 5.1 | R3000-1118701 | Connection pipe | |
| 5.2 | Q67657F32 | Hoop | |
| 5.3 | R3000-1118011 | Connection pipe | |
| 6 | R7000-1118300 | Oil return pipecomponent | |
| 6.1 | G2C00-1118301 | Oil return pipe gasket | |
| 6.2 | R7000-1118340 | Oil return pipecomponent | |
| 6.3 | Q1840620TF2 | Bolt | |
| 6.4 | YC208-B01700F | O-Ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
