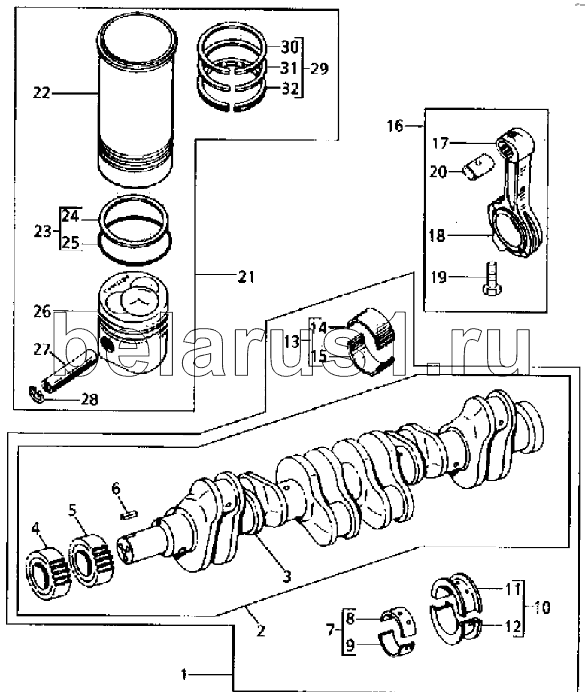

Каталог запасных частей к технике: Perkins 1006-6T. CRANKSHAFT, PISTONS AND CONNECTING RODS
1
2
3
4
5
6
7
7
7
7
7
8
9
10
10
10
10
11
12
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Kit | Kit | |
| 2 | 1821981C91 | Crankshaft | |
| 3 | Crankshaft | Crankshaft | |
| 4 | 675364C1 | Gear | |
| 5 | 1820299C1 | Gear | |
| 6 | 17135R1 | PIN | |
| 7 | 1822321C91 | Main bearing | |
| 7 | 1822490C91 | Kit | |
| 7 | 1822491C91 | Kit | |
| 7 | 1822492C91 | Kit | |
| 8 | Bearingshell | Bearing shell | |
| 9 | Bearingshell | Bearing shell | |
| 10 | 1822379C91 | Main bearing | |
| 10 | 1822494C91 | Kit | |
| 10 | 1822495C91 | Kit | |
| 10 | 1822496C91 | Kit | |
| 11 | Bearingshell | Bearing shell | |
| 12 | Bearingshell | Bearing shell | |
| 13 | 1822488C91 | Kit | |
| 13 | 1822487C91 | Kit | |
| 13 | 1822486C91 | Kit | |
| 13 | 1822389C91 | Kit | |
| 14 | Bearing shell | Bearing shell | |
| 15 | Bearing shell | Bearing shell | |
| 16 | 1818597C92 | Conrod | |
| 17 | Conrod | Conrod | |
| 18 | Bearingcap | Bearing cap | |
| 19 | 1817537C1 | Bolt | |
| 20 | 1818598C1 | Bush | |
| 21 | Kit | Kit | |
| 22 | Liner | Liner | |
| 23 | Kit | Kit | |
| 24 | Seal | Seal | |
| 25 | O-ring | O-ring | |
| 26 | Piston | Piston | |
| 27 | Gudgeonpin | Gudgeon pin | |
| 28 | Circlip | Circlip | |
| 29 | Kit | Kit | |
| 30 | Pistonring | Piston ring | |
| 31 | Pistonring | Piston ring | |
| 32 | Pistonring | Piston ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
