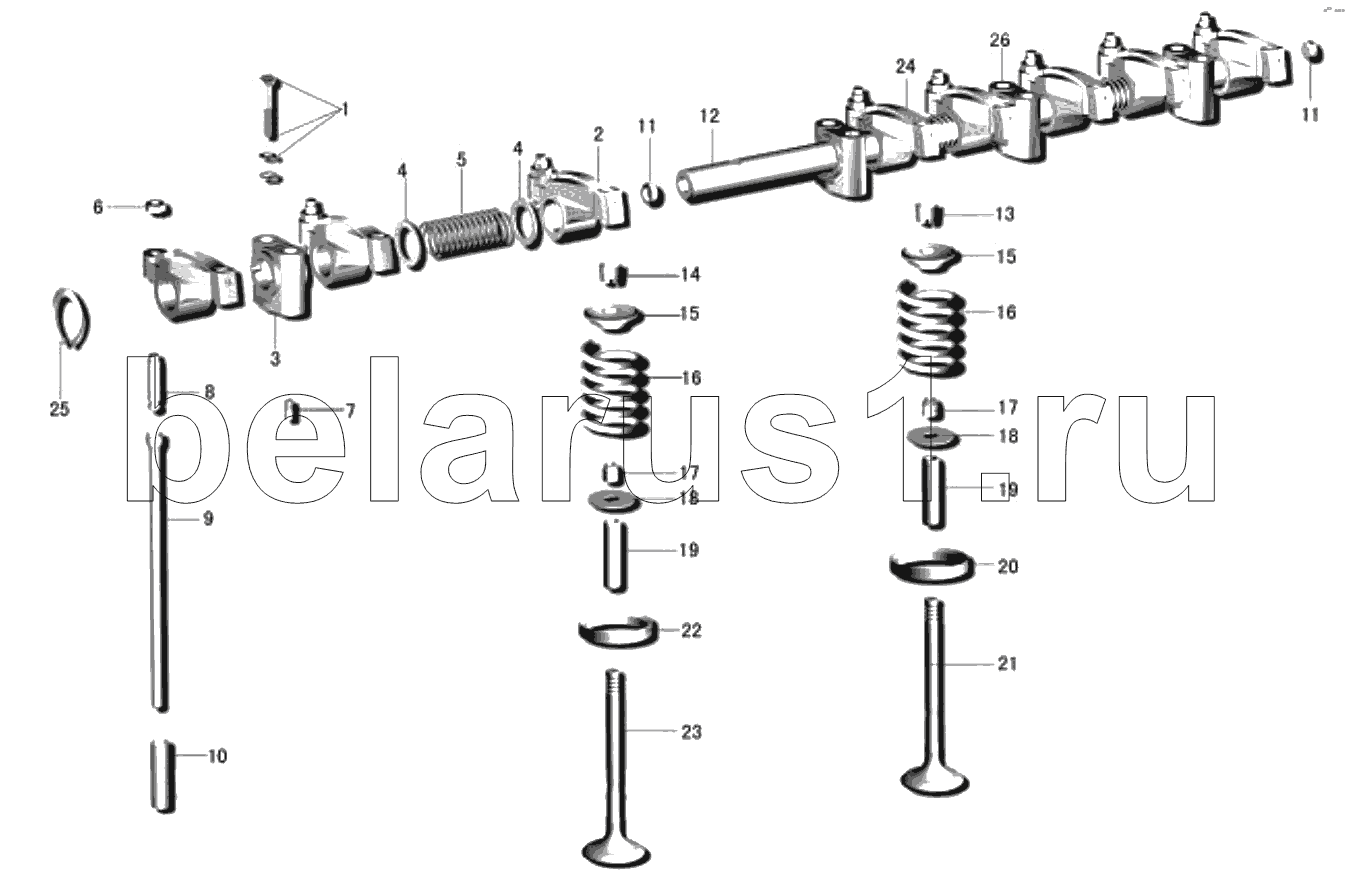

Каталог запасных частей к технике: FAW CA498. Valve mechanism
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
15
16
16
17
17
18
18
19
19
20
21
22
23
24
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CQ1460860 | Combination bolt | |
| 2 | 1007155-X2 | Exhaust valve rocker arm assembly | |
| 3 | 1007091-X2 | Positioning rocker brackets | |
| 4 | 1007099-X2 | Plug | |
| 5 | 1007097-X2 | Intermediate positioning spring | |
| 6 | 1007159-X2 | Locking nut | |
| 7 | GB78-85 | Bolt | |
| 8 | 1007158-X2 | Adjusting bolt | |
| 9 | 1007051AX2A1 | Putt | |
| 10 | 1007061AX2 | Tappet | |
| 11 | CQ/T-388-12-DZn13 | Bowl type plug | |
| 12 | 1007131-X2 | Rocker shaft | |
| 13 | 1007028-X2 | Lock-intake valve | |
| 14 | 1007029-B1 | Lock-exhaust valve | |
| 15 | 1007022-X2 | Valve spring seat | |
| 16 | 1007021-X2 | Valve spring | |
| 17 | 1007035-X2 | Oil seal assembly-valve guide | |
| 18 | 1007024-X2 | Valve spring seat gasket | |
| 19 | 1007032-X2 | Intake & exhaust valve guide | |
| 20 | 1007081-X2A1 | Intake valve seat | |
| 21 | 1007011-X2 | Intake valve | |
| 22 | 1007082-X2A1 | Exhaust valve seat | |
| 23 | 1007012-X2 | Exhaust valve | |
| 24 | 1007145-X2 | Intake valve rocker arm assembly | |
| 25 | Q43120 | Circlip | |
| 26 | 1007092-X2 | Rocker shaft intermediate bracket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
