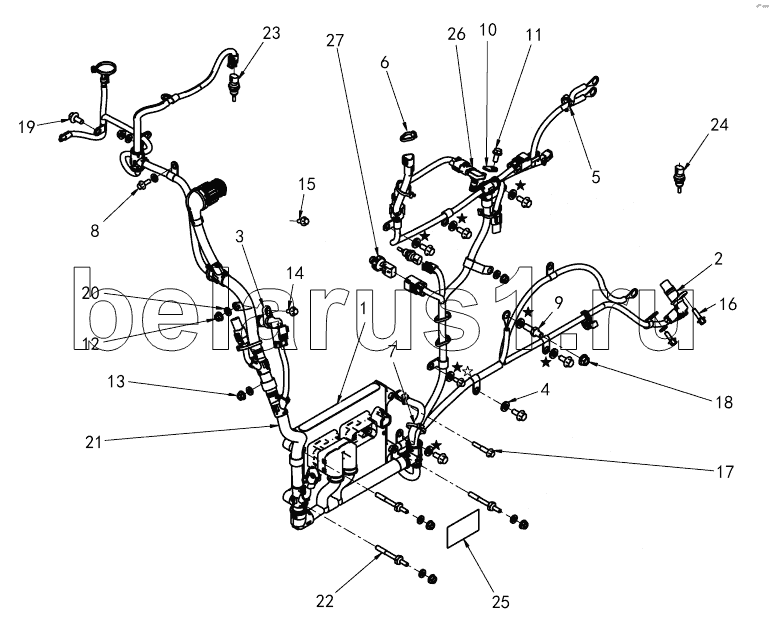

Каталог запасных частей к технике: DCEC ISZ450 41. Engine control module
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | C4995445 | MODULE, ELECTRONIC CONTRO | |
| 2 | C2872279 | SENSOR, POSITION | |
| 3 | C2872279 | SENSOR, POSITION | |
| 4 | C3036460 | WASHER, SPRING | |
| 5 | C3062329 | CLAMP, WIRE TIE | |
| 6 | C3062329 | CLAMP, WIRE TIE | |
| 7 | C3062329 | CLAMP, WIRE TIE | |
| 8 | C3093775 | SCREW, HEX FLANGE HEAD CA | |
| 9 | C3681386 | SCREW, STUDDED HEXAGON CA | |
| 10 | C3684241 | BRACE, RETAINING | |
| 11 | C3821783 | SCREW, CAPTIVE WASHER CAP | |
| 12 | C3900589 | NUT, HEXAGON FLANGE | |
| 13 | C3900589 | NUT, HEXAGON FLANGE | |
| 14 | C3900629 | SCREW, HEX FLANGE HEAD CA | |
| 15 | C3900629 | SCREW, HEX FLANGE HEAD CA | |
| 16 | C3900631 | SCREW, HEX FLANGE HEAD CA | |
| 17 | C3901445 | SCREW, HEX FLANGE HEAD CA | |
| 18 | C3902662 | NUT, HEXAGON FLANGE | |
| 19 | C3903990 | SCREW, HEX FLANGE HEAD CA | |
| 20 | C3910266 | WASHER, SPRING | |
| 21 | C4388985 | HARNESS, ETR CNT MDL WRG | |
| 22 | C4933208 | SCREW, STUDDED HEXAGON CA | |
| 23 | C4954905 | SENSOR, TEMPERATURE | |
| 24 | C4954905 | SENSOR, TEMPERATURE | |
| 25 | C5267513 | DATAPLATE | |
| 26 | D2897334 | SENSOR, PRS TEMPERATURE | |
| 27 | D4921517 | SENSOR, PRESSURE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
