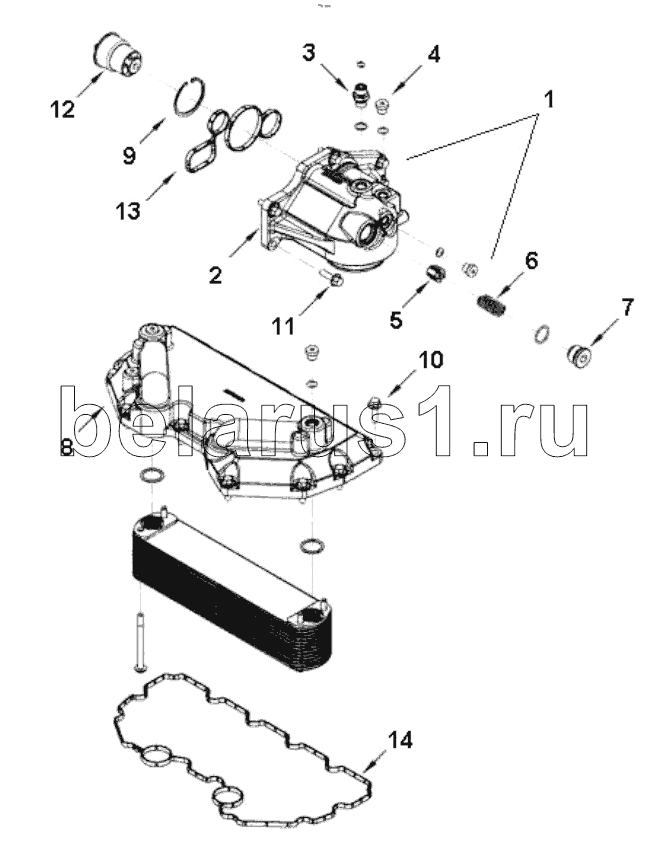

Каталог запасных частей к технике: DCEC 6ZTAA13-G2. LC 2765 Oil cooler set
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | C2870228 | HEAD, LUB OIL FILTER | |
| 2 | C2870229 | HEAD, LUB OIL FILTER | |
| 3 | C3090400 | UNION, MALE | |
| 4 | C3678921 | PLUG, THREADED | |
| 5 | C3820320 | PLUNGER, BYPASS VALVE | |
| 6 | C3882586 | SPRING, COMPRESSION | |
| 7 | C4975311 | PLUG, THREADED | |
| 8 | C2874093 | HOUSING, OIL COOLER | |
| 9 | C3411881 | RING, RETAINING | |
| 10 | C3903112 | SCREW, HEX FLANGE HEAD CA | |
| 11 | C3903112 | SCREW, HEX FLANGE HEAD CA | |
| 12 | C4952629 | THERMOSTAT | |
| 13 | C4960214 | SEAL, OIL FILTER HEAD | |
| 14 | C4975215 | SEAL, OIL COOLER HOUSING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
