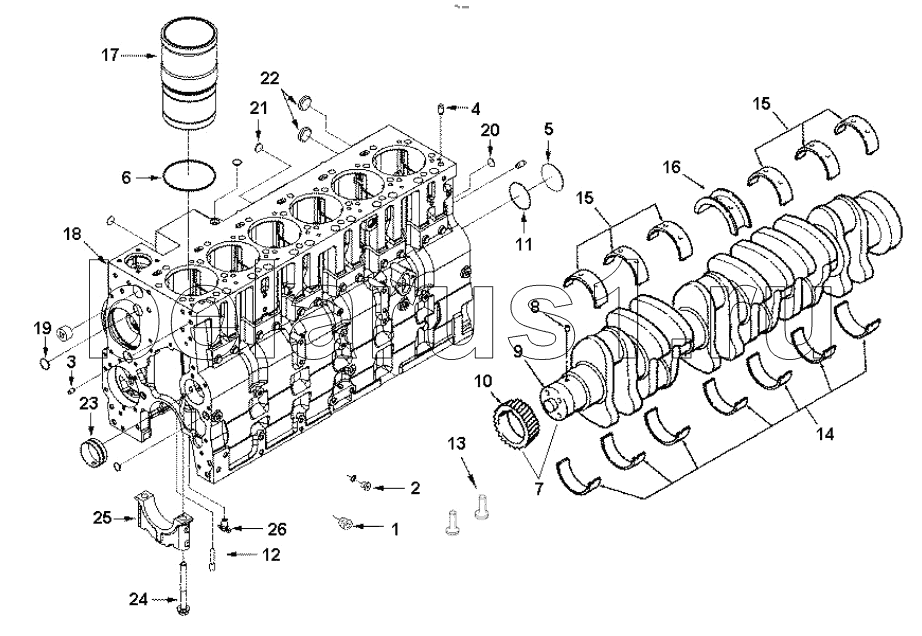

Каталог запасных частей к технике: DCEC 6CTA8.3-C190-II. BB 9110 Cylinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | C3008468 | PLUG, PIPE | |
| 2 | C3678921 | PLUG, THREADED | |
| 3 | C3900257 | DOWEL, PIN | |
| 4 | C3901846 | DOWEL, PIN | |
| 5 | C3901969 | PLUG, EXPANSION | |
| 6 | C3907177 | RECTANGULAR SEALING RING | |
| 7 | C3918986 | CRANKSHAFT, ASSEMBLY TLA | |
| 8 | C3904483 | DOWEL, PIN | |
| 9 | C3917320 | CRANKSHAFT, ENGINE | |
| 10 | C3918776 | GEAR, CRANKSHAFT | |
| 11 | C3926048 | SEAL, O RING | |
| 12 | C3928031 | NOZZLE, PISTON COOLING | |
| 13 | C3931623 | TAPPET, VALVE | |
| 14 | C3944153 | BEARING, MAIN | |
| 15 | C3944158 | BEARING, MAIN | |
| 16 | C3944163 | BEARING, CRANKSHAFT THRUS | |
| 17 | C5318476 | LINER, CYLINDER | |
| 18 | C5260561 | BLOCK, CYLINDER | |
| 19 | C143066 | PLUG, EXPANSION | |
| 20 | C3004258 | PLUG, EXPANSION | |
| 21 | C3900956 | PLUG, EXPANSION | |
| 22 | C3905401 | PLUG, EXPANSION | |
| 23 | C3945329 | BUSHING | |
| 24 | C3970810 | SCREW, HEX FLANGE HEAD CA | |
| 25 | C3970955 | CAP, MAIN BEARING | |
| 26 | CS 923 E | DRAINCOCK |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
